Summary of Contents for KOBE RA-094

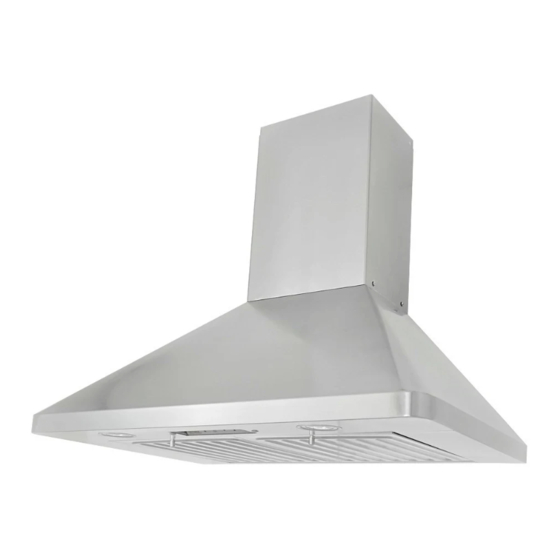

- Page 1 KOBE Brand Range Hood Model No. RA9430SQB RA9436SQB RA-094 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS Important Safety Instructions ... 1 Components of Package ... 3 Installation ... 4 Operation Instructions ... 8 Maintenance ... 9 Specifications ... 10 Measurements & Diagrams ... 11 Parts List ... 12 Circuit Diagram ... -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible f or any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the • burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box Model No. RA9430SQB RA9436SQB KOBE Range Hood – 1 Warranty Registration Card – 1 Instructions Manual – 1 Hood-Mounting Bracket – 2 Screws Package – 1 *Attached to Hood RA9430SQB Baffle Filter –... -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate the length of the installation, please refer to Table 1. (All calculations are measured in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended... - Page 7 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe • from the hood to the outside. (Figure 1) A straight, short venting run will allow •...
- Page 8 Secure and tighten the mounting screws. CAUTION: MAKE SURE THE HOOD IS SECURE BEFORE RELEASING. Ductwork Installation Using Reference E from Table 1 and measurements on Page 11, mark the leveling point for duct cover-mounting bracket. Secure the duct cover-mounting bracket to the wall with two screws (not provided).
- Page 9 inner duct cover with two (4x8 mm) screws (provided). 12. Fasten outer duct cover to plastic plate on the hood with four (4x8 mm) screws (provided). Install Accessories 13. Place baffle filters underneath the hood. Refer to Figure 10. Final Assembly 14.
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30- second delay shutoff, one powerful centrifugal squirrel with baffle filters, and two bright 12-volt 20-watt halogen lights. The four electronic controls are Light Control, Speed Control A, Speed Control B and the Power Control (On/Off). -
Page 11: Maintenance
MAINTENANCE For the optimal level of operation, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. Regular care will help preserve your KOBE Range Hood’s fine appearance. 1. Use only mild soap or detergent. Dry surface using a soft cloth. 2. -
Page 12: Specifications
SPECIFICATIONS MODEL / SIZE COLOR CONSUMPTION / AMPERE VOLTAGE NUMBER OF MOTORS DESIGN MOTOR TYPE EXHAUST CONTROLS HALOGEN LIGHTS HOOD DIMENSION (W x D x H) OPTIONAL ACCESSORIES (W x D x H) WEIGHT (lbs) SPEED Air Capacity (cfm)* Sone *In House Test Static Pressure “0”. -
Page 13: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS Front View Bottom View 30" Hood 36" Hood... -
Page 14: Parts List
PARTS LIST MODEL NO.: RA9430SQB RA9436SQB DESCRIPTION Duct Cover-Mounting Bracket Duct Cover Plastic Plate 6” round Plastic Exhaust Hood-Mounting Bracket Rubber Stand Hood Casing Wiring Box Halogen Lights (12V 20W) Air Chamber & Motor Safety Screen Control Panel Support Control Panel Electric Component Support Transformer (Light) Transformer (Motor) - Page 15 MODEL NO.: RA9430SQB RA9436SQB...
-
Page 16: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RA9430SQB RA9436SQB... -
Page 17: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. -
Page 18: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. - Page 19 KOBE Range Hoods Agent as applicable, for any traveling expenses and any costs of transporting the range hood or parts thereof to and from the...
-
Page 20: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection. - Page 21 KOBE Range Hoods 10505 Valley Blvd Suite # 302 El Monte, CA 91731 USA http://www.KOBERangeHoods.com This KOBE hood is manufactured for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country.
