RA02 SQB-1 Parts Location and Replacement

This basic guide is to show the parts location of the RA02 SQB-1 and how to remove or install certain parts.

To see more detailed guidelines, please visit:

Kobe Service and Repair

For models (w/ Standard Duct Cover): RA0230SQB-DC-1, RA0236SQB-DC-1, RA0242SQB-DC-1, RA0248SQB-DC-1 or

RA0230SQB-1, RA0236SQB-1, RA0242SQB-1, RA0248SQB-1

For models (w/ 24" Duct Extension): RA0230SQB-DC24-1, RA0236SQB-DC24-1, RA0242SQB-DC24-1,

RA0248SQB-DC24-1

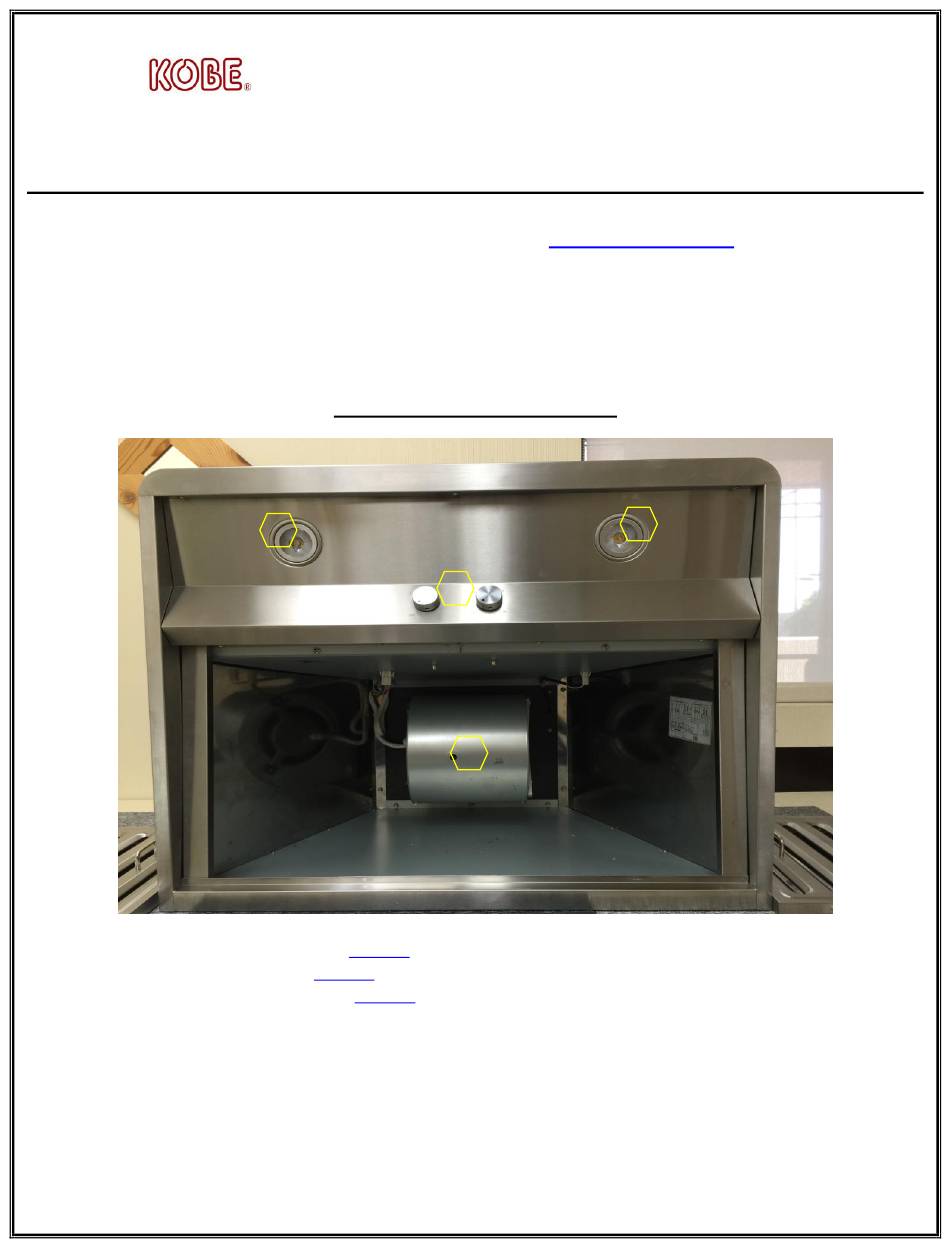

Overall Snapshot of RA02 SQB-1

Part #8 – See "Parts List" page on manual)

1. Blower System

(Manual

Part #5 – See "Parts List" page on manual)

2. Knobs

(Manual

Part #3 – See "Parts List" page on manual)

3. LED Light (3W)

(Manual

Page 1 of 5

Version 20160725

Need help?

Do you have a question about the RA02 SQB-1 and is the answer not in the manual?

Page 1 “So Quiet…You Won’t Believe It’s On!” RA02 SQB-1 Parts Location and Replacement This basic guide is to show the parts location of the RA02 SQB-1 and how to remove or install certain parts. To see more detailed guidelines, please visit:...
Page 2 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Capacitor Panel Warning: Loosen the screw first with a hand tool screw driver. Figure 1 Figure 2 Figure 3 Figure 4 Part #11 – See “Parts List” page on manual) 4.
Page 3 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Accessing the Capacitor and LED Driver Part #9 – See “Parts List” page on manual) 5. Capacitor (Manual Part #10 – See “Parts List” page on manual) 6. LED Driver (Manual...
Page 4 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Control Knobs Figure 1 Figure 2 Figure 3 Figure 4 Accessing the LED Light For a more detailed guideline, visit: How to Replace LED Lights Page 4 of 5...
Page 5 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Motor Warning: 1. Loosen the screw first with a hand tool screw driver. 2. Place a support or hold the blower before removing it. Figure 1 Figure 2 Figure 3 Figure 4 Part #8 –...
