CH00 Series
Model No.
Under Cabinet: CH0030SQB-1 (30")
Wall Mount: CH0030SQB-WM-1 (30")
RA02 Series
Model No.
Wall Mount: RA0230SQB-1 / RA0230SQB-DC-1 (30")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
CH0036SQB-1 (36")
CH0042SQB-1 (42")
CH0048SQB-1 (48")
CH0036SQB-WM-1 (36")
CH0042SQB-WM-1 (42")
CH0048SQB-WM-1 (48")
RA0236SQB-1 / RA0236SQB-DC-1 (36")
RA0242SQB-1 / RA0242SQB-DC-1 (42")
RA0248SQB-1 / RA0248SQB-DC-1 (48")
RA0230SQB-DC24-1 (30")
RA0236SQB-DC24-1 (36")
RA0242SQB-DC24-1 (42")
RA0248SQB-DC24-1 (48")
RA0230SQB-DC48-1 (30")
RA0236SQB-DC48-1 (36")
RA0242SQB-DC48-1 (42")
RA0248SQB-DC48-1 (48")

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH00 Series and is the answer not in the manual?

Questions and answers

Related Manuals for KOBE CH00 Series

Summary of Contents for KOBE CH00 Series

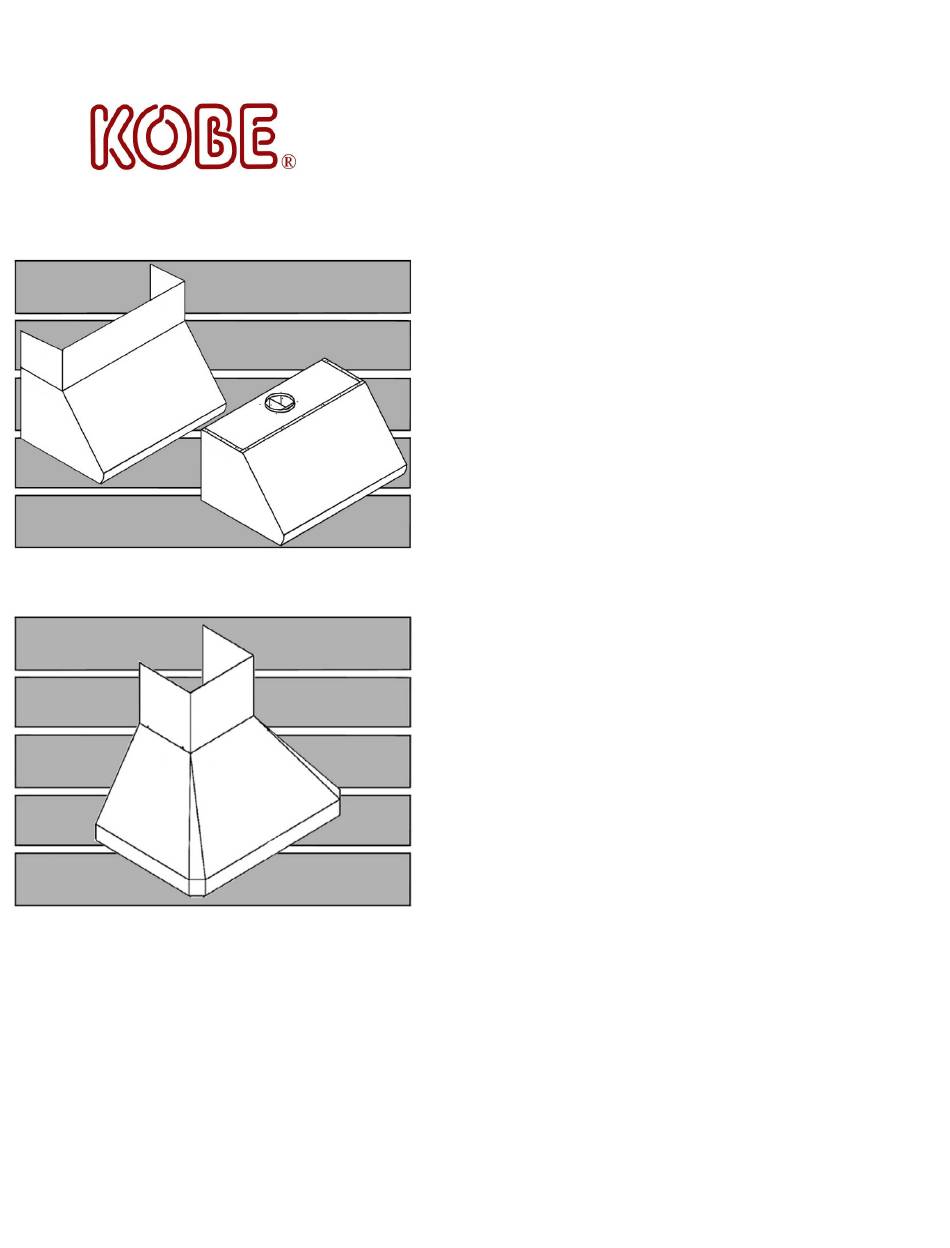

  • Page 1 KOBE Range Hoods CH00 Series Model No. Under Cabinet: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) Wall Mount: CH0030SQB-WM-1 (30”) CH0036SQB-WM-1 (36”) CH0042SQB-WM-1 (42”) CH0048SQB-WM-1 (48”) RA02 Series Model No. Wall Mount: RA0230SQB-1 / RA0230SQB-DC-1 (30”) RA0236SQB-1 / RA0236SQB-DC-1 (36”) RA0242SQB-1 / RA0242SQB-DC-1 (42”)
  • Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.

  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION ........................... 5 OPERATION INSTRUCTIONS....................15 MAINTENANCE ........................16 SPECIFICATIONS ........................17 MEASUREMENTS & DIAGRAMS ..................... 21 PARTS LIST ..........................24 CIRCUIT DIAGRAM ........................30 TROUBLE SHOOTING ......................

  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 6: Components Of Package

    (Must keep all material for returns or refunds) CH00 Series RANGE HOOD BOX {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Oil Tunnel {E} Baffle Filter – 2 (30” & 36”) – 3 (42” & 48”) {F} Spacer x 2 {G} 6”...
  • Page 7 Duct Cover Mounting Bracket Screws Package M4 x 1-1/2” (2) Outer Duct Extension RA02DC-24 (Included in RA02 SQB-DC48-1 Only) Outer Duct Extension (Model No. RA02DC-24) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.

  • Page 8: Installation

    Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) - FOR UNDER THE CABINET - TABLE 1 CH00 Series A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”)
  • Page 9 NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. CH00 SERIES – UNDER THE CABINET INSTALLATION ..............7 CH00 SERIES – STAND ALONE INSTALLATION ................9 RA02 SERIES – INSTALLATION ...................... 12...
  • Page 10 CH00 SERIES – UNDER THE CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.
  • Page 11 Ductwork Installation Figure 5 7. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.
  • Page 12 CH00 SERIES – STAND ALONE INSTALLATION ***This installation required to have Duct Cover Model No. CH0030DC-12 / CH0036DC-12 / CH0042DC-12 / CH0048DC-12 Preparation before Installation Figure 9 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING.
  • Page 13 5. Align hood-mounting bracket to the six screws Figure 12 on the wall and hook hood into place. Tighten screws to secure hood to the wall. 6. For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more secure installation, use as many mounting holes as needed to secure from the inside of hood (screws included).
  • Page 14 Duct Cover Installation Figure 13 8. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.
  • Page 15 RA02 SERIES - INSTALLATION Preparation before Installation Figure 16 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 16) A straight, short venting run will allow the hood to perform more efficiently.
  • Page 16 Hood Installation Figure 19 CAUTION: If required to move the cooking range to install the hood, turn off the power on an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. 1. Using references in Table 2 and measurements on Page 23, mark the leveling locations point for hood-mounting bracket on the wall.
  • Page 17 Figure 22 Duct Cover Installation 6. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.

  • Page 18: Operation Instructions

    OPERATION INSTRUCTIONS This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters, and bright LED lights. The two rotary controls are Light Control & Speed Control. Refer to Figure 28. Figure 28 Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish airflow in the kitchen.

  • Page 19: Maintenance

    MAINTENANCE For the optimal level of operation, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 20: Specifications

    SPECIFICATIONS CH00 Series MODEL / SIZE For Under Cabinet Application CH0030SQB-1 / 30” / Single Blower CH0036SQB-1 / 36" / Single Blower CH0042SQB-1 / 42” / Dual Blowers CH0048SQB-1 / 48” / Dual Blowers For Wall Mount Application CH0030SQB-WM-1 / 30” / Single Blower CH0036SQB-WM-1 / 36”...
  • Page 21 SPEED High QuietMode™ SINGLE BLOWER CH0030SQB-1 Air Capacity (cfm) CH0036SQB-1 Sone* CH0030SQB-WM-1 CH0030SQB-WM-1 DUAL BLOWERS CH0042SQB-1 Air Capacity (cfm) 1200 CH0048SQB-1 Sone* CH0042SQB-WM-1 CH0042SQB-WM-1 *One sone is equivalent to the sound of a refrigerator at 40 decibels. **Specifications subject to change without notice.
  • Page 22 RA02 Series MODEL / SIZE RA0230SQB-1 or RA0230SQB-DC-1 / 30” / Single Blower RA0236SQB-1 or RA0236SQB-DC-1 / 36” / Single Blower RA0242SQB-1 or RA0242SQB-DC-1 / 42” / Dual Blowers RA0248SQB-1 or RA0248SQB-DC-1 / 48” / Dual Blowers RA0230SQB-DC24-1 / 30” / Single Blower RA0236SQB-DC24-1 / 36”...
  • Page 23 DUCT COVER DIMENSION RA02DC-1 (Original Duct Cover) 15” x 12” x 12” (W x D x H) RA02DC-24-1 (Extension Inner Duct Cover) 15” x 12” x 24” RA02DC-24 (Extension Outer Duct Cover) 15” x 12” x 24” OPTIONAL ACCESSORIES 1) Model No. SSP30 (W x D x H) 30”...

  • Page 24: Measurements & Diagrams

    MEASUREMENTS & DIAGRAMS *** All inch measurements are converted from millimeters. Inch measurements are estimated. *** All measurements in ( ) are millimeters. CH00 Series - FOR UNDER THE CABINET – MODEL NO.: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) - FOR STAND ALONE –...
  • Page 25 - FOR STAND ALONE- CH00 Series MODEL NO.: CH0030SQB-WM-1 (30”) CH0036SQB-WM-1 (36”) CH0042SQB-WM-1 (42”) CH0048SQB-WM-1 (48”) ***Hood-Mounting Bracket Baffle Filters & Stainless Steel Spacer...
  • Page 26 *** All inch measurements are converted from millimeters. Inch measurements are estimated. *** All measurements in ( ) are millimeters. RA02 Series MODEL NO.: RA0230SQB-1 or RA0230SQB-DC-1 (30”) RA0236SQB-1 or RA0236SQB-DC-1 (36”) RA0242SQB-1 or RA0242SQB-DC-1 (42”) RA0248SQB-1 or RA0248SQB-DC-1 (48”) Inner Duct Extension Model No.: RA02DC-24-1 Baffle Filter for RA02 Series *Included in RA02 SQB-DC24-1 and SQB-DC48-1 Series...

  • Page 27: Parts List

    PARTS LIST CH00 Series MODEL NO.: CH0030SQB-1 and CH0030SQB-WM-1 (30”) CH0036SQB-1 and CH0036SQB-WM-1 (36”) CH0042SQB-1 and CH0042SQB-WM-1 (42”) CH0048SQB-1 and CH0048SQB-WM-1 (48”) DESCRIPTION MODEL /SIZE PART NO. Screw(3/16”x3/8”) L1-0707-0002 6” Round Plastic Exhaust CH0030SQB-1/CH0036SQB-1 L1-0505-0003 8” Round Exhaust Plate CH0042SQB-1/CH0048SQB-1...
  • Page 28 CH00 Series Model No.: CH0030SQB-1 and CH0030SQB-WM-1 (30”) CH0036SQB-1 and CH0036SQB-WM-1 (36”)
  • Page 29 CH00 Series Model No.: CH0042SQB-1 and CH0042SQB-WM-1 (42”) CH0048SQB-1 and CH0048SQB-WM-1 (48”)
  • Page 30 PART LIST RA02 Series MODEL NO.: RA0230SQB-1 / RA0230SQB-DC24-1 / RA0230SQB-DC48-1(30”) RA0236SQB-1 / RA0236SQB-DC24-1 / RA0236SQB-DC48-1 (36”) RA0242SQB-1 / RA0242SQB-DC24-1 / RA0242SQB-DC48-1 (42”) RA0248SQB-1 / RA0248SQB-DC24-1 / RA0248SQB-DC48-1 (48”) DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust RA0230SQB-1/RA0236SQB-1 L1-0505-0003 8”...
  • Page 31 RA02 Series Model No.: RA0230SQB-1 / RA0230SQB-DC24-1 / RA0230SQB-DC48-1 (30”) RA0236SQB-1 / RA0236SQB-DC24-1 / RA0236SQB-DC48-1 (36”)
  • Page 32 RA02 Series Model No.: RA0242SQB-1 / RA0242SQB-DC24-1 / RA0242SQB-DC48-1 (42”) RA0248SQB-1 / RA0248SQB-DC24-1 / RA0248SQB-DC48-1 (48”)

  • Page 33: Circuit Diagram

    CIRCUIT DIAGRAM MODEL NO.: CH0030SQB-1 and CH0030SQB-WM-1 (30”) CH0036SQB-1 and CH0036SQB-WM-1 (36”) RA0230SQB-1 / RA0230SQB-DC24-1 / RA0230SQB-DC48-1 (30”) RA0236SQB-1 / RA0236SQB-DC24-1 / RA0236SQB-DC48-1 (36”) MODEL NO.: CH0042SQB-1 and CH0042SQB-WM-1 (42”) CH0048SQB-1 and CH0048SQB-WM-1 (48”) RA0242SQB-1 / RA0242SQB-DC24-1 / RA0242SQB-DC48-1 (42”) RA0248SQB-1 / RA0248SQB-DC24-1 / RA0248SQB-DC48-1 (48”)

  • Page 34: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. not working.

  • Page 35: Warranty

    TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.
  • Page 36 TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER: From the 48 contiguous states:...

  • Page 37: Product Registration

    1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please contact:...
  • Page 38 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
