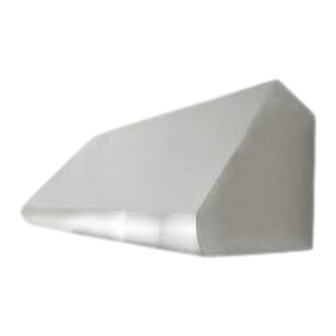

KOBE CH0036SQB-1 (36”) Installation Instructions And Operation Manual

Ch-100, ra-02 series (18” height) 30"/36"/42"/48"
Hide thumbs Also See for CH0036SQB-1 (36”):
Table of Contents

Advertisement

Quick Links

Download this manual

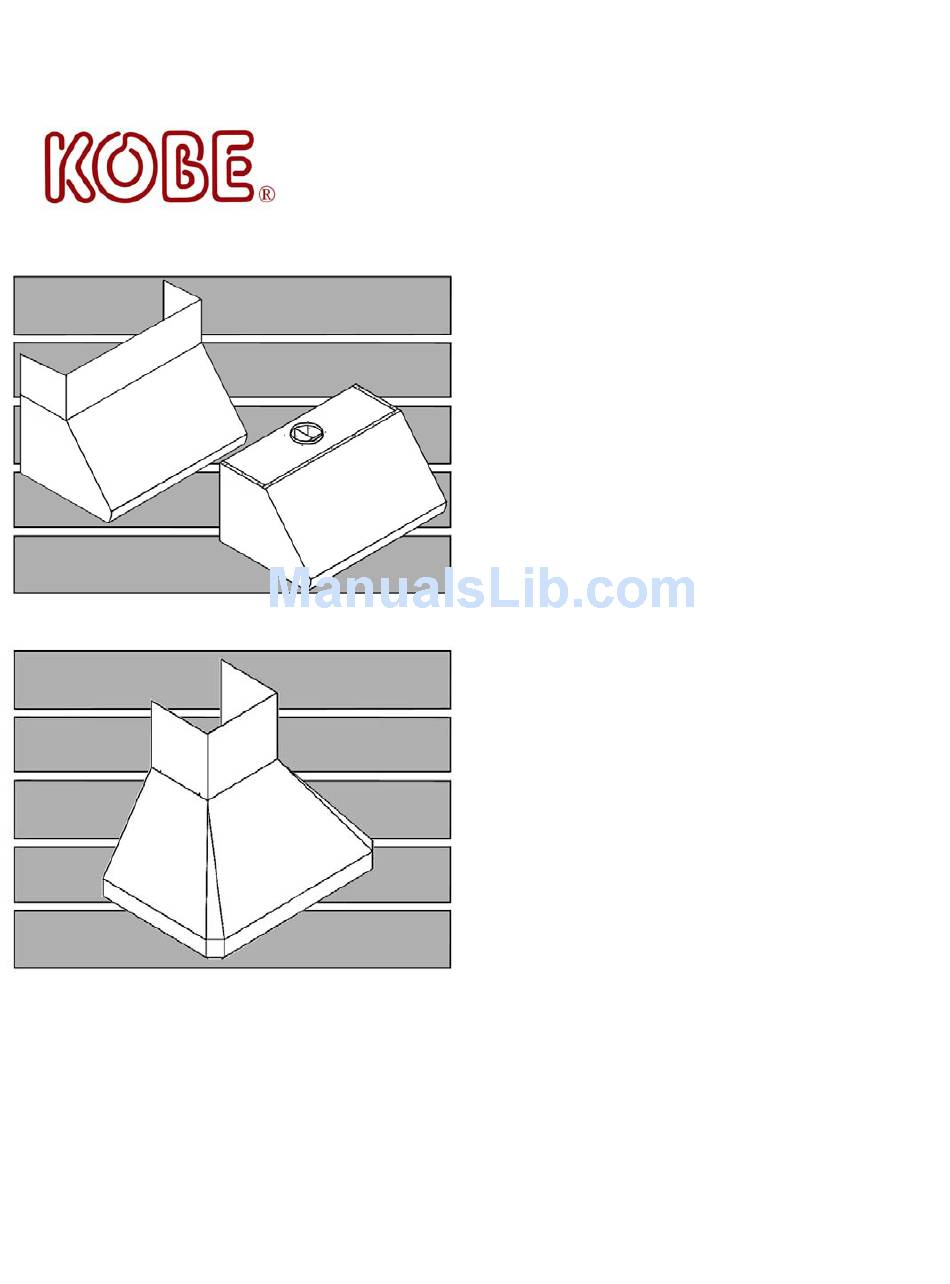

KOBE Brand Range Hood
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
CH-100 Series (18" Height)
Model No.:
CH0030SQB-1 (30")
CH0036SQB-1 (36")
CH0042SQB-1 (42")
CH0048SQB-1 (48")
RA-02 Series (18" Height)
Model No.:
RA0230SQB-1 (30")
RA0236SQB-1 (36")
RA0242SQB-1 (42")
RA0248SQB-1 (48")

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH0036SQB-1 (36”) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBE CH0036SQB-1 (36”)

Summary of Contents for KOBE CH0036SQB-1 (36”)

  • Page 1 KOBE Brand Range Hood CH-100 Series (18” Height) Model No.: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) RA-02 Series (18” Height) Model No.: RA0230SQB-1 (30”) RA0236SQB-1 (36”) RA0242SQB-1 (42”) RA0248SQB-1 (48”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...

  • Page 2: Table Of Contents

    - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 5 OPERATION INSTRUCTIONS....................15 MAINTENANCE ........................16 SPECIFICATIONS ........................17 MEASUREMENTS & DIAGRAMS .....................19 PARTS LIST ..........................22 CIRCUIT DIAGRAM ........................28 TROUBLE SHOOTING ......................29 DISCLAIMER ..........................30 WARRANTY ..........................31 PRODUCT REGISTRATION .....................33 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -...

  • Page 3: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 4 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 5: Components Of Package

    COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) CH-100 Series RANGE HOOD BOX KOBE Range Hood – 1 Warranty Registration Card –1 Instructions Manual – 1 Oil Tunnel – 1 Baffle Filter - 2 (30” & 36”) - 3 (42”...
  • Page 6 {H} Screws Package – 1 {I} Hood-Mounting Bracket – 1 {J} Screws Package – 1 BOX 2 OF 2 ITEM NO.: RA02DC Duct Cover FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.

  • Page 7: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) - FOR UNDER THE CABINET - TABLE 1 CH-100 Series A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood...

  • Page 8: Safety Warning

    SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. CH-100 SERIES – UNDER THE CABINET INSTALLATION ..............7 CH-100 SERIES –...

  • Page 9: Ch-100 Series – Under The Cabinet Installation

    CH-100 SERIES – UNDER THE CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood to perform more efficiently.
  • Page 10 Figure 5 Ductwork Installation 7. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above.

  • Page 11: Ch-100 Series – Stand Alone Installation

    CH-100 SERIES – STAND ALONE INSTALLATION ***This installation only applies with the purchase Figure 9 of an optional duct cover: Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
  • Page 12 5. Align hood-mounting bracket to the two screws Figure 13 on the wall and hook hood into place. Tighten screws to secure hood to the wall. 6. For safety purpose, pre-drilled mounting holes WALL are provided through the back of the hood. For a more secure installation, use as many mounting holes as needed to secure from the inside of hood (screws not included).
  • Page 13 Figure 15 Duct Cover Installation 8. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above.

  • Page 14: Ra-02 Series - Installation

    RA-02 SERIES - INSTALLATION Figure 19 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 18) A straight, short venting run will allow the hood to perform more efficiently.
  • Page 15 Figure 22 Hood Installation CAUTION: If required to move the cooking range to install the hood, turn off the power on an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. 1. Using references in Table 2 and measurements on Page 21, mark the leveling locations point for hood-mounting bracket on the wall.
  • Page 16 Figure 26 Duct Cover Installation 6. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.

  • Page 17: Operation Instructions

    OPERATION INSTRUCTIONS This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters, and bright LED lights. The two rotary controls are Light Control & Speed Control. Refer to Figure 28. Figure 28 Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish airflow in the kitchen.

  • Page 18: Maintenance

    MAINTENANCE For the optimal level of operation, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 19: Specifications

    SPECIFICATIONS CH-100 Series MODEL / SIZE CH0030SQB-1 / 30” / Single Blower CH0036SQB-1 / 36" / Single Blower CH0042SQB-1 / 42” / Dual Blowers CH0048SQB-1 / 48” / Dual Blowers COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE CH0030SQB-1 – 700W / 6A CH0036SQB-1 –...
  • Page 20 RA-02 Series MODEL / SIZE RA0230SQB-1 / 30” / Single Blower RA0236SQB-1 / 36" / Single Blower RA0242SQB-1 / 42” / Dual Blowers RA0248SQB-1 / 48” / Dual Blowers COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE RA0230SQB-1 – 350W / 3A RA0236SQB-1 –...

  • Page 21: Measurements & Diagrams

    MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. CH-100 Series MODEL NO.: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) - FOR UNDER THE CABINET - - FOR STAND ALONE -...
  • Page 22 - FOR STAND ALONE (WITH OPTIONAL DUCT COVER) - CH-100 Series MODEL NO.: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) ***Hood-Mounting Bracket ***Rear Knockout Holes...
  • Page 23 All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. RA-02 Series MODEL NO.: RA0230SQB-1 (30”) RA0236SQB-1 (36”) RA0242SQB-1 (42”) RA0248SQB-1 (48”)

  • Page 24: Parts List

    PARTS LIST CH-100 Series MODEL NO.: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) DESCRIPTION MODEL /SIZE PART NO. Screw (3/16” x 3/8” ) C1-0707-0001 Hood Mounting Bracket C1-0221-0330 6” Round Plastic Exhaust CH0030SQB-1 / CH0036SQB-1 C1-0505-0001 8” Round Exhaust Plate CH0042SQB-1 / CH0048SQB-1 C1-0606-0101 CH0030SQB-1...
  • Page 25 CH-100 Series MODEL NO.: CH0030SQB-1 (30”) CH0036SQB-1 (36”)
  • Page 26 CH-100 Series MODEL NO.: CH0042SQB-1 (42”) CH0048SQB-1 (48”)
  • Page 27 RA-02 Series MODEL NO.: RA0230SQB-1 (30”) RA0236SQB-1 (36”) RA0242SQB-1 (42”) RA0248SQB-1 (48”) DESCRIPTION MODEL /SIZE PART NO. 6” Round Plastic Exhaust RA0230SQB-1 / RA0236SQB-1 C1-0505-0001 8” Round Exhaust Plate RA0242SQB-1 / RA0248SQB-1 C1-0606-0101 Duct Cover RA02DC 12-56000-012-51 Hood Mounting Bracket C1-0221-0092 RA0230SQB-1 B101-5630-01...
  • Page 28 RA-02 Series MODEL NO.: RA0230SQB-1 (30”) RA0236SQB-1 (36”)
  • Page 29 RA-02 Series MODEL NO.: RA0242SQB-1 (42”) RA0248SQB-1 (48”)

  • Page 30: Circuit Diagram

    CIRCUIT DIAGRAM CH-100 Series MODEL NO.: CH0030SQB-1 (30”) CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) RA-02 Series MODEL NO.: RA0230SQB-1 (30”) RA0236SQB-1 (36”) RA0242SQB-1 (42”) RA0248SQB-1 (48”)

  • Page 31: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution After Installation, The power is not on. Make sure the circuit breaker and the unit’s power is both motors and ON. Use a voltage meter to check the power supply. lights are not The wire connection is not secure. Check and tighten wire connection.

  • Page 32: Disclaimer

    2. PLEASE INSPECT CONTENTS OF PACKAGE(S) CAREFULLY UPON RECEIVING! We must be notified in writing of any damages and/or missing parts within the allocated days upon your receipt of package(s). Contact your local KOBE dealer or distributor or call KOBE for the time limit.

  • Page 33: Warranty

    WARRANTY WARRANTY CERTIFICATE KOBE Range Hoods warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective.
  • Page 34 KOBE Range Hoods Agent as applicable, for any traveling expenses and any costs of transporting the range hood or parts thereof to and from the...

  • Page 35: Product Registration

    KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection.
  • Page 36 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
