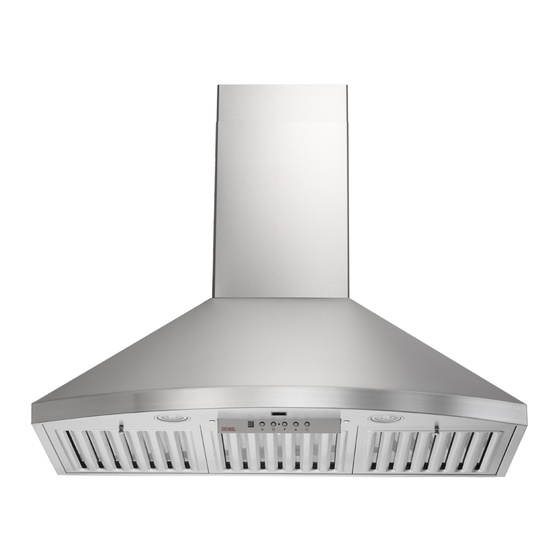

- Page 1 KOBE Range Hoods Premium Series RA92 SQ6-XX Series Model No.: RA9230SQ6-XX (30”) RA9236SQ6-XX (36”) RA9230SQ6-DC30-XX (30”) RA9236SQ6-DC30-XX (36”) RA9230SQ6-DC46-XX (30”) RA9236SQ6-DC46-XX (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to customer.service@koberangehoods.com. NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................. 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................7 MAINTENANCE ......................10 SPECIFICATIONS ......................11 MEASUREMENTS & DIAGRAMS ................. 12 PARTS LIST ........................14 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not hold responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire 1) SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
Extension Duct Cover RA0946DC (Included in RA92 SQB6-DC46-XX ONLY) {L} Duct Cover Extension Model No.: RA0946DC *Pre-installed Knob attached to baffle filter *Pre-installed • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Minimum 26”... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 Figure 4 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Button Power Light Decrease Fan Speed ECO Mode Increase Fan Speed LED Display Indicator ECO Mode Icon Auto Mode Icon QuietMode™ Speed #1 Speed #2 Speed #3 Speed #4 Speed #5 Auto Mode • The hood has advanced built-in flame and temperature sensors. When the sensor detects the presence of a flame or fire, the hood will turn on automatically. - Page 11 Delay Shut-off • Automatic: After turning off your range and the temperature of the hood equals the surrounding room temperature; the hood will automatically activate the 5-minute delay shut-off. Manual: To activate the 5-minute delay shut-off manually, press and hold the power button for about 3 seconds.
- Page 12 Light Control Press the light button to turn the LED lights ON. Each press of the button will cycle the light intensity through bright, medium bright, dim and off. Lights are controlled independently from power and speed control. Lights will not turn off by itself in delay shut-off, so please be sure to turn them off first before setting on delay shut-off mode.
-
Page 13: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 14: Specifications
SPECIFICATIONS 30” Model 36” Model MODEL / SIZE RA9230SQB6-XX RA9236SQB6-XX RA9230SQB6-DC30-XX RA9236SQB6-DC30-XX RA9230SQB6-DC46-XX RA9236SQB6-DC46-XX COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 420W / 3.5A Power Rating 120V / 60Hz NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage Top 6”... -
Page 15: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. RA9230SQB6-XX (30”) MODEL NO.: RA9236SQB6-XX (36”) - Page 16 RA9230SQB6-DC30-XX (30”) / RA9236SQB6-DC30-XX (36”) MODEL NO.: Extension Duct Cover Model: RA0930DC * For the diagram of hood dimension, please refer to Page 11. RA9230SQB6-DC46-XX (30”) / RA9236SQB6-DC46-XX (36”) MODEL NO.: Extension Duct Cover Model: RA0946DC * For the diagram of hood dimension, please refer to Page 11.
-
Page 17: Parts List
PARTS LIST RA9230SQB6-XX (30”) MODEL NO.: RA9236SQB6-XX (36”) DESCRIPTION MODEL / SIZE PART NO. Hood-Mounting Bracket L1-0221-0092 Duct Cover-Mounting Bracket L1-0203-0092 Duct Cover RA092DC-1 12-09200-61 6” Round Plastic Exhaust L1-0505-0007 LED Light (3W) x 2 L1-0403-0301 Control Panel Support L1-0204-F9230 Capacitor Support L1-0207-F9230 Blower System... - Page 18 RA9230SQB6-XX (30”) MODEL NO.: RA9236SQB6-XX (36”)
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM RA9230SQB6-XX (30”) MODEL NO.: RA9236SQB6-XX (36”) -
Page 20: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a voltage installation, both motors meter to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 21: Warranty
TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 22 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercial, outdoor or other usage other than residential indoor usage.
-
Page 23: Warranty Information Form
3. Serial No. : ______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
