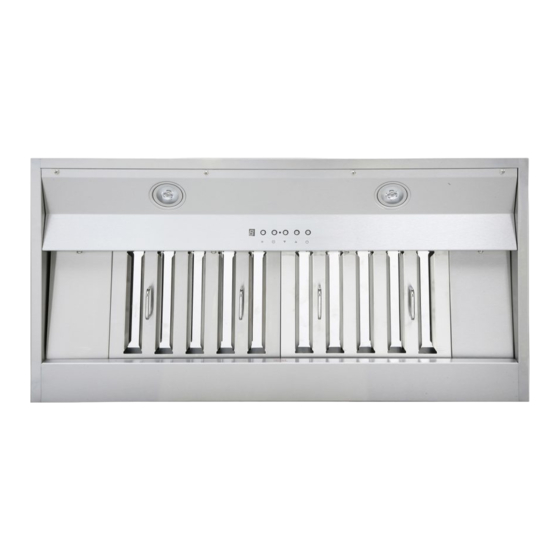

- Page 1 KOBE Brand Range Hood Model No.: IN2636SQB IN-026 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ... 1 COMPONENTS OF PACKAGE ... 3 INSTALLATION ... 4 NSERT INSTALLATION Preparation Before Installation ... 5 Custom Hood Preparation ... 5 Liner Installation ... 5 Wiring to Power Supply ... 6 Duct Work Installation ... -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
{F} Handle & Screws Package – 1 {G} Wireless Control – 1 FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE CONTACT KOBE RANGE HOODS AT (626) 350-1355. Liner (Sold Separately) {H} Front Section of Liner {I} Rear Section of Liner... -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Height of Counter Top to Wood Frame Bottom (Recommended 27”... -
Page 7: For Insert Installation
Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to • the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform •... -
Page 8: Wiring To Power Supply
the back edge of the custom wood frame. Use a pen to trace the outline of the pre-cut area. Remove the liner and proceed to Hood Preparation Before Installation. 9. Install the rear section of the liner with 6 screws (not included). -
Page 9: Hood Installation
before installing the insert. 20. Determine the proper location for the Power Supply Cable. Make a wiring access hole using a drill bit. Install the wire cable and seal the gap around hole. 21. Cut out the opening where the insert will be installed. (Figure 5) Hood Installation NOTE: USE HAND TOOLS ONLY. -
Page 10: Final Assembly
Final Assembly 29. Install the oil tunnel into recess support near rear of hood. Refer to Figure 9. 30. Install Baffle filters. Angle baffle filter toward back of hood ①. Push baffle filter up until almost level ②. Slide forward into recess behind the front of hood ③. Lower baffle filter ④. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED array, six electronic button wireless control, twin vertical centrifugal squirrel cage fan with stainless steel baffle filter, ISC (Integrated Sensor Control), two bright 120-volt 40-watt socket (light bulbs not included), and one oil tunnel. The five control buttons are Power Control (On/Off), Speed Control (High, Medium, Low &... - Page 12 = Low Speed = Medium Speed = High Speed Auto Control Press Auto Control to set the hood on auto sensor. When gas or fluctuating temperature* is detected, hood will automatically turn ON. Fan will turn to its highest speed and will turn OFF until gas is eliminated and temperature is reduced down to room temperature.
- Page 13 The six control buttons for the wireless remote control are Power Control (On/Off), Light Control, Speed Controls (High, Medium, Low & QuietMode™), Timer Control and Auto Control. Refer to Figure Power Control Press Power Control to turn On/Off the hood. Light Control (Lights are control separately from ON/OFF control.
-
Page 14: Maintenance
MAINTENANCE SAFETY WARNING NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. Cleaning Hood Surface CAUTION NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE PAPER TOWEL ON STAINLESS STEEL. For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly. *** Regular care will help preserve the appearance of the hood. -
Page 15: Specifications
Blower Air Capacity (cfm)* Sone** *In House Test Static Pressure “0”. ** One Sone is equivalent to 40 decibels. ***Specifications subject to change without notice. IN2636SQB 20-Gauge Commercial Stainless Steel 340W / 2.8A 120V 60Hz Twin Vertical Squirrel Cage Top 7” Round with Damper... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2636SQB Side View Back View Bottom View Front View... - Page 17 Stainless Steel Liner (Sold Separately) Model No. INL36252A...
-
Page 18: Parts List
Light Housing Light Support Panel Light Socket Control Unit LED Screen Wiring Box Wireless Remote Optional Liner (Sold Separately) Model No. INL36252A Rear Liner Section Front Liner Section IN2636SQB DESCRIPTION MODEL/SIZE PART NO. SY-026-3-001 SY-027-5-002 SY-026-5-003 SY-026-3-002 SY-026-5-051 SY-026-5-052 SY-026-5-053... - Page 19 Optional Liner (Sold Separately)
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IN2636SQB... -
Page 21: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. -
Page 22: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 23: Consequential Damage
Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods 10505 Valley Blvd, Suite 302 EI Monte, CA 91731 U.S.A... -
Page 24: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection. - Page 25 KOBE Range Hoods 10505 Valley Blvd Suite # 302 El Monte, CA 91731 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country.
