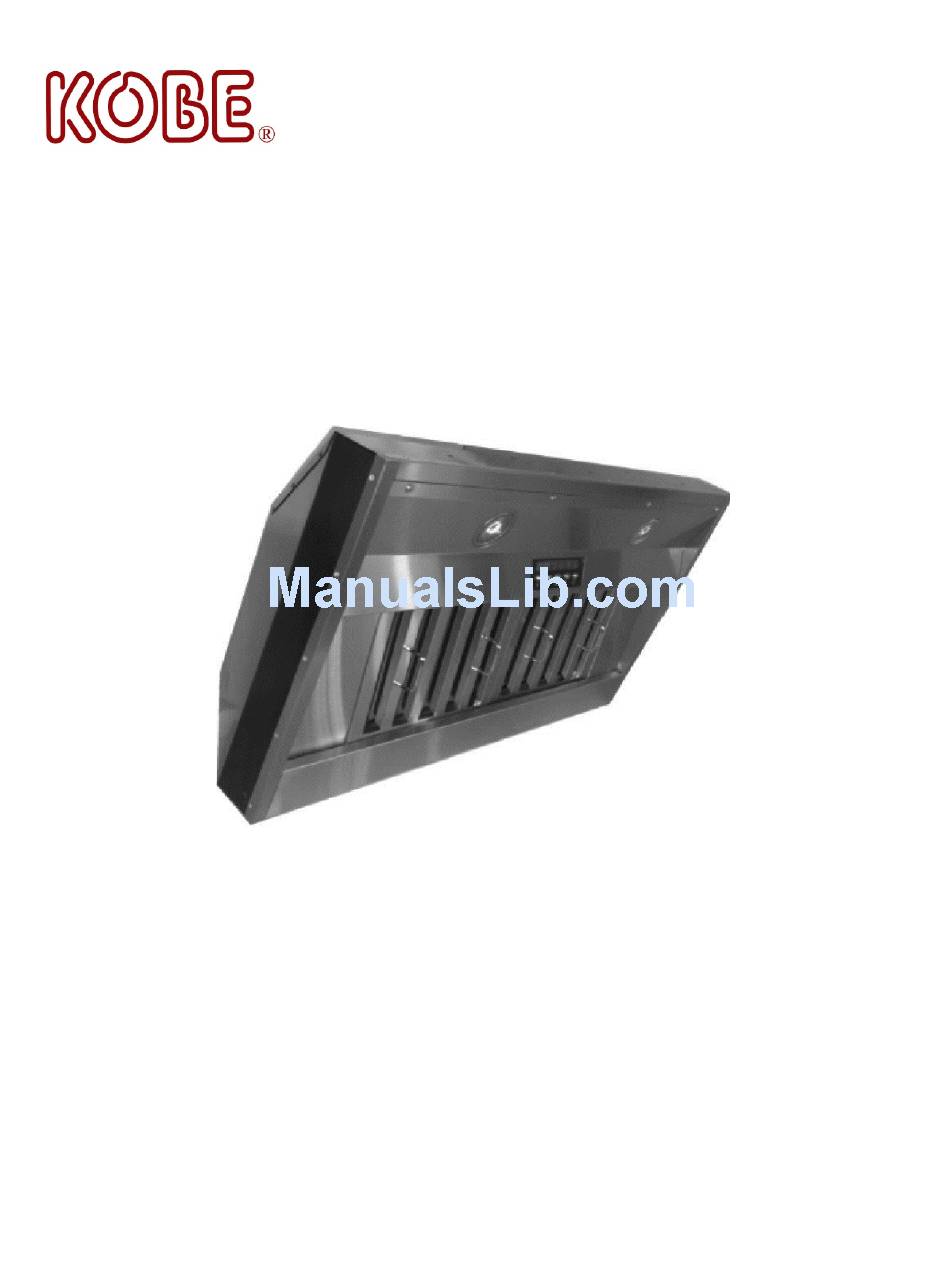

- Page 1 KOBE Brand Range Hood Model No. IN2636SQB-700 PREMIUM IN-026 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................9 SPECIFICATIONS ........................14 MEASUREMENTS & DIAGRAMS .....................15 PARTS LIST ..........................15 CIRCUIT DIAGRAM ........................17 TROUBLE SHOOTING ......................19 WARRANTY ..........................20 WARRANTY INFORMATION FORM ..................22 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{G} Remote Control {H} Rectangular Exhaust Plate {I} Rectangular Exhaust Adapter {J} Power Cord {K} Twist-on Wire Connector {L} Screw Package (AAA Batteries not included.) FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation Before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 Height of Floor to Ceiling Height of Floor to Counter Top (Standard: 36") Height of Counter Top to Wood Frame Bottom (Minimum 26"... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the • outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more •...
-
Page 9: Safety Warning
NOTE: The blower is pre-installed for top vent. If installing as rear vent, follow the steps below. Figure 5 9. For Rear 6” round installation only: Remove the Rear Round Vent Cover and Rear Rectangular Vent Cover (Refer to Figure 4). Keep screws to attach Round Exhaust Plate to rear vent. - Page 10 SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY. Figure 9 14. Connect electrical wires. 15. Connect three wires (black, white and green) to house wires and cap with wire connectors. Connect wires corresponding to their colors (i.e. black to black, white to white, and green to green).
- Page 11 Figure 12 Final Assembly 22. Install the oil tunnel into recess support near rear of hood. Refer to Figure 12. 23. Install baffle filters. Angle baffle filter toward back of hood ①. Push baffle filter up until almost level ②. Slide forward into recess behind the front of hood ③.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double horizontal squirrel cage blower with stainless steel baffle filters and two LED lights. The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low &... - Page 13 (Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.) Output Display will indicate: = QuietMode™ Speed = Low Speed = Medium Speed = High Speed ECO Control The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality.
- Page 14 Press the Timer Control to set desired time, starting from 1 min. up to 99 mins. When finished setting time, the timer will begin to automatically count down. Baffle Change Indicator The display will indicate when baffle filter needs cleaning. Press and hold the Power Control for 5 seconds to reset the Baffle Change Indicator.
- Page 15 Press of will decrease the time by 1 minute. Each press of will increase the time by 1 minute. When finished setting desired time, the timer will automatically begin to count down or press the Timer Control to immediately begin the countdown. If the timer is not set ( ) within 6 seconds, the unit will automatically exit Timer Control Mode arrow keys will return to speed function control.
-
Page 16: Specifications
SPECIFICATIONS MODEL / SIZE IN2636SQB-700 / 36” COLOR Stainless Steel CONSUMPTION / AMPERE 290W / 2.5A VOLTAGE 120V 60Hz NUMBER OF BLOWERS BLOWER TYPE: CENTRIFUGAL Double Horizontal Squirrel Cage EXHAUST Top: 6” Round 3-1/4” x 10” Rectangular Rear: 6” Round 3-1/4”... -
Page 17: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2636SQB-700 Side View Bottom View Back View Top View Front View... -
Page 18: Parts List
PARTS LIST MODEL NO: IN2636SQB-700 DESCRIPTION MODEL/SIZE PART NO. Rectangular Exhaust Plate L1-0241-0001B Rectangular Vent Cover L1-0241-0002A Round Exhaust Plate L1-0241-0001A Rectangular Exhaust Adapter L1-0241-0002B IN2636SQB- Hood Casing 10-2636B-700 Electric Component Support L1-0201-2636 Processor Board L1-0404-2636-B Capacitor x 1PCS L1-0401-0120-10 Blower Bracket L1-0233-2630 IN2636SQB-... - Page 19 MODEL NO.: IN2636SQB-700...
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IN2636SQB-700... -
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the motor and power supply. lights are not The wire connection is not secure. Check and tighten wire connection. -
Page 22: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 23 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 24: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:... - Page 25 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
