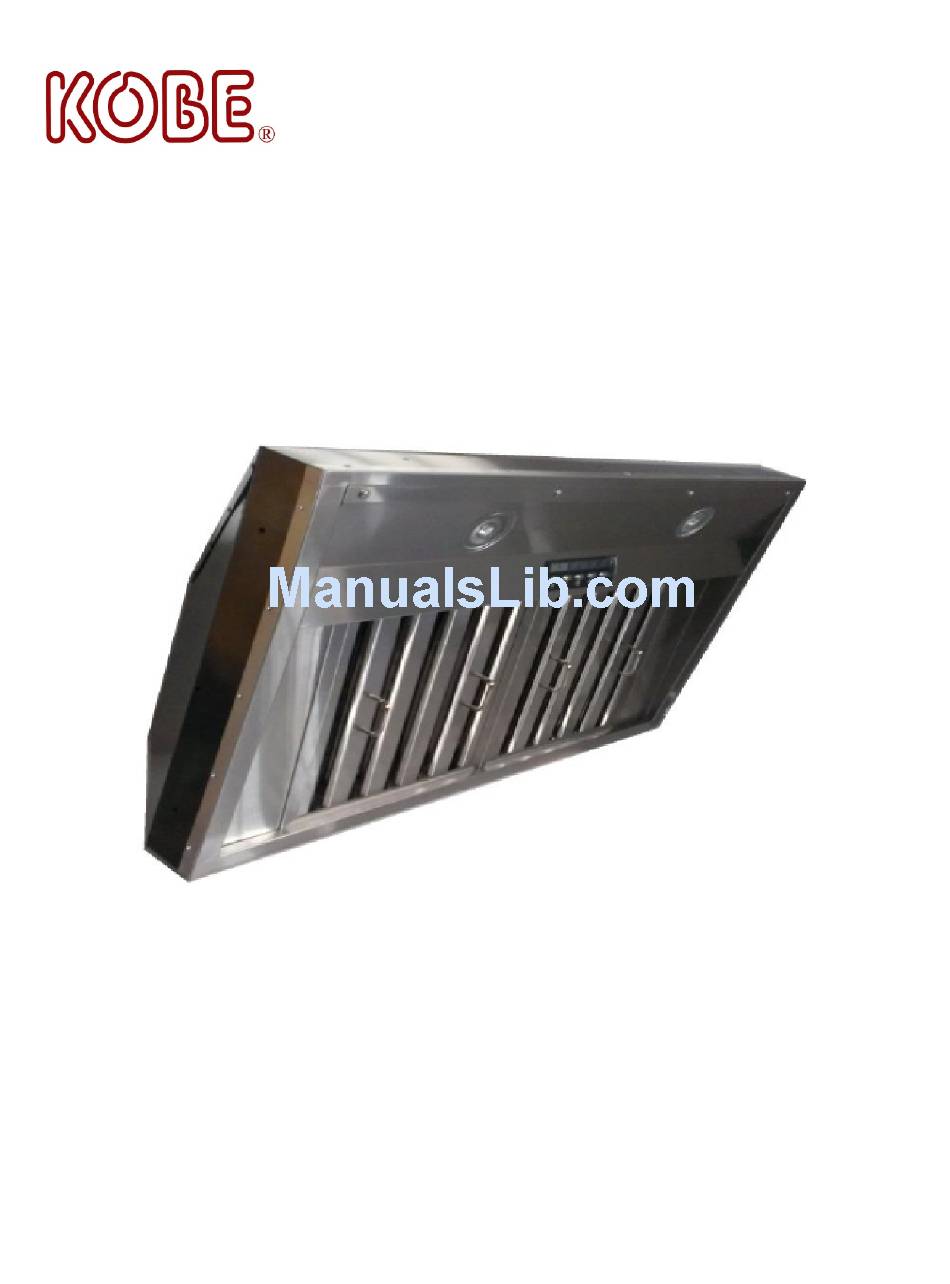

- Page 1 KOBE Brand Range Hood Model No. IN2636SQB-1200 IN2642SQB-1200 IN2648SQB-1200 PREMIUM IN-026 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................7 SPECIFICATIONS ........................12 MEASUREMENTS & DIAGRAMS .....................13 PARTS LIST ..........................16 CIRCUIT DIAGRAM ........................18 TROUBLE SHOOTING ......................19 WARRANTY ..........................20 WARRANTY INFORMATION FORM ..................22 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Baffle Filter x 2 (36”), X 3 (42” & 48”) {E} Oil Tunnel {F} Stainless Steel Spacer x 2 (For 36”... -
Page 7: Installation
FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880. INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation Before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET -... - Page 8 6. Cut out the opening where the hood will be installed. (Refer to Figure 3 for appropriate dimensions based on width of hood.) IN2636SQB-1200 (36”) Wiring to Power Supply CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box.
- Page 9 9. Store wires in the wiring box. Figure 4 Duct Work Installation 10. Determine and make all necessary cuts in the wall or ceiling for the ductwork. Note: Install the ductwork before installing the hood. 11. Use steel 8” round pipe to connect the ductwork above to the exhaust of the hood.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double horizontal squirrel cage blower with stainless steel baffle filters and two LED lights. The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low &... - Page 11 Speed Control (Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.) Output Display will indicate: = QuietMode™ Speed = Low Speed = Medium Speed = High Speed ECO Control The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality.
- Page 12 To activate the timer, the fan must be on (High, Medium, Low, or QuietMode™). As the fan is running, toggle the timer by pressing the Timer Control. The Timer Indicator will flash, indicating it is ready to be set. Press the Timer Control to set desired time, starting from 1 min. up to 99 mins. When finished setting time, the timer will begin to automatically count down.
- Page 13 Remote Control The six control buttons for the wireless remote control are Power Control (On/Off & 3 Minute Delay Shut-Off), Light Control, ECO Control, Timer Switch Control and Speed Controls (High, Medium, Low & QuietMode™). NOTE: Requires 2 AAA Batteries. Batteries not included. Power Control Press Power Control to turn hood ON and OFF.
- Page 14 ECO Control To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be displayed to show that it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating it has been deactivated.
-
Page 15: Specifications
LED Lights 3W x 2 – 36”, Dual Level Lighting LED Lights 3W x 3 – 42” & 48”, Dual Level Lighting HOOD DIMENSION (IN2636SQB-1200) 34-3/8” x 22-1/2” x 12” (W X D X H) (IN2642SQB-1200) 40-3/8” x 22-1/2” x 12”... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2636SQB-1200 IN2642SQB-1200 IN2648SQB-1200 Side View Top View... - Page 17 Bottom View MODEL NO: IN2636SQB-1200 (36”) MODEL NO: IN2642SQB-1200 (42”) MODEL NO: IN2648SQB-1200 (48”)
- Page 18 Front View MODEL NO: IN2636SQB-1200 (36”) MODEL NO: IN2642SQB-1200 (42”) MODEL NO: IN2648SQB-1200 (48”)
-
Page 19: Parts List
PARTS LIST MODEL NO ： IN2636SQB-1200 (36”) ： IN2642SQB-1200 (42”) ： IN2648SQB-1200 (48”) DESCRIPTION MODEL/SIZE PART NO. Ducting Transition L1-0505-0004 Hood Casing IN2636SQB-1200 10-2636B-1200 IN2642SQB-1200 10-2642B-1200 IN2648SQB-1200 10-2648B-1200 Processor Board L1-0404-2636-B Capacitor L1-0401-0120-10 Electric Component Support L1-0201-2636-12 Motor Bracket L1-0233-2642... - Page 20 MODEL NO ： ： ： ： IN2636SQB-1200 (36”) ： ： ： ： IN2642SQB-1200 (42”) ： ： ： ： IN2648SQB-1200 (48”)
-
Page 21: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO. : IN2636SQB-1200 (36”) MODEL NO. : IN2642SQB-1200 (42”) IN2648SQB-1200 (48”) -
Page 22: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After Installation, The power is not on. Make sure the circuit breaker and the unit’s power is motor and lights ON. Use a voltage meter to check the power supply. are not working. The wire connection is not secure. Check and tighten wire connection. -
Page 23: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 24 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 25: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please contact:... - Page 26 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
