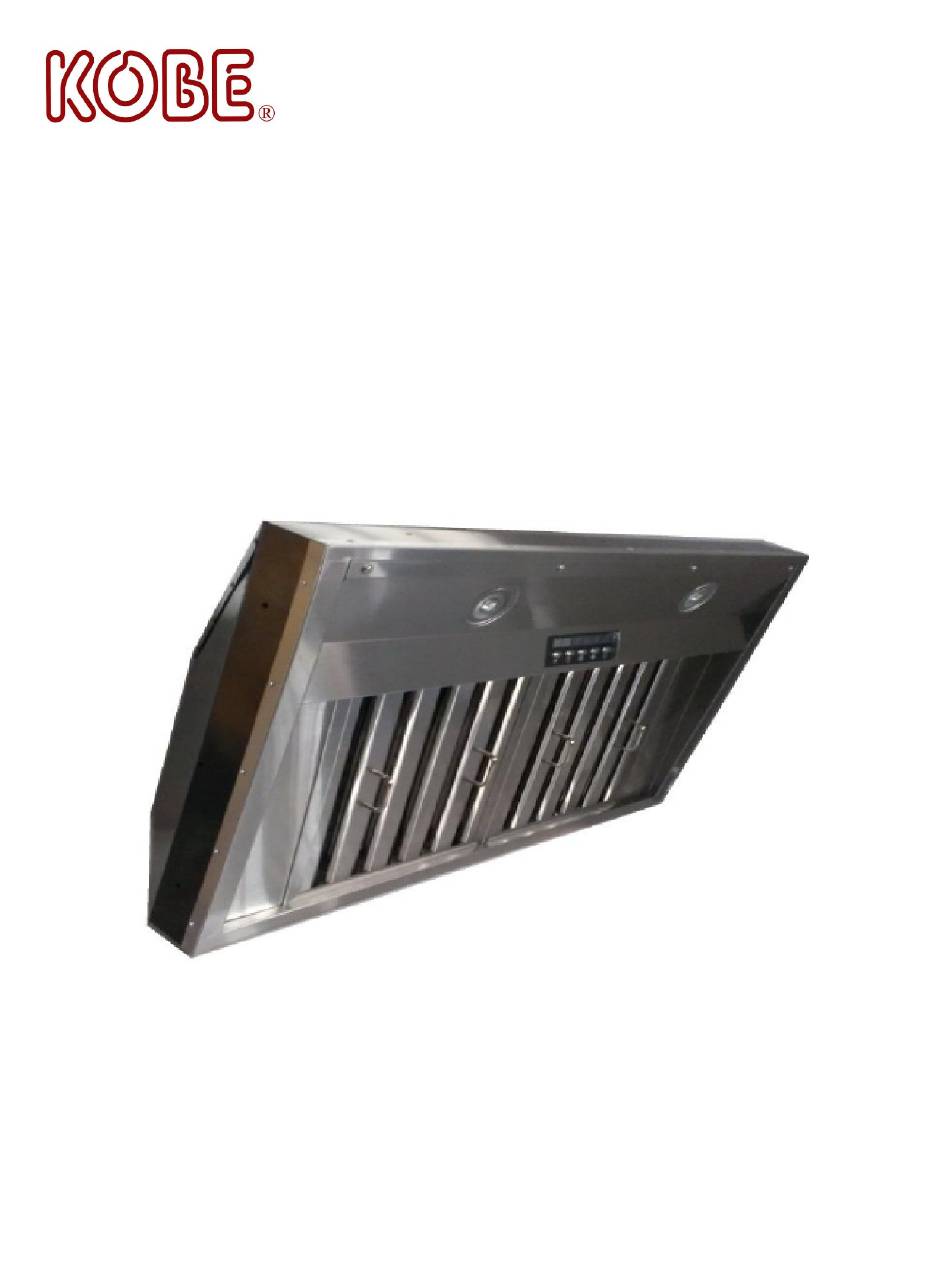

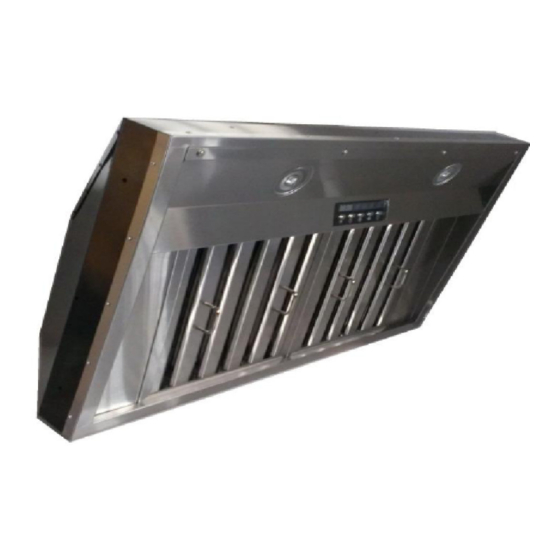

- Page 1 KOBE Range Hoods Deluxe Series IN26 SQB-1100-5 Series Model No. IN2636SQB-1100-5 (36”) IN2642SQB-1110-5 (42”) IN2648SQB-1100-5 (48”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................7 MAINTENANCE ........................11 SPECIFICATIONS ........................12 MEASUREMENTS & DIAGRAMS .....................13 PARTS LIST ..........................15 CIRCUIT DIAGRAM ........................17 TROUBLE SHOOTING ......................18 WARRANTY ..........................19 WARRANTY INFORMATION FORM ..................21... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{I} Twist-on Wire Cap {J} Screws Package Handle is included (AAA Batteries not included.) M4 x 1/2" (12 for 36” & 42”) (16 for 48”) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation Before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Height of Counter Top to Wood Frame Bottom (Minimum 27"... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. • A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 Figure 4 Duct Work Installation steel 8” round pipe to connect the ductwork above to the exhaust of the hood. The hood is preinstalled with a rectangular to 8” round transition (Refer to Figure 4). Use duct tape to make all joints secure and air tight.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double horizontal squirrel cage blower with stainless steel baffle filters and two LED lights. The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low &... - Page 11 Speed Control (Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.) Output Display will indicate: = QuietMode™ Speed = Low Speed = Medium Speed = High Speed ECO Control The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality.
- Page 12 Baffle Change Indicator The display will indicate when baffle filter needs cleaning. Press and hold the Power Control for 5 seconds to reset the Baffle Change Indicator. Remote Control The six control buttons for the wireless remote control are Power Control (On/Off & 3 Minute Delay Shut-Off), Light Control, ECO Control, Timer Switch Control and Speed Controls (High, Medium, Low &...
-
Page 13: Maintenance
If the timer is not set ( ) within 6 seconds, the unit will automatically exit Timer Control Mode arrow keys will return to speed function control. ECO Control To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be displayed to show that it is active. -
Page 14: Specifications
SPECIFICATIONS MODEL / SIZE IN2636SQB-1100-5 (36”) IN2642SQB-1100-5 (42”) IN2648SQB-1100-5 (48”) COLOR Stainless Steel CONSUMPTION / AMPERE 580W / 5.0A VOLTAGE 120V 60Hz NUMBER OF BLOWERS BLOWER TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage EXHAUST Top Transition Rectangular to 8” Round CONTROLS 5 Push Button Controls with LED Display - Timer Control - 3-Minute Delay Shut-Off... -
Page 15: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: IN2636SQB-1100-5 (36”) IN2642SQB-1100-5 (42”) IN2648SQB-1100-5 (48”) Side View Top View... - Page 16 Bottom View MODEL NO: IN2636SQB-1100-5 (36”) MODEL NO: IN2642SQB-1100-5 (42”) MODEL NO: IN2648SQB-1100-5 (48”)
- Page 17 Front View MODEL NO: IN2636SQB-1100-5 (36”) MODEL NO: IN2642SQB-1100-5 (42”) MODEL NO: IN2648SQB-1100-5 (48”)
-
Page 18: Parts List
PARTS LIST MODEL NO.: IN2636SQB-1100-5 (36”) IN2642SQB-1100-5 (42”) IN2648SQB-1100-5 (48”) DESCRIPTION MODEL/SIZE PART NO. Ducting Transition L1-0505-0004 Processor Board L1-0404-2636-B Capacitor L1-0401-0120-10 Electric Component Support L1-0201-2636-12 Motor Bracket L1-0233-2642 Left X5-L1-0302-0120-802DE Blower System Right X5-L1-0302-0120-802RE IN2636SQB-1100-5 B101-2636-09-12 Bottom Casing IN2642SQB-1100-5 B101-2642-09-12 B101-2648-09-12 IN2648SQB-1100-5... -
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO. : IN2636SQB-1100-5 (36”) MODEL NO. : IN2642SQB-1100-5 (42”) IN2648SQB-1100-5 (48”) -
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter to motor and check the power supply. lights are not The wire connection is not secure. Check and tighten wire connection. -
Page 22: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE DELUXE SERIES: For one year from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 23 TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER: From the 48 contiguous states:...
-
Page 24: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please contact:... - Page 25 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
