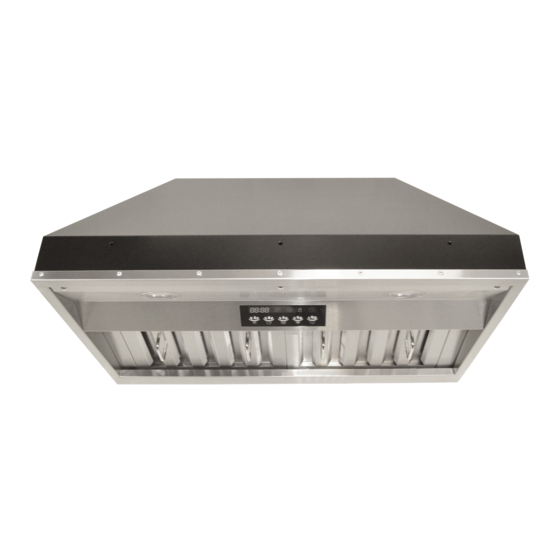

- Page 1 KOBE Brand Range Hood Model No. IN2630SQB-700 IN-026 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................ 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................9 SPECIFICATIONS ......................13 MEASUREMENTS & DIAGRAMS................. 14 PARTS LIST ........................16 CIRCUIT DIAGRAM ...................... 18 TROUBLE SHOOTING .................... -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
{I} Round Vent Cover– 1 {J} Rectangular Exhaust plate – 1 Adjustable Liner (Sold Separately) {K} Front Section of Liner {L} Rear Section of Liner FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Height of Counter Top to Wood Frame Bottom (Minimum 27"... - Page 7 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. • A straight, short vent run will allow the hood to perform more efficiently.
- Page 8 10. Liner is made up of two sections: a large, rear section with Figure 5 pre-cut for insert and a front section for a total adjustable depth between 23” and 25-3/4”. 11. Position the rear section of the liner so that it aligns with the back edge of the custom wood frame.
-
Page 9: Safety Warning
Figure 9 Duct Work Installation 19. Determine and make all necessary cuts in the wall or ceiling for the ductwork. Note: Install the ductwork before installing the insert. 20. Use steel pipe to connect the exhaust on the hood to the ductwork above. - Page 10 Final Assembly Figure 12 31. Install the oil tunnel into recess support near rear of hood. Refer to Figure 12. 32. Install Baffle filters. Angle baffle filter toward back of hood ①. Push baffle filter up until almost level ②. Slide forward into recess behind the front of hood ③.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED array, six electronic button wireless remote control, double horizontal squirrel cage blower with stainless steel baffle filter, and two bright LED light. The five control buttons are Power Control (On/Off), Speed Control (High, Medium, Low & QuietMode™), ECO Control, Timer Control and Light Control. - Page 12 = QuietMode™ Speed = Low Speed = Medium Speed = High Speed ECO Control Press ECO Control to activate and deactivate the ECO Function. The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote cleaner environment.
- Page 13 Remote Control The six control buttons for the wireless remote control are Power Control (On/Off), Light Control, Timer Control, ECO Control and Speed Controls (High, Medium, Low & QuietMode™). NOTE: Batteries are not included. AAA battery x 2 and re-install the battery door. Power Control Press Power Control to turn hood ON and OFF.
- Page 14 To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood.
-
Page 15: Specifications
SPECIFICATIONS MODEL / SIZE IN2630SQB-700 / 30” COLOR Commercial Stainless Steel CONSUMPTION / AMPERE 290W / 2.5A VOLTAGE 120V 60Hz NUMBER OF MOTORS FAN TYPE: CENTRIFUGAL Double Horizontal Squirrel Cage EXHAUST Top – 6” Round 3-1/4” x 10” Rectangular Rear –... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2630SQB-700 Side View Bottom View Back View Top View... - Page 17 Front View Ajustable Stainless Steel Liner (Sold Separately) Model No. INL36252B...
-
Page 18: Parts List
PARTS LIST MODEL NO: IN2630SQB-700 DESCRIPTION MODEL/SIZE PART NO. Round Vent Cover B101-2630-17A Rectangular Vent Cover B101-2630-17B Round Exhaust Plate B101-2630-16A Rectangular Exhaust Plate B101-2630-16B Hood Casing IN2630SQB-700 IN2630 L1-0402-0120-700 Transformer (LED Light) L1-0201-2630 Electric Component Support FA-18880-0401-B Processor Board... - Page 19 Optional Liner (Sold Separately)
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IN2630SQB-700... -
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After Installation, The power is not on. Make sure the circuit breaker and the unit’s power is motor and lights ON. Use a voltage meter to check the power supply. are not working. The wire connection is not secure. Check and tighten wire connection. -
Page 22: Disclaimer
2. PLEASE INSPECT CONTENTS OF PACKAGE(S) CAREFULLY UPON RECEIVING! We must be notified in writing of any damages and/or missing parts within the allocated days upon your receipt of package(s). Contact your local KOBE dealer or distributor or call KOBE for the time limit. -
Page 23: Warranty
WARRANTY WARRANTY CERTIFICATE KOBE Range Hoods, warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. - Page 24 KOBE Range Hoods Agent as applicable, for any traveling expenses and any costs of transporting the...
-
Page 25: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection. - Page 26 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
