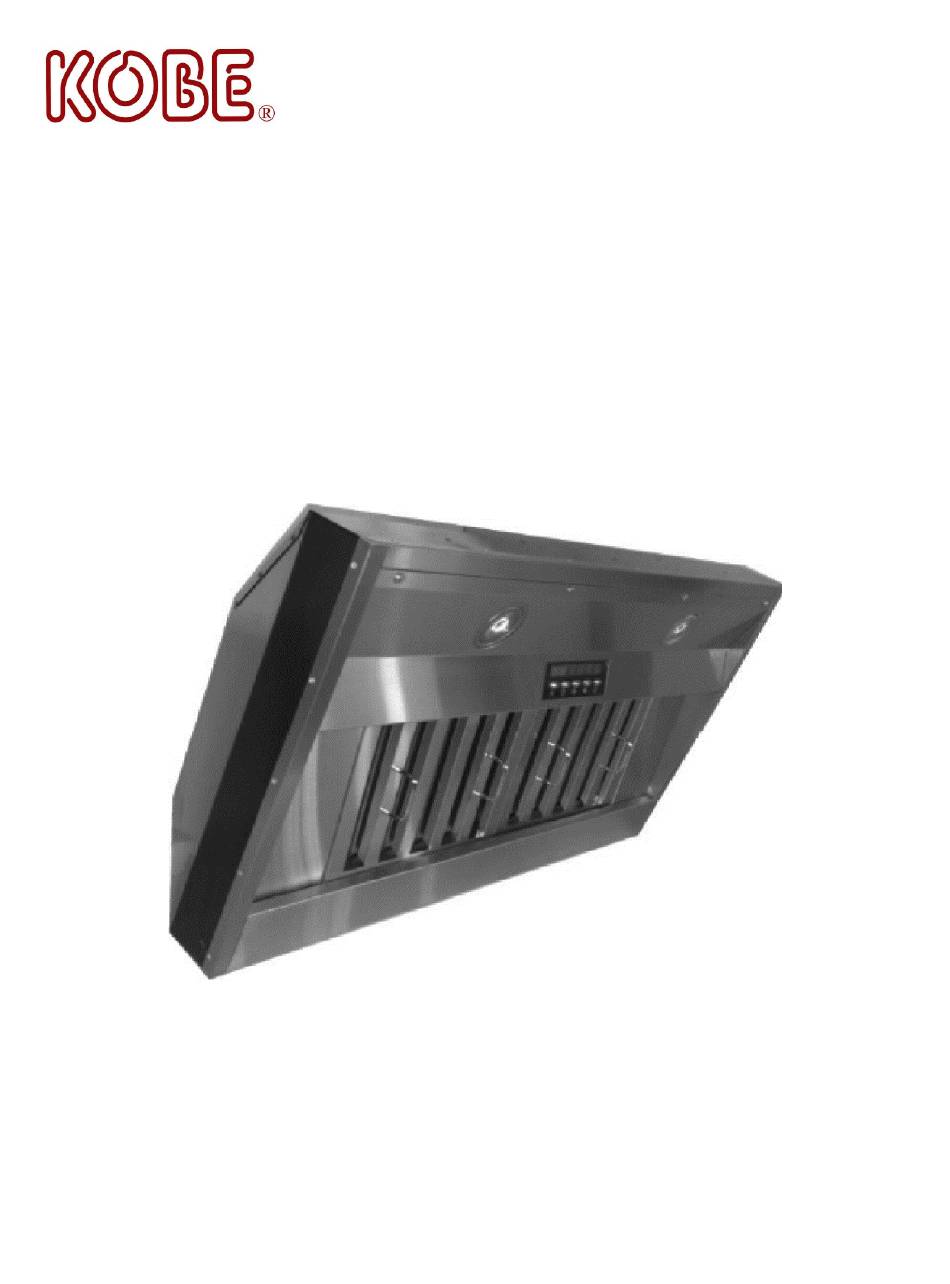

- Page 1 KOBE Range Hoods Deluxe Series IN26 SQB-650-5 Series Model No. IN2630SQB-650-5 (30”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................9 MAINTENANCE ........................12 SPECIFICATIONS ........................13 MEASUREMENTS & DIAGRAMS .....................14 PARTS LIST ..........................15 CIRCUIT DIAGRAM ........................17 TROUBLE SHOOTING ......................18 WARRANTY ..........................19 WARRANTY INFORMATION FORM ..................21... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{M} Twist-on wire connector – 3 {G} Baffle Handle Package – 1 {N} Screws – 2 {O} Screws Package M4 x 1/2" (6) 4 x 6mm (2PCS) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation Before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Height of Counter Top to Wood Frame Bottom (Minimum 26"... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. • A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 For Rear Vent Options only: Figure 5 NOTE: The blower is pre-installed for top vent. If installing as rear vent, follow the steps below: 9. For Rear 6” round installation only: Remove the Rear Round Vent Cover and Rear Rectangular Vent Cover (Refer to Figure 4). Keep screws to attach Round Exhaust Plate to rear vent.
- Page 10 Figure 9 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Page 11 Figure 12 Final Assembly 22. The oil tunnel is already installed into recess support near rear of hood. Refer to Figure 12. 23. Install baffle filters. Angle baffle filter toward back of hood ①. Push baffle filter up until almost level ②. Slide forward into recess behind the front of hood ③.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double horizontal squirrel cage blower with stainless steel baffle filters and two LED lights. The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low &... - Page 13 Speed Control (Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.) Output Display will indicate: = QuietMode™ Speed = Low Speed = Medium Speed = High Speed ECO Control The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality.
- Page 14 Baffle Change Indicator The display will indicate when baffle filter needs cleaning. Press and hold the Power Control for 5 seconds to reset the Baffle Change Indicator. Remote Control The six control buttons for the wireless remote control are Power Control (On/Off & 3 Minute Delay Shut-Off), Light Control, ECO Control, Timer Switch Control and Speed Controls (High, Medium, Low &...
-
Page 15: Maintenance
Timer Control While the fan is running, press the Timer Control to activate the Timer. The Time Indicator will flash, indicating it is ready to be set. Use the arrow keys to set the desired time. Press of will decrease the time by 1 minute. Each press of will increase the time by 1 minute. -
Page 16: Specifications
SPECIFICATIONS MODEL / SIZE IN2630SQB-650-5 / 30” COLOR Commercial Stainless Steel CONSUMPTION / AMPERE 290W / 2.5A VOLTAGE 120V 60Hz NUMBER OF BLOWERS BLOWER TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage EXHAUST Top: 6” Round 3-1/4” x 10” Rectangular Rear: 6” Round 3-1/4”... -
Page 17: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All ( ) are in millimeter. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2630SQB-650-5 (30”) Side View Bottom View Back View Top View Front View... -
Page 18: Parts List
PART LIST MODEL NO: IN2630SQB-650-5 (30”) DESCRIPTION MODEL/SIZE PART NO. Rectangular Exhaust Plate L1-0241-0001B Rectangular Vent Cover L1-0241-0002A Round Exhaust Plate L1-0241-0001A Rectangular Exhaust Adapter L1-0241-0002B Electric Component Support L1-0201-2630-1 L1-0404-2636-B Processor Board Capacitor L1-0401-0120-10 Oil Tunnel IN2630SQB-650-5 B101-2630-14A1 Blower System X5-L1-0302-0120-802RE Bottom Casing (Attached to the hood) B101-2630-09-2... - Page 19 MODEL NO.: IN2630SQB-650-5 (30”)
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: IN2630SQB-650-5 (30”) -
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check motor and the power supply. lights are not The wire connection is not secure. Check and tighten wire connection. -
Page 22: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 23 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 24: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please contact:... - Page 25 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
