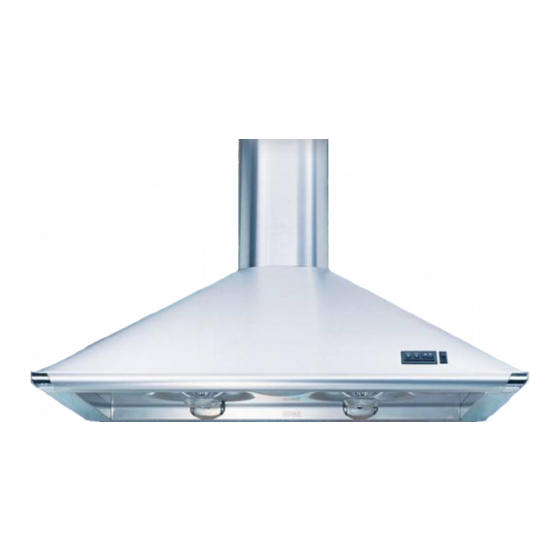

KOBE Brand Range Hood
®
CH-180 Model
CH8036SQ

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL
- READ AND SAVE THESE INSTRUCTIONS -
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L
W IR IN G
M U S T
B E
D O N E
B Y
A
P R O F E SS IO N A L
A N D
IN
A C C O R D A N C E W IT H N AT IO N A L A N D L O C A L E L E C T R IC A L C O D E S .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH8036SQ and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBE CH8036SQ

  • Page 1: Installation Instructions

    KOBE Brand Range Hood ® CH-180 Model CH8036SQ INSTALLATION INSTRUCTIONS AND OPERATION MANUAL - READ AND SAVE THESE INSTRUCTIONS - - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W IR IN G M U S T D O N E...
  • Page 2 KOBE RANGE HOODS authorized agents. Any repair carried out without the supervision of KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or bodily injuries whether indirectly by the range hood.
  • Page 3: Important Safety Instructions

    - IMPORTANT SAFETY INSTRUCTIONS - W ARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE TOP GREASE FIRE: Keep fan, optional filter and grease-laden surfaces clean.  Always turn hood ON when cooking at high heat. ...
  • Page 4: Preparing The Installa Tion Loca Tion

    CONTENTS OF RANGE HOOD PACKAGE (M ust keep all m aterials for returns or refunds) 1) KOBE range hood 2) Duct cover & screws 3) Patented installation template guide (screw position & vent outline) 4) Plastic packet of small parts containing: a) Two oval oil cups &...
  • Page 5 1) If you need to move the cooking range to install the hood, turn off the power for an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. 2) Secure mounting screws with plastic anchors (included) to clean wall surface 41” from cooking surface leaving about 1/8”...
  • Page 6 5) Use 2 long screws (included) to secure the Exhaust Duct Cover Position Panel to the wall. This will help keep the Exhaust Duct Cover in place. Repeat to secure second positioning panel for extended portion of duct cover. (Fig. 3a) {Fig.
  • Page 7: Safety Warning

    3) Repeat installation instruction from previous step 5). Making The Electrical Connection (Should Be Done By A Licensed Professional) INTERIOR OF HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF THE BOTTOM CASING NEEDS TO BE REMOVED FOR CLEANING OR SERVICING. (Neutral) (blue) 1) There are three different color wire strands to be connected.
  • Page 8 - OPERA TING INSTRUCTIONS - KOBE range hood motors can be operated independently of one another. This KOBE range hood model is operated by two 2-speed switches located on the front of the hood. Each switch controls a separate motor with high and low settings. (Fig. 5) The low setting will handle most exhaust requirements while the high speed should be used for heavier cooking.
  • Page 9 INTERIOR OF HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF THE BOTTOM CASING NEEDS TO BE REMOVED FOR CLEANING OR SERVICING. Cleaning To clean the hood surface, use only Luke-warm water and mild soap or detergent solutions. Dry up surfaces using a soft cloth.
  • Page 10 Changing the Light Bulb 1) Make sure light switch is turned off and range hood is unplugged. CAUTION: Wait until halogen light is cool to the touch before changing. 2) Gently pull out round metal support from the bottom of the halogen light. The halogen light should drop out of the light cavity.
  • Page 11 Changing the Fuse 1) Remove rear oil cups. Undo the screws at the bottom of the range hood. CAUTION: To avoid electric shock, unplug range hood FIRST. Take off the bottom panel of the hood and place on a flat surface. 2) Unscrew the black knob that holds the fuse by turning counter-clockwise and gently pull down and out.
  • Page 12: Troubleshooting Guide

    Troubleshooting Guide Problem Light does not turn on. One fan is turning faster than the other. Fan is not turning. QuietMode™ not working. LED light is off. Solution Check power is plugged in.  Check light bulb.  Check fuse. ...
  • Page 13 Installation Instruction for Optional Steel Rack (CH80R36U) Method A: Installing Steel Rack to Cabinet 1) Secure the rack support on the cabinet by using the short screws. (Step 1) 2) Place the Steel Rack Shelf on the rack support. (Step 2) 3) Attach the rack support cover over the bar of the Steel Rack Shelf first, then snap it into place at the bottom.
  • Page 14 Exhaust Duct Cover Exhaust Duct Stand Exhaust Duct Position Ring Top Casing Front Cover Side Cover (left, Right) Center Panel Direction Unit Wind Box Motor Impeller Isolate Panel Oil Tunnel Oil Holder Oil Container Center Casing Wire Box Control Unit Quiet Mode PCB Set Halogen Light Stand Halogen Light...
  • Page 15: Specification

    Model CH8036SQS Size 36” Color 304Commercial Grade Stainless Steel – Satin Finish Voltage 120V 60Hz Consumption 160 W / High 142 W / Low Quiet Mode 280 cfm = 1 Sone (38 decibels) 680 cfm / High 565 cfm / Low Transmit Twin Turbine Impeller Ducting...
  • Page 16 -Circuit Diagram- Model CH - 180...
  • Page 17: Warranty Certificate

    KOBE Range Hoods warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part which its examination shall disclose to be so defective.
  • Page 18 CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT, REQUEST SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance by the carrier he/she assumes responsibility for its safe arrival. Damages should be reported to carrier and a claim filed.
  • Page 19: Consequential Damage

    SERVICE For service contact: Should you require technical assistance, please call your dealer or our toll free number for prior authorization. KOBE Range Hoods 1039 S. San Gabriel Blvd. San Gabriel, CA 91776 Call Toll Free 1-877-289-5623 Email: info@koberangehoods.com...
