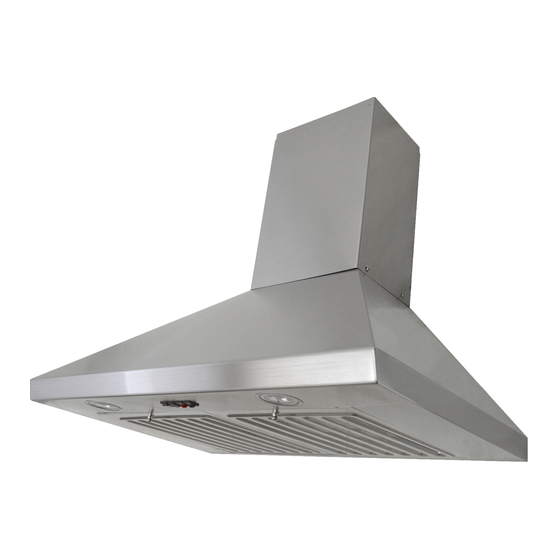

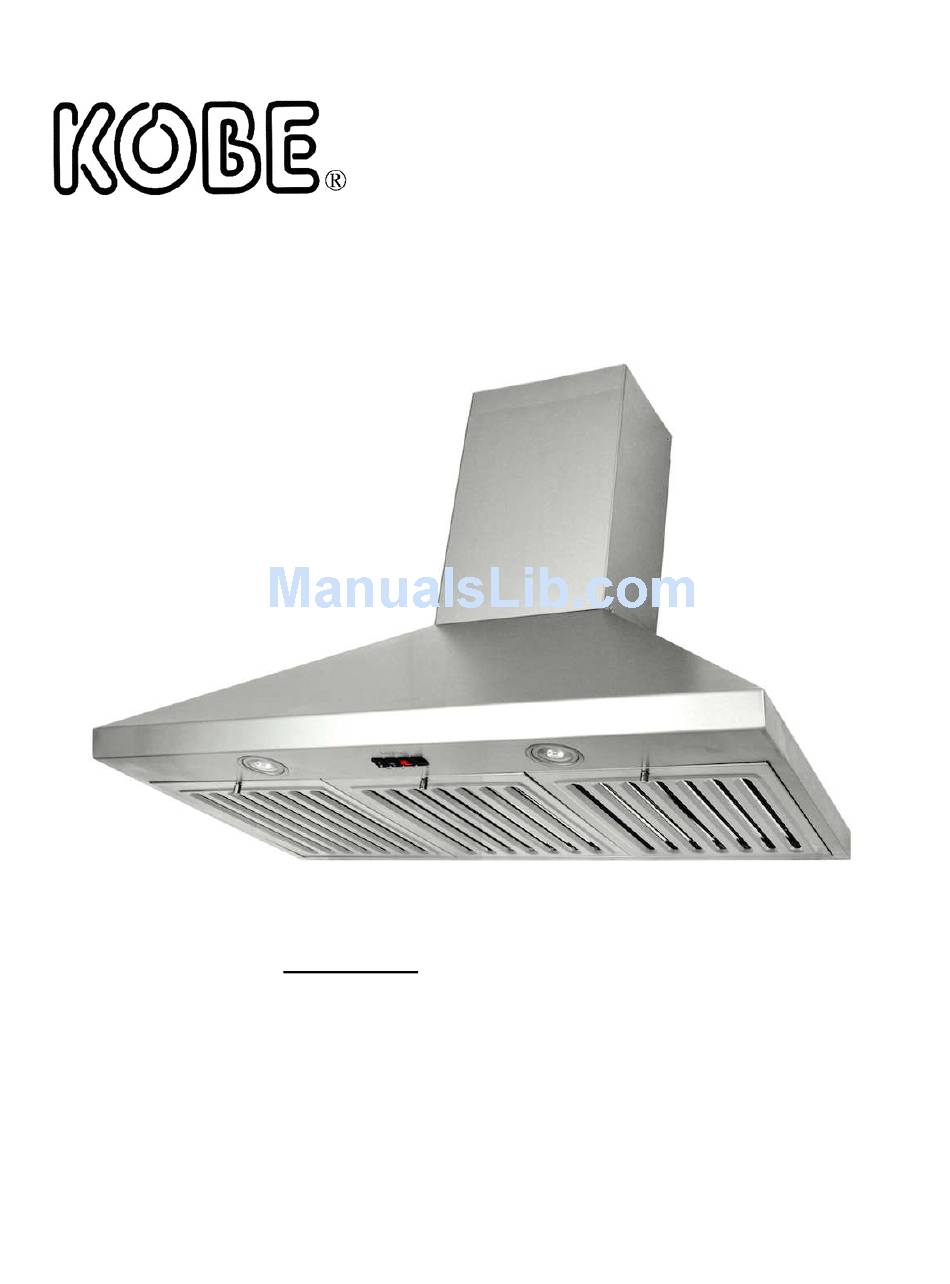

- Page 1 KOBE Range Hoods Brillia Series Model No. CHX8130SQB-1 (30”) CHX8136SQB-1 (36”) USER MANUAL INSTALLATION GUIDE...
- Page 2 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original invoice as proof of purchase and product serial number ready. 3. Call 1-877-BUY-KOBE (289-5623); or e-mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................. 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS..................8 MAINTENANCE ......................9 SPECIFICATIONS ......................10 MEASUREMENTS & DIAGRAMS................. 11 PARTS LIST ........................13 CIRCUIT DIAGRAM ...................... 15 TROUBLE SHOOTING .................... -
Page 4: Important Safety Instructions
Any repair carried out without the supervision of KOBE authorized agents will automatically void the warranty. KOBE will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
3 (36” hood) {E} Screws package {F} 6” Round Plastic Collar 3/16” x 3/8” (6 Pcs) {G} Hood Mounting Bracket Pre-installed {H} Duct Cover Mounting Bracket FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before installation To calculate the length of the installation, please refer to Table 1. (All calculation is measure in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended... - Page 8 Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. - Decide the location of venting pipe from the hood to the outside. Refer to Figure 1. - A straight, short venting run will allow the hood to perform more efficiently.
- Page 9 Figure 4 Ductwork Installation Use 6” round steel pipe (not provided) to connect the plastic exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight. Refer to Figure 4. Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
- Page 10 Figure 7 Duct Cover Installation (Cont.) NOTE: CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Secure the outer duct cover to the hood mounting bracket with 4 (3/16” x 3/8”) screws (provided). Refer to Figure 7. Secure the inner duct cover with 2 (3/16” x 3/8) screws to the duct cover mounting Bracket.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Model No.: CHX8130SQB-1 (30”) CHX8136SQB-1 (36”) Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press On/Off Control to turn on the power. -
Page 12: Maintenance
MAINTENANCE SAFETY WARNING NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. To Clean Hood Surface CAUTION NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE PAPER TOWEL ON STAINLESS STEEL. For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly. *** Regular care will help preserve the appearance of the hood. -
Page 13: Specifications
CONTROLS Rocker Switch LIGHTS 3-watt LED light x 2 HOOD DIMENSION (CHX8130SQB-1) 29-3/4” x 19-11/16” x 12-3/16” (W x D x H) (CHX8136SQB-1) 35-1/4” x 19-11/16” x 12-3/16” OPTIONAL ACCESSORIES 1) 30" Stainless Steel Back Panel (W x D x H) (SSP30) 30"... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. Front View Bottom View Bottom View... - Page 15 Model No.: Model No.: RA0946DC RA0930DC Inner Inner (RA0930DC) (RA0946DC)
-
Page 16: Parts List
PARTS LIST MODEL NO.: CHX8130SQB-1 (30”) CHX8136SQB-1 (36”) MRH-CHX8130SQB-30 MRH-CHX8136SQB-30... - Page 17 MODEL NO.: CHX8130SQB-1 CHX8136SQB-1 CHX8130SQB-1 CHX8136SQB-1...
-
Page 18: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CHX8130SQB-1 CHX8136SQB-1... -
Page 19: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After Installation, The power is not on. Make sure the circuit breaker and the unit’s power is both motors and ON. Use a voltage meter to check the power supply. lights are not The wire connection is not secure. Check and tighten wire connection. -
Page 20: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. -
Page 21: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/ BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 22 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE Service Center (USA Only)
-
Page 23: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA Only) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada or... - Page 24 KOBE Range Hoods 11775 Clark Street Arcadia, CA 91006 USA www.KOBERangeHoods.com This hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a this hood overseas is at your own risk and will void your warranty.
