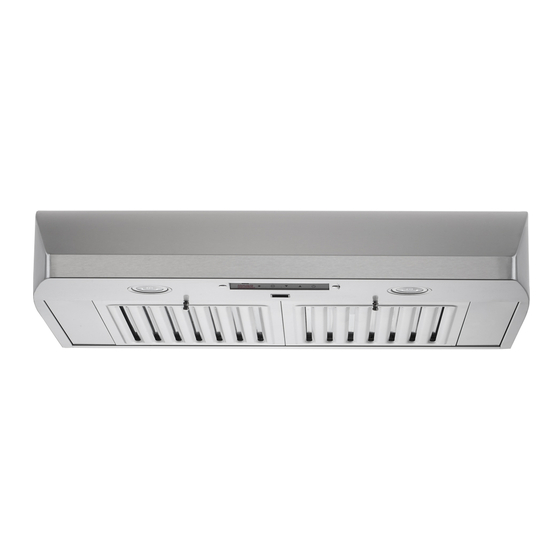

- Page 1 KOBE Range Hoods Premium Series CH22 SQB6-XX Series Model No.: Under Cabinet: CH2230SQB6-XX (30”) CH2236SQB6-XX (36”) Wall Mount CH2230SQB6-WM-XX (30”) CH2236SQB6-WM-XX (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to customer.service@koberangehoods.com. NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED...
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................. 1 COMPONENTS OF PACKAGE ..................3 INSTALLATION ....................... 4 OPERATING INSTRUCTIONS ..................11 MAINTENANCE ......................14 SPECIFICATIONS ......................15 MEASUREMENTS & DIAGRAMS ................. 16 PARTS LIST ........................18 CIRCUIT DIAGRAM ...................... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not hold responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire 1) SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
Spacer attached Wire caps (3) to hood (30” only) M4 x 1-1/2” (5) M4 x 3/4" (4) M4 x 1-1/4” (4) • FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880... -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches). - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to... - Page 8 SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents Under Cabinet Installation ………………………………………………………... Wall Mount Installation …………………………………………………………….
- Page 9 UNDER CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short vent run will allow the hood to perform more efficiently.
- Page 10 3. Using references on Table 1 and measurements Figure 4 on Page 16, center the hood in place beneath the cabinet and flush with the front of the cabinet. 4. Draw electrical wires through cabinet access opening. 5. Use electrical drill to remove the knockout holes on top of the range hood.
- Page 11 WALL MOUNT INSTALLATION **This installation required to have Duct Cover Model No.: CH1120DC-1 Figure 5 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
- Page 12 Figure 8 Hood Installation CAUTION: If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. And use a protective covering to protect cooktop and/or countertop from damage.
- Page 13 Figure 10 Duct Cover Installation 8. Mark the position of the Duct Cover-Mounting Bracket {M}. Use reference E from Table 2 and measurements on Page 16-17. Attach and secure Duct Cover-Mounting Bracket {M} with two screws (provided). (Figure 10) NOTE: Inner duct cover will cover the duct cover-mounting bracket.
-
Page 14: Operating Instructions
OPERATING INSTRUCTIONS Button Power Light Decrease Fan Speed ECO Mode Increase Fan Speed LED Display Indicator ECO Mode Icon Auto Mode Icon QuietMode™ Speed #1 Speed #2 Speed #3 Speed #4 Speed #5 Auto Mode • The hood has advanced built-in flame and temperature sensors. When the sensor detects the presence of a flame or fire, the hood will turn on automatically. - Page 15 Delay Shut-off • Automatic: After turning off your range and the temperature of the hood equals the surrounding room temperature; the hood will automatically activate the 5-minute delay shut-off. Manual: To activate the 5-minute delay shut-off manually, press and hold the power button for about 3 seconds.
- Page 16 Light Control Press the light button to turn the LED lights ON. Each press of the button will cycle the light intensity through bright, medium bright, dim and off. Lights are controlled independently from power and speed control. Lights will not turn off by itself in delay shut-off, so please be sure to turn them off first before setting on delay shut-off mode.
-
Page 17: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 18: Specifications
SPECIFICATIONS CH2230SQB6-XX / 30” MODEL / SIZE CH2236SQB6-XX / 36” COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 360W / 3A Power Rating 120V / 60Hz NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Twin Vertical Turbine Impeller EXHAUST Top: 6”... -
Page 19: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - FOR UNDER CABINET - CH2230SQB6-XX (30”) MODEL NO.: CH2236SQB6-XX (36”) - FOR WALL MOUNT (DUCT COVER IS REQUIRED) - CH2230SQB6-WM-XX (30”) MODEL NO.: CH2236SQB6-WM-XX (36”) - Page 20 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket ***Duct Cover Support...
-
Page 21: Parts List
PARTS LIST CH2230SQB6-XX and CH2230SQB6-WM-XX (30”) MODEL NO.: CH2236SQB6-XX and CH2236SQB6-WM-XX (36”) DESCRIPTION MODEL / SIZE PART NO. 6” Exhaust Plate L1-0241-0001-A 6” Round Plastic Exhaust L1-0505-0003 LED Light (3W) x 2 L1-0403-0301 Control Panel Support L1-0207-3830 Control Unit L1-0404-F601-A Capacitor Support L1-0201-F2230 Capacitor (12uF + 12uF/250V) - Page 22 CH2230SQB6-XX and CH2230SQB6-WM-XX (30”) MODEL NO.: CH2236SQB6-XX and CH2236SQB6-WM-XX (36”)
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM CH2230SQB6-XX and CH2230SQB6-WM-XX (30”) MODEL NO.: CH2236SQB6-XX and CH2236SQB6-WM-XX (36”) -
Page 24: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a voltage installation, both motors meter to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 25: Warranty
TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 26 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercial, outdoor or other usage other than residential indoor usage.
-
Page 27: Warranty Information Form
3. Serial No. : ______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 28 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
