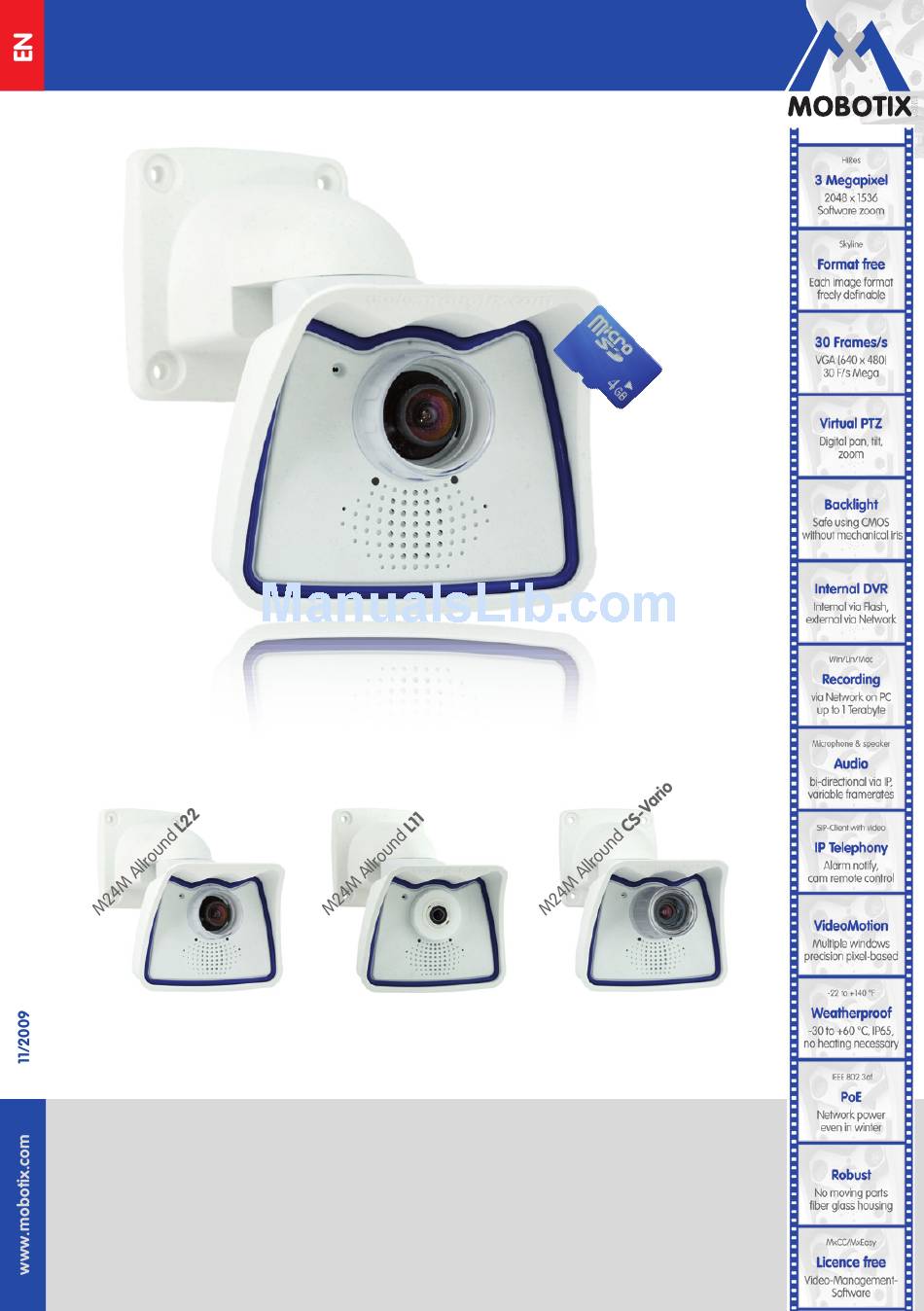

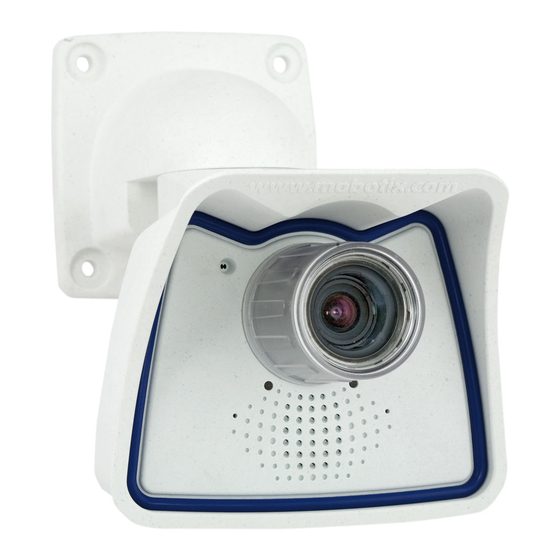

M24M: Camera Manual
More Camera For Less. Guaranteed!
The M24M series from MOBOTIX offers extremely compact, cost-effective and exceptionally powerful
allround cameras with the widest range of lenses, including panorama version. Fully equipped with
IP66-certified housing and long-term internal storage on a MicroSD card.
HiRes Video Innovations
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its
decentralized concept has made high-resolution video systems cost efficient.
MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com
The HiRes Video Company
www.mobotix.com > Support > Manuals
Latest PDF file:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M24M Allround CS-Vario and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobotix M24M Allround CS-Vario

Summary of Contents for Mobotix M24M Allround CS-Vario

  • Page 1 > Support > Manuals HiRes Video Innovations The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems cost efficient. MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com...
  • Page 2 Admin User Name: Default User Name: admin Password: meinsm Admin Password: Note MOBOTIX offers inexpensive seminars that include workshops and practical exercises: Basic Seminar Advanced Seminar three days, two days. For more information, please visit www.mobotix.com. © MOBOTIX AG • Security-Vision-Systems • Made in Germany...

  • Page 3: Table Of Contents

    2.2.5 Dimensions (mm) Of Wall Mount 2.2.6 Drilling Template (mm) Wall And Ceiling Mount Available M24M Accessories - Overview Mounting The Camera With Wall Mount 2.4.1 Mounting Instructions 2.4.2 VarioFlex Wall Mount © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 4 3.2.4 First Images And Network Parameter Configuration In MxEasy 3.2.5 Starting The Camera With An Automatic IP Address (DHCP) 3.2.6 Starting The Camera With The Factory IP Address © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 5 Download the latest version of this manual and the MxEasy and MxControlCenter manuals as PDF files from www.mobotix.com (Support > Manuals). All rights reserved. MOBOTIX, MxControlCenter, MxEasy, ExtIO and CamIO are internationally protected trademarks of MOBOTIX AG. Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation.

  • Page 6: Foreword

    L11 lens (image angle of 180°) for high-resolution panorama images and with com- mercial CS-mount lenses. This Camera Manual will give you an initial overview of the innovative MOBOTIX concept that is at the core of this technology. This includes all the information you need to unpack and install the camera (Chapter 2) and to view initial images on a PC (Chapter 3).
  • Page 7 /146 M24M - High-resolution video surveillance with optimal weather protection (IP66) MOBOTIX original Double Panorama image High-Resolution Double Panorama Original full image © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 8: The Mobotix Concept

    Technology Leader Of Network Cameras In a short time, MOBOTIX has gained the second place in Europe and the fourth place worldwide in terms of market share. MOBOTIX has been producing megapixel cameras exclusively for years and, in this area, ranks as the global market leader in high-resolution video systems with a market share of over 60%.
  • Page 9 The PC now serves purely for viewing, not for analysis or recording. As a result, MOBOTIX cameras can record in response to an event, even without the PC being switched on, and digitally store the videos with sound.

  • Page 10: Mobotix Hemispheric Technology

    For instance, one single hemispheric camera replaces the time-consuming and expen- sive installation of several standard cameras. The first of its kind in the world, this camera is evidence of the MOBOTIX commitment to innovation as the global leader in megapixel video security systems.
  • Page 11 Virtual PTZ 2 Highly User-Friendly The full image from a hemispheric lens (Fisheye) is difficult to analyze. MOBOTIX solves this problem by perfectly straightening the uneven lines in the live image using the camera software. Since the image distortion correction of the hemispheric view and the generating of the panoramic view take place in the camera itself, no additional load is placed on the viewer PC, unlike a “standard”...

  • Page 12: Superior Storage Solution

    Central PC is a bottleneck and a risk for the total system MOBOTIX Stores HiRes Cost Efficiently MOBOTIX solves the PC storage bottleneck problem using a unique and yet amazingly effective method - through the camera itself. High-resolution video with lip synchronized sound is saved either remotely over the network or locally on flash memory devices (com- mercial SD or CF cards, USB memory).
  • Page 13 • Ring buffer: Old images can be overwritten automatically or automatically deleted after a specified period of time MOBOTIX Stores Data Reliably The MOBOTIX Flash file system (MxFFS) prevents unauthorized persons from reading or transferring the internally stored data, even if the card is stolen. MOBOTIX Only Saves What Is Necessary...

  • Page 14: Added Security Value

    SSL when they are transferred over the network. Notification Of Failure MOBOTIX cameras will automatically report any impairment or failure. This ensures maxi- mum reliability and readiness for use. Subsequent Searches Events rarely confine themselves to just one spot.
  • Page 15 /146 Sound Increases The Chance Of Detection In the event of an alarm, MOBOTIX cameras can turn on their built-in microphones and record lip-synchronous sound. They are therefore an even greater help in analyzing a situation and easing clarification. In addition, the video system can be used for bidirectional communication via a loudspeaker/microphone.

  • Page 16: Cost Benefits And Technical Advantages

    & recording parameters can be camera specific Additional functions and other extras included Audio support, lens, wall mount and weatherproof housing [-30°C... +60°C (-22°F... +140°F)] are included; microphone & speaker available in certain models © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 17 SIP standard with automatic alarm call and remote control MxControlCenter included Dual screen technology with building plans, free camera positioning, event search, image processing, lens distortion correction and PTZ support © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 18: Introduction

    High Frame Rates Of Up To 30 fps Like all other MOBOTIX cameras, the M24M models can generate live video streams with high frame rates and up to 3.1 megapixels image resolution (QXGA with 2048 x 1536 pixels). Up to 30 fps are generated at a megapixel resolution of 1280 x 960 pixels. Even at 3.1 megapixels, the camera will still generate up to 20 fps!
  • Page 19 Thanks to their low power consumption of 3 watts and the total absence of mechanical moving parts, M24M cameras feature the highest operating temperature range (-30°C to +60°C, or -22°F to 140°F). Since MOBOTIX cameras neither fog up nor require heating, power can be supplied via the network cabling according to the PoE standard IEEE 802.3af.
  • Page 20 1/2" sensors or larger that are designed for megapixel image sensors can be used. In comparison with MOBOTIX fixed lenses, Vario lenses are less robust and less reliable in the long run. For this reason, Vario lenses are typically used in applications where recording conditions change frequently, for example, intermittent surveillance of construction sites.
  • Page 21 75 meters. MOBOTIX original image (L135 Tele lens) Or even the serial number of a bill from a distance of two meters. MOBOTIX original image (L135 Tele lens) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 22 This provides the features of a mechanical PTZ camera without the disadvantages of maintenance and wear. Quick and easy navigation with a USB joystick vPTZ vPTZ © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 23 "visible" portion of the image; the rest is lost and cannot be examined later on. For this reason, MOBOTIX has added the new full image recording feature to the M24M. This will not store the currently viewed image that reflects the pan/tilt position and the zoom setting chosen by the user, but the full sensor image –...
  • Page 24 For this reason, interchangeable lenses cannot be used with this version. The camera's lens is extensively and precisely fine-tuned in the factory and should not be adjusted. L22–L135 CS Vario © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 25 /146 M24M Overview © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 26: M24M With Hemispheric Special L11 Lens

    Full image at 3.1 megapixel (2048 x 1536 pixels) Corrected image after panorama correction Economical bandwidth usage due to smaller, camera-corrected images (no loss of Panorama image at 0.6 megapixel (1280 x 480 pixels) image information) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 27 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 28 – a superb overview for the user. MOBOTIX original Double Panorama image Original full image © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 29 It does so by moving through the standard views or by showing the first 16 saved camera views (one after the other like in a slide show). vPTZ & Zoom © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 30 Original MOBOTIX full image Original Fisheye Image: Full Image Original MOBOTIX image Corrected and zoomed full image Corrected Image Section: Normal © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 31 (right) Full image (left) and "Double Panorama" display mode (right) Full image (left) and "Panorama Focus" display mode (right) Full image (left) and "Surround" dis- play mode (right) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 32: M24M: Hires Allround Camera With Widest Range Of Lenses

    If data protection requires it, microphone and audio recording can be irreversibly switched off by securing the hardware. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 33 /146 M24M: HiRes Allround Camera With Widest Range Of Lenses © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 34: General Mobotix Camera Functions

    M24M Camera Manual: INTRODUCTION General MOBOTIX Camera Functions Like all MOBOTIX cameras, the M24M line has a variety of software functions: from motion detection and long-term storage right through to alarm notification via video IP telephony. Unlike in camera systems from other manufacturers, it is not necessary to buy and install additional software on the computer.
  • Page 35 Long-Term Storage On File Servers Included MOBOTIX cameras have an integrated long-term storage system for Linux, Windows, and Mac OS X computers. Every camera manages its own ring buffer storage to a shared folder.
  • Page 36 The cameras can use network/wi-fi, GSM/GPRS/UMTS (3G), or Internet connections for this purpose. Integrated Power Over Ethernet Power is supplied as Power over Ethernet via the network cabling using the MOBOTIX NPA- No heating required – PoE is no problem, PoE-Set or from a PoE-compatible switch (both according to the IEEE 802.3af PoE standard).
  • Page 37 No license costs Free updates MxEasy – Intuitive Application For Windows, Apple And Linux The new MOBOTIX MxEasy aims at easy operation of the most important camera functions Suitable for up to 16 MOBOTIX cameras through its intuitive user interface, thus creating a new user experience when viewing and controlling MOBOTIX cameras.
  • Page 38 A Linux version will be available soon. Diverse Installation Options Not only can MOBOTIX cameras be used under almost all weather and temperature conditions, they also offer suitable installation materials from a wide range of accessories for any conceivable application scenario.
  • Page 39 SSL-protected transmission of the video sequences and the data (using SSL encryption and X.509 certificates). Free Software Updates (www.mobotix.com) Free software MOBOTIX provides software updates free of charge at regular intervals that improve updates at and expand the camera’s functionalities. Chapter 6, Software Update , in the Software www.mobotix.com Manual provides more information on the process.

  • Page 40: Lens Options, Hardware And Software Features

    M24M Camera Manual: INTRODUCTION Lens Options, Hardware And Software Features MOBOTIX offers the M24M with lenses in three different classes of focal length. Since MOBOTIX cameras are backlight-proof, none of these lenses requires a mechanical auto iris, thus making the camera extremely robust and maintenance-free. MOBOTIX lenses deliver good image quality even when using maximum digital zoom.
  • Page 41 Another benefit is that you can easily set a 35 mm camera (analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the same field of vision. This approach greatly facilitates lens selection.
  • Page 42 Speaker and Microphone Warranty (months) Concealed cabling M24M Software Features Digital zoom (continuous) with panning Additional storable views Full image recording Video motion window Exposure windows Echo elimination © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 43 M12 lenses included if requested by customer Image sensor Color Color Color & B/W Color & B/W Standard lens for software version Audio support (Microphone/Loudspeaker) -/L** -/L** M/L** M/L** © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 44: Installation

    2.1.1 Flexible Installation Using VarioFlex Mount Like all MOBOTIX cameras, the M24M is extremely flexible in terms of how and where it can be installed. An M24M can be used for both indoor and outdoor applications. In fixed or mobile applications - constantly changing locations or in/on vehicles of any kind. The M24M cameras have been certified weatherproof according to IP66 and can work reli- ably in temperature ranges from -30 °C to +60°C (-22°F to +140°F) without extra housing,...
  • Page 45 (does not apply to the M24M-Sec with hemispheric L11 lens). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 46: Mounting To A Ceiling Or Wall

    360° horizontally and 110° vertically (from -90° to +20°). Ceiling mount 360° Mounting to a ceiling • horizontally: 360° • vertically: -90° to +20° © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 47: Mounting Tips For The M24M With L11 Lens (180° Fisheye)

    Identification Recognition Perception 1.50 m MOBOTIX recommen dation Mounted in the center of the wall for optimal panorama images MOBOTIX original 180° Panorama image (L11 lens) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 48 M24M in rectangular rooms so that the camera lens is first directed towards the center of the two longer walls and then vertically tilted towards the ground. M24M ceiling installation with 90° tilt for verti- cal view downwards © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 49: Optional: Mounting To A Pole (With Accessories)

    2.1.4 Optional: Mounting To A Pole (With Accessories) Installation on round poles is frequently used for cameras that are intended for mobile outdoor use. For this purpose, MOBOTIX recommends using the pole mount, which is available for the M24M as an accessory and is almost indestructible (MX-MH-SecureFlex- ESWS).

  • Page 50: Network Connection And Power Supply, Ups

    M24M. with the M24M Note The MOBOTIX M24M can be powered by switches or routers that support the PoE (Power-over-Ethernet) standard and conform to IEEE 802.3af. Advantages of PoE power supply: • Advantages of centralized backup power supply are available via network •...

  • Page 51: Preparing The Camera Connections, Wall Outlets

    Once the camera position, the position of the cable connectors, and the method of power supply have been decided upon, the cabling can be installed. Before mounting the MOBOTIX M24M, you should make sure that the network connections have been properly tested, so that the proper functioning of the camera is guaranteed.

  • Page 52: Wiring, Fire Prevention, Lightning And Surge Protection

    When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, fire prevention, and protection against lightning. MOBOTIX cameras are protected against the effects of small electrical surges by a range of measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur.
  • Page 53 More information on preventing lightning or surge damage is available from organizations such as the International Electrotechnical Commission (www.iec.ch) or from the man- ufacturers of lightning and surge protectors (for example, Dehn: www.dehn.de). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 54: M24M-It/Secure: Delivered Parts, Components, Dimensions

    1.11 Stainless steel washers 6.4 mm 1.12 Screw anchors S8 1.13 Cable retainer with bayonet catch (patch cable, Mini USB) 1.14 4 GB MicroSD card 1.15 Lock plug Mini USB © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 55: Camera Housing And Connectors

    /146 M24M-IT/Secure: Delivered Parts, Components, Dimensions 2.2.2 Camera Housing And Connectors The MOBOTIX M24M consists of the camera in the weatherproof housing and the VarioFlex mount. Connectors • Network (Ethernet network including PoE supply) • Mini USB (e.g. for ExtIO) •...
  • Page 56 The cable can now be pulled out of the camera. Open the cable retainer by rotating the bayonet catch to the marked position Bayonet catch open © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 57 (opening points to the right). Rotate the bayonet catch clockwise to the "filled circle" symbol (see diagram). The cable is now properly retained. Close the cable retainer by rotating the bayonet catch to the marked position Bayonet catch closed © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 58: Dimensions (Mm) For Wall Installation

    /146 M24M Camera Manual: INSTALLATION 2.2.3 Dimensions (mm) For Wall Installation 106,5 140,5 2.2.4 Dimensions (mm) For Ceiling Installation 106,5 106,5 140,5 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 59: Dimensions (Mm) Of Wall Mount

    Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 60: Available M24M Accessories - Overview

    Available M24M Accessories - Overview NPA-PoE Set (MX-NPA-PoE-EU and MX-NPA-PoE-INT) The MOBOTIX Network Power Adapter Set (NPA-PoE set) is a high-quality, robust, ultra- compact, and, above all, multifunctional PoE injector with three connectors (network, camera/PoE device, PC) and a universal power supply unit with adapter plugs.
  • Page 61 M24M due to the modified system platform. A new CamIO especially revised for this camera series is currently in the planning stages and will be available in 2010. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 62 • Mini USB: Directly connected to the camera using a separately available cable (max. 5 m) • Ethernet: Connect the ExtIO over a standard PoE switch; maximum distance to camera 200 m © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 63 Mx2wire Mx2wire Two-wire cable Ethernet cable Max. 500 m • PoE out: max. 7 watts RJ45 RJ45 PoE switch/injector IEEE 802.3af TCP/IP © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 64: Mounting The Camera With Wall Mount

    When mounted to a wall, the camera can be turned or tilted as follows: • horizontally: 180° • vertically: 110° 180° +20° -90° © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 65 The connection to the camera patch cable can be established using a suitable adapter within the wall mount. Pliers to break through a cable guide © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 66: Required Tools

    • MOBOTIX drilling templates (at the end of this manual) • Scissors to cut out the template • Pen to mark the drill holes • Materials and any tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable Caution Never use screws with recessed heads to install the VarioFlex mount as these screws will destroy the mount.

  • Page 67: Procedure

    RJ45 outlet. Make sure that shrink tubing the cables are not bent or squashed. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 68 Check image sections on the computer monitor. Note The VarioFlex mount and Wall Mount must always be used for wall installation. Use the VarioFlex Ceiling Mount for ceiling installation! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 69 /146 Mounting The Camera With Wall Mount © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 70: Mounting The Camera With Ceiling Mount

    When mounted to a ceiling, the camera can be turned or tilted as follows: • horizontally: 360° • vertically: 110° Wandmontage +20° +20° 360° Mounting to a ceiling • horizontally: 360° • vertically: -90° to +20° -90° -90° © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 71 The camera patch cable must be connected to the network cable using a suitably sealed adapter. Pliers to break through cable guides © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 72: Required Tools

    • MOBOTIX drilling templates (at the end of this manual) • Scissors to cut out the template • Pen to mark the drill holes • Materials and any tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable Caution Never use screws with recessed heads to install the VarioFlex mount as these screws will destroy the mount.

  • Page 73: Procedure

    (drilling depth just slightly less than screw length). 4. Attach ceiling seal: Place the white rubber seal with the groove on the edge of the ceiling mount. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 74 Check image sections on the computer monitor. Note Use the VarioFlex Ceiling Mount for ceiling installation. The VarioFlex mount and Wall Mount must always be used for wall installation. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 75 /146 Mounting The Camera With Ceiling Mount © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 76: Mounting The Camera With Pole Mount

    Mounting The Camera With Pole Mount 2.6.1 Mounting Instructions If you are intending to mount the camera on a pole, you should consider using the MOBOTIX M24M Pole Mount. This mount is made of 3 mm powder-coated stainless steel (white) and has been designed specifically for outdoor use.

  • Page 77: Pole Mount (Mx-Mh-Secureflex-Esws)

    When mounted to a pole, the camera can be turned or tilted as follows, just like wall installation: • horizontally: 180° • vertically: 110° 180° +20° -90° Pole Mount Dimensions Width: 140 mm Depth: 45 mm © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 78 The following additional tools are required for installation: • Screwdriver • Materials and any tools needed to connect the pre- installed MOBOTIX network cable in the camera with the on-site network cable. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 79: Procedure

    5. Connect the cable: Connect the on-site network cable with the camera patch cable via adapter in the cavity socket of the wall mount. Make sure that the cables are not bent or squashed. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 80 Check image sections on the computer monitor as well. Note The VarioFlex Wall Mount must always be used for pole installation. The VarioFlex Ceiling Mount should not be used. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 81 /146 Mounting The Camera With Pole Mount © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 82: Adjusting The Camera And Changing The Lens

    30 degrees clockwise or counterclockwise and can be optically restraightened -30° by clicking on the icons (see image). HORIZON CORRECTION Rotate image up to -30° Rotate image up to +30° © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 83: Changing The Lens

    Only lenses with CS or C mounts may be used with the CSVario version of the M24M (Secure model only). Only standard MOBOTIX lenses (L22, 32, 43, 65, 135) with M14 thread may be used with standard versions of the M24M (Secure, IT and Basic). With the M24M 180°...

  • Page 84: Replacing The Microsd Card

    Gently push on the MicroSD card in the card slot of the camera. The card will be released from the slot and can then be removed from the camera. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 85: Inserting The Microsd Card

    External File Server / Flash Device. Once the camera has been rebooted, it auto- matically activates recording. 6. If you have inserted a new MicroSD card, it must first be formatted as described in Section 3.6 MicroSD Card Recording. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 86: Network And Power Connection

    Network And Power Connection 2.9.1 Notes On Cable Lengths And Power Supply • Power may only be supplied to the camera via its Ethernet connector. A MOBOTIX PoE adapter or similar high-quality PoE product is recommended to provide the power supply via the network cable (see Section 2.3 Available M24M Accessories ): •...

  • Page 87: Power Supply Using A Switch

    /146 Network And Power Connection The MOBOTIX factory default is PoE class 2. This default is usually fine and nothing needs Variable PoE: multiple cameras can be oper- to be changed. However, if the lower power level class 1 is sufficient for your application, ated simultaneously it may –...

  • Page 88: Power Supply When Connected Directly To A Computer

    Connect the factory pre-installed cable of the camera to the Ethernet connector of the PoE switch/router. The switch/router must support the PoE standard IEEE 802.3af. LAN/www Switch/router The IP addresses in the diagram are shown only as an example (10.8.0.11/255.0.0.0) Camera (10.8.0.99) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 89: Camera Startup Sequence

    L key LEDs Notes During the startup sequence of the camera, the LEDs will always light up, even if they have been deactivated in Admin Menu > LED Setup. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 90: Operating The Camera

    (for example, 10.8.0.99). However, local computer networks usually have IP addresses in the 172 or 192 ranges. In order to access a MOBOTIX camera via the network, the camera needs to obtain an IP address in the same address range. You can set up the network parameters of the MOBOTIX camera using one of the following methods: Manually, using MxCC and MxEasy or by DHCP.

  • Page 91: Manually Using A Computer In The 10.X.x.x Ip Address Range

    • The computer or the network needs to operate in the 10.x.x.x IP address range or needs to be able to access such a network. • The setup does not work automatically. • You need to know the relevant network parameters. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 92: Automatically Using Mxcontrolcenter Or Mxeasy

    MxControlCenter or MxEasy (see Sections 3.2.3 and 3.2.4). You can also use one of these applications to automatically configure the network parameters of MOBOTIX cameras that are not operating on the same IP address range as the computer.

  • Page 93: Automatically Using Dhcp

    • The camera needs to be physically accessible as you need to press a key on the camera housing to boot it using DHCP. • Requires a running DHCP server on the network. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 94: First Images And The Most Important Settings

    IP address over the speaker. 3.2.1 Manually Setting Up The Network Parameters In A Browser In order to manually set up the network parameters of the MOBOTIX camera, you need a computer that is using a 10.x.x.x IP address. The computer's network parameters usually have to be changed for this purpose.
  • Page 95 Pressing Enter displays the user interface of the MOBOTIX camera (see also Section 3.2.2 First Images And The Most Important Settings In The Browser ). 2. Click the Admin Menu soft key in the user interface of the MOBOTIX camera. The Quick Installation starts automatically once the admins...

  • Page 96: First Images And The Most Important Settings In The Browser

    3.2.2 First Images And The Most Important Settings In The Browser Once the MOBOTIX camera has been connected to the power supply and to the network, you can access the user interface with the live camera image in the Web browser. Internet Explorer, Firefox, Safari, Konqueror, Opera, Camino, or any other graphical browser with activated JavaScript is suitable.
  • Page 97 For more information on camera screens, see Section 4.1.1 Camera Screens in the Browser , the Camera Software Manual Part 2 , or the online help of the camera's browser interface. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 98: First Images And Network Parameter Configuration In Mxcontrolcenter

    If you do not have the installation CD or just want to install an update, you can download the latest Windows installer from the MOBOTIX website as an MSI file and install it manu- ally. The latest versions are available at www.mobotix.com in the Support > Software Downloads >...
  • Page 99 Camera preview Note Video sources in this context not only refer to MOBOTIX cameras, but also to third- party IP cameras, file server paths, MxPEG clips and analog cameras connected via MxServer (e.g. analog dome cameras). These video sources are not found automati- cally and need to be added manually.
  • Page 100 Note MxControlCenter finds all MOBOTIX cameras, even when the computer and the cameras are not located in the same subnet. Select the cameras that you would like to display in a Layout (a view with cameras) and click Add selected video sources.
  • Page 101 (OK). Confirm the Open Video Sources dialog again by clicking OK. Defining Additional Video Sources In addition to the MOBOTIX cameras that are found automatically, you can also manually add video sources to the list of video sources for MxControlCenter.
  • Page 102 Otherwise, the selected video sources will only be added to the MxCC system and can then be used to create layouts at a later date. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 103: First Images And Network Parameter Configuration In Mxeasy

    If this is not the case or if you would like to update to a newer version, you can download the latest MxEasy version for your operating system from the MOBOTIX website ( www.mobotix.com > Support > Software Downloads in the MxEasy section).
  • Page 104 MxEasy will be displayed in a different color. If all the desired MOBOTIX cameras are highlighted as Accessible in the video source list, you can proceed to the Selecting Cameras section below. Cameras with the status Invalid Network can be reconfigured for the "proper"...
  • Page 105 In addition, you can display further information of a camera and change the user name/password of a camera. For more information on this topic, see the MxEasy User Manual. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 106 If MOBOTIX cameras with a hemispheric L11 lens are selected in the selection list, MxEasy Assistant displays the dialog shown here for each of the cameras. Here, you can determine the mounting position and the desired image view of each camera (wall or ceiling).
  • Page 107 Double-click on a small camera panel to move this camera's live image to the large panel. Use Cameras > Add Cameras at any time to add MOBOTIX cameras to MxEasy (max. 16 cameras in total). © MOBOTIX AG • Security-Vision-Systems • Made in Germany...

  • Page 108: Starting The Camera With An Automatic Ip Address (Dhcp)

    M24M Camera Manual: OPERATING THE CAMERA 3.2.5 Starting The Camera With An Automatic IP Address (DHCP) If your network has a DHCP server, you can start the MOBOTIX camera with DHCP support. In this case, the DHCP server automatically assigns and announces an IP address.

  • Page 109: Starting The Camera With The Factory Ip Address

    As opposed to resetting the camera using Admin Menu > Reset configuration to Users and passwords will factory defaults , the user information will not be reset if the camera is booted using be changed! the factory IP address. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 110: Virtual Ptz

    Settings and uncheck the Lock Mouse Wheel Zoom item. Then save the settings by clicking Set and Close. You can now use the scroll wheel to zoom + (roll upwards) or zoom - (roll downwards). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 111 PTZ Features), and the MxControlCenter manual, Section 2.4.6 (Using the vPTZ Features) and Section 3.1.4 ("PTZ Controls" in the sidebar panel). The latest versions of all manuals are available at www.mobotix.com, Support > Manuals. © MOBOTIX AG • Security-Vision-Systems • Made in Germany...

  • Page 112: Correction Of Lens Distortion (L22 Only)

    To hide this cushion effect, you simply have to zoom in on the image slightly. Although this reduces the size of the captured area, the image is almost distortion-free compared to the original. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 113 An automatically corrected (live) image is displayed that can be panned, tilted, or zoomed. Switching to the "Full Image" option will deactivate the automatic distortion correction function. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 114: Special Hemispheric Configuration In The Browser (L11 Only)

    M24M Camera Manual: OPERATING THE CAMERA Special Hemispheric Configuration In The Browser (L11 Only) Thanks to its hemispheric lens, the MOBOTIX M24M with L11 lens provides certain special configuration options for the image settings. Depending on where the camera is mounted...
  • Page 115 Tilted vertical lines may also be optically straightened to the image edges using the panorama correction function. These tilted lines are primarily caused if the camera itself is tilted or if the image tilt has been modified. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 116 To permanently save the standard image setting defined for the M24M, select the "Store Complete Configuration" option under the "Manage Settings" in Quick Control. The settings will then remain in effect, even after rebooting. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 117 CORRECTION Bring columns together at the (necessary to correct the example on the left); weather- proof cover is removed from the image Bring columns together at the bottom © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 118 2. Rotate the live image in the desired direction using the mouse or a joystick connected For vPTZ use to the computer. and the configuration of a USB joystick, see Section 3.3 vPTZ © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 119 "Double using the lock icon (open lock - correct display - close lock again). Panorama" mode © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 120: Microsd Card Recording

    Menu > Camera Status dialog. Conservative Memory Usage Thanks To MOBOTIX MxFFS File System MxFFS formatting of the MicroSD card means that the MOBOTIX camera software will use the flash device as evenly as possible, thus allowing for the maximum possible number of write/delete cycles.
  • Page 121 Monitoring The Cell Wear Of Flash Storage Devices (Patent Pending) MOBOTIX uses its own technology for this purpose and has a pending patent. You can view the flash wear in the status bar of the live image or by opening Admin Menu >...

  • Page 122: Formatting The Card

    Server / Flash Device (Admin Menu > Storage on External File Server / Flash Device): 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Click on the Format button under SD Flash Card.

  • Page 123: Activate Recording

    Storage on External File Server / Flash Device 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Make sure that the MicroSD card has been MxFFS-formatted (see Section 3.6.2 Formatting the Card ).

  • Page 124: Accessing Camera Data

    • In MxControlCenter: Play back the recorded video sequences with audio by access- ing the MicroSD card in the MOBOTIX camera via the camera or with a direct access to the MicroSD card via a card reader connected to the computer. Access the card by setting the MicroSD card's drive/volume as a "directory"...

  • Page 125: Using A Microsd Card In A Different Mobotix Camera

    MxFFS formatting, this is limited to 4 MB of lost data per incident. 3.6.6 Using A MicroSD Card In A Different MOBOTIX Camera A MicroSD card containing recorded video data from a MOBOTIX camera can be inserted into any MicroSD card-enabled MOBOTIX camera. Once MicroSD card recording has been activated (requires a reboot), the "new"...

  • Page 126: Full Image Storage

    The image distor- tion in the recording can also be corrected at a later time. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 127 Full Image Recording Off: The event that triggered a video motion (VideoMotion VM) window may not be in the recorded sequences as the window was not displayed at the time. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 128: Configuration In The Browser

    HTTP commands using programs and scripts of the embedded software. The settings are stored in the camera's flash memory. This section contains an overview of the general browser settings of the MOBOTIX camera, as well as further configuration options. The Software Camera Manual Part 2 contains more detailed descriptions of the software features.
  • Page 129 (Image Programs Quick Control). => ( Software Camera Manual Part 2 , Section 5.5.2) • Set the resolution of the live image: By factory default, all MOBOTIX cameras are delivered with an image resolution of 640 x 480 pixels. You can select the desired resolution using the Resolution Quick Control.
  • Page 130 Click on the Arm & Record button to activate event control. This will activate video motion detection and recording. Cameras with integrated flash memory (MOBOTIX R models and models with SD card) will use the flash memory by default to store the image and video data (recording target). If desired, you can set additional events and adjust the settings of the recording and storage parameters (Setup Menu >...

  • Page 131: Additional Configuration Options

    This allows you to manually synchronize the camera with a computer or automatically using a time server or another MOBOTIX camera. The camera can use either NTP time servers or Time Protocol servers. For additional information, see Section 5.4.2 Date and Time/ Time Zones and Time Servers in the Camera Software Manual Part 2 .

  • Page 132: Additional Notes

    Allen lock screws in order to prevent damage occurring to the camera or the cabling. Before drilling, remove the camera from the housing © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 133: Password For The Administration Menu

    If you lose the administrator password and cannot access the Administration menu, the password can only be reset at the factory. This service is subject to a service charge! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 134: Permanently Deactivating The Microphone

    3.9.5 Reset The Camera To Factory Settings The configuration All settings of the MOBOTIX camera can be permanently reset to the factory default settings. can also be reset This makes sense if you have, for example, obtained a camera without any information partially or you would like to reset all settings after testing the camera.

  • Page 135: Deactivate Text And Logo Options

    MOBOTIX camera only displays the Text WWW.MOBOTIX.COM, the time stamp, and deactivated or the MOBOTIX logo at the top of the image. Once the camera arming has been activated, customized the text at the bottom of the live image (event, action, messaging, and recording symbols) will also appear.

  • Page 136: Cleaning The Camera And Lens

    Electrical surges can be induced by other electrical appliances, improper wiring, but also from the outside (for example, lightning strikes to phone or power lines). MOBOTIX cameras are protected against the effects of small electrical surges by a range of measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur.

  • Page 137: Additional Information

    Furthermore, detailed information on the camera and its current configuration is displayed in the Camera Status dialog. Click on the symbol to open the relevant page. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 138 Control element on Windows computers which may also be used in other programs (including Windows Internet Explorer) to run special tasks. The MxPEG ActiveX control element allows video and audio data from MOBOTIX cameras to be displayed in other applications (includ- ing Internet Explorer).
  • Page 139 16 Mbps for a typical household. DualDome Dome camera with two lenses and image sensors such as the MOBOTIX D12D. These lenses can deliver Wide Angle and Telephoto images independently of one another. Abbreviation for Digital Video Recorder.
  • Page 140 /146 M24M Camera Manual: Glossary ExtIO MOBOTIX signal module that the camera uses to directly operate lamps, sirens and door openers, as well as external audio components (speakers and microphones). Fixdome Camera without moving parts in a dome-shaped housing. Flash Memory See CF Card.
  • Page 141 MOBOTIX cameras and add-on modules that emits light when a current flows through the component in the correct direction. Linux Free and open source operating system. Serves as the operating system for all MOBOTIX cameras. Megapixel Images that have more than 1 million pixels.
  • Page 142 USB sticks. Search Monitoring of recordings or searching for a particular event. Sequencer Feature that automatically switches the camera displayed in the main window after a specific time delay. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 143 VoIP Voice over IP. Telephony using computer networks. WLAN Wireless Local Area Network. Used to provide Internet connections without the need for cables. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 144 /146 M24M Camera Manual: Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 145 /146 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 146 /146 /146 M24M Camera Manual: Declaration Of Conformity DECLARATION OF CONFORMITY © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 147 Tax Office: Kaiserslautern, Germany http://www.mobotix.com VAT ID: sales@mobotix.com DE202203501 You can find the latest version of this document at www.mobotix.com under Support. Technical specifications subject to change without notice! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 148 > Support > Manuals HiRes Video Innovations The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems cost efficient. MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com...

This manual is also suitable for:

M24m series

Table of Contents
