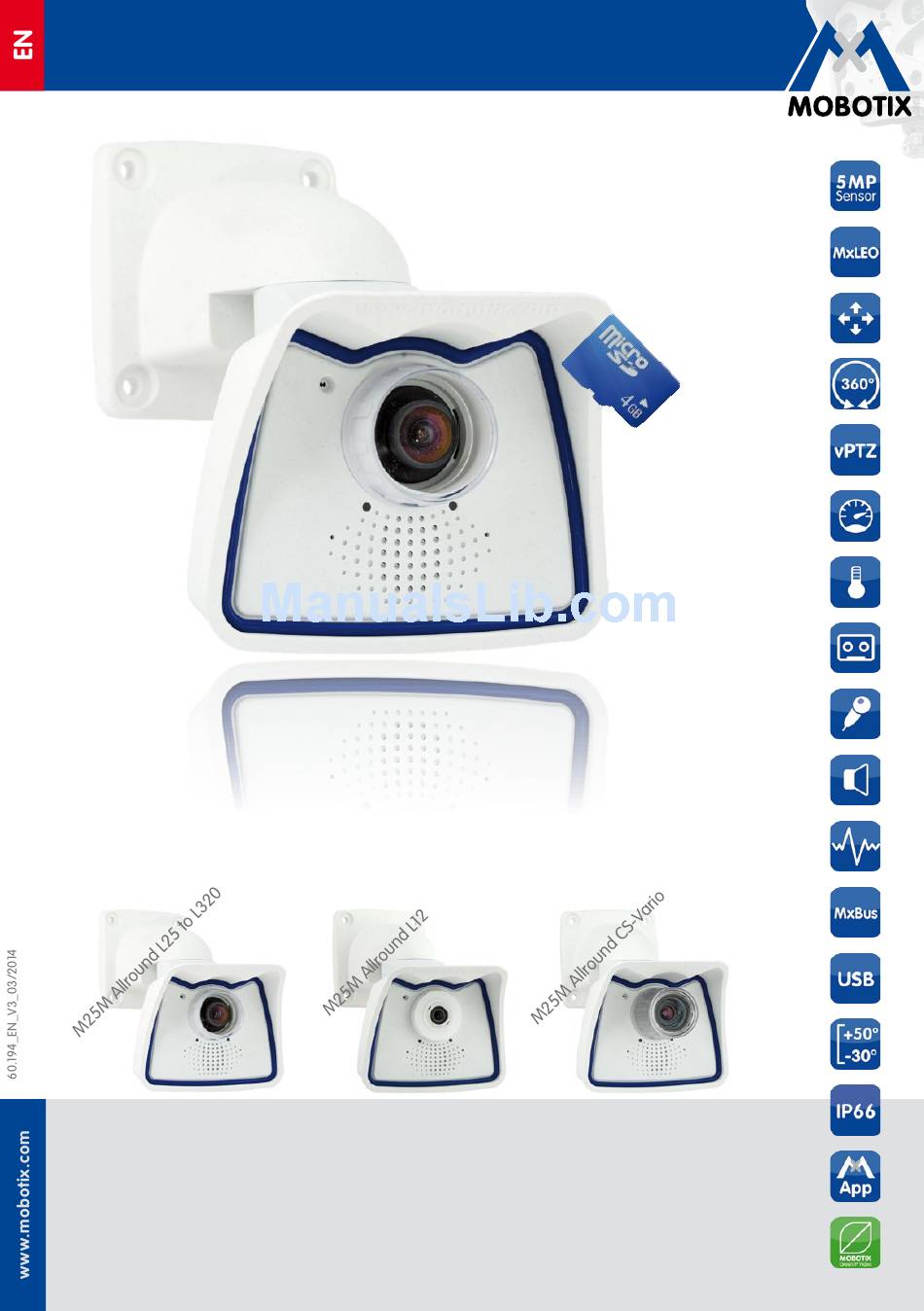

M25M Camera Manual
More Camera For Less. Guaranteed!

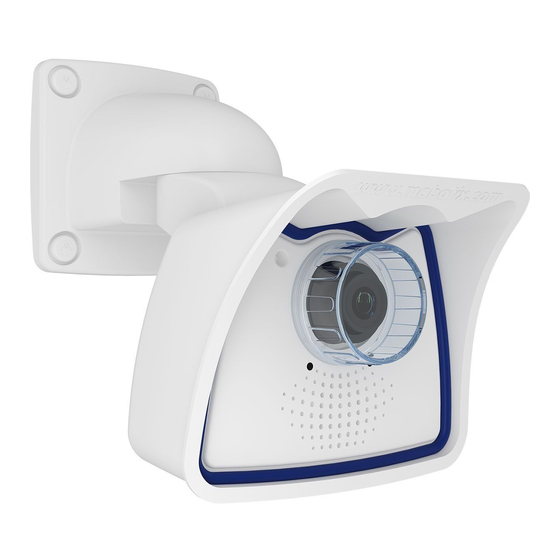

The M25M series from MOBOTIX offers extremely compact, cost-effective and exceptionally powerful
5 MP allround cameras with the widest range of lenses, including panorama version. Fully equipped
with IP66-certified housing and long-term internal storage on a MicroSD card.
Innovations - Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its
decentralized concept has made high-resolution video systems cost efficient.
MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com
Security-Vision-Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M25M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobotix M25M Series

Summary of Contents for Mobotix M25M Series

  • Page 1 IP66-certified housing and long-term internal storage on a MicroSD card. Innovations - Made in Germany The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems cost efficient.
  • Page 2 For more information, visit www.mobotix.com > Seminars. Copyright Information All rights reserved. MOBOTIX , the MX logo, MxControlCenter , MxEasy and MxPEG are trademarks of MOBOTIX AG registered in the European Union, the U.S.A., and other countries. Microsoft , Windows and Windows Server are registered trademarks of Microsoft Corporation.

  • Page 3: Table Of Contents

    1.5.13 Mx2wire+ Media Converter 1.5.14 Installing Interface Boxes Under a Varioflex Wall Mount 1.5.15 Other Accessories MOBOTIX Software 1.6.1 Integrated Camera Software (Firmware) 1.6.2 MxControlCenter 1.6.3 MxEasy 1.6.4 MOBOTIX App © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 4 Network and Power Connection 2.7.1 Notes on Cable Lengths and Power Supply 2.7.2 Network Cabling For M25M With Patch Cables 2.7.3 Power Supply Using a Switch 2.7.4 Power Supply When Connected Directly to a Computer 2.7.5 Power Supply with Power-Over-Ethernet Products 2.7.6 Connecting a USB Cable...
  • Page 5 3.4.3 Activating MicroSD Card Recording 3.4.4 Accessing Data on the MicroSD Card 3.4.5 Deactivating Card Recording 3.4.6 Using a MicroSD Card in a Different MOBOTIX Camera 3.4.7 Limitations on Warranty When Using Flash Storage Media Configuration in the Browser 3.5.1 Overview 3.5.2 General Browser Settings...
  • Page 6 MOBOTIX products. § Depending on national laws and the installation location of the M25M, the recording of video and sound data may be subject to special documentation or it may be prohibited.
  • Page 7 1 W! Never touch the lens: Due to the high performance of the M25M, the area of the image sensor can get quite hot, especially when the ambient temperature is also high. This does not affect the proper functioning of the camera in any way. For this reason, the product must not be installed within the reach of persons without the lens cover.
  • Page 8 If you have any questions, our support and international sales staff are available at intl-support@mobotix.com from Monday to Friday, 8 am to 6 pm (German time). We would like to thank you for your trust and wish you all the best with your new MOBOTIX camera M25M Allround! ©...
  • Page 9 /136 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 10: Product Overview

    7°, 13°, 27°, 40°, 55° and 180° or it is available as a special version with CS Vario lens. Every M25M comes with a pre-installed and formatted 4 GB MicroSD card and a VarioFlex mount for fast and easy installation.
  • Page 11 Low Light Conditions – No Problem The maximum resolution of the color and black&white image sensors is 5 megapixels. The higher light sensitivity of the new color image sensors now allow using MOBOTIX color cameras around the clock even when the illumination is low.
  • Page 12 Furthermore, MOBOTIX customers can take advantage of MxEasy or the professional control center software MxControlCenter free of charge and with an unlimited user and camera license. If required, an M25M can even be upgraded to function as a powerful MOBOTIX ExtIO intercom system by adding the MOBOTIX ExtIO module.
  • Page 13 180° pan- orama (L12 lens) The Right Lens for Every Application No MOBOTIX camera has ever had so many lens options! For the M25M, MOBOTIX offers seven lenses ranging from the 7° tele to the 180° Fisheye lens. MOBOTIX original image of 82°...
  • Page 14 180° pan- orama (L12 lens) The M25M-Sec-CSVario is an M25M model that is shipped with a CS mount and a compact L29–L64 1/2” Vario lens. To protect the lens against the weather, this version comes with a longer lens cover and threads for an external filter. This cover will work for lenses, which have a maximum diameter of 36 mm and which are not longer than 43 mm.
  • Page 15 An L160 Tele lens enables an M25M with a high-resolution 5 megapixel sensor to clearly record a license plate number, for example, from a distance of approximately 75 meters.
  • Page 16 M25M Camera Manual: Product Overview Virtual PTZ (vPTZ) – Without Motor The M25M can also zoom in on details. This vPTZ function (virtual Pan, Tilt, Zoom) is a standard feature in the integrated M25M camera software. The image from the hemispheric camera can be enlarged using, for example, the mouse wheel, a joystick or a software-controlled PTZ panel and you can “move”...
  • Page 17 Example: The persons highlighted by the red circles in the center image would not have been recorded by a regular PTZ camera; the full image recording of the M25M in this Integrated vPTZ func-...
  • Page 18 /136 M25M Camera Manual: Product Overview Internal DVR The M25M-Secure features direct recording to the integrated MicroSD 4 GB MicroSD card already integrated in the card, which makes the camera fully independent of any external camera (M25M-Secure) storage media, even for longer periods of time. The camera internally...
  • Page 19 /136 M25M Allround Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 20: M25M With Special Lens Hemispheric L12

    This makes it hard to comprehend the overall setting. The new panorama function of the M25M with the L12 lens delivers a widescreen, corrected image of a high-resolution 180° allround view. High image quality is achieved through the use of a five-megapixel color sensor and the new hemispheric lens of the M25M.
  • Page 21 /136 M25M with Special Lens Hemispheric L12 The factory default setting of an M25M with an L12 lens is a high-resolution 180° panorama image, in which parts of the protective cover are still visible in the upper right and left corners of the image.
  • Page 22 M25M Camera Manual: Product Overview L12 Lens: Panorama Focus – One Camera, Three Views Maximum room overview while simultaneously viewing detail in a single image: the M25M is capable of providing two more views simultaneously with the 180° panorama, allowing you to focus on two scenes in parallel (“Panorama Focus”...
  • Page 23 M25M with Special Lens Hemispheric L12 L12 Lens: Surround View (Quad View) The “Surround” display mode of the M25M replaces four cameras all at once and simultane- ously delivers four different directions “at a glance.” If the camera is installed in the ceiling and is looking straight down, all four cardinal directions can be displayed, for example.
  • Page 24 L12 Lens: Full Image and Normal View In addition to Panorama, Double Panorama, Panorama Focus and Surround views, the M25M image can be displayed on a monitor as the original Fisheye version (“Full Image” display mode) or as the camera-corrected image section (“Normal” display mode). Switching to one of the other display modes described is possible at any time within seconds.
  • Page 25 L12 Lens: Factory Settings of the Standard Views for a Wall Installation In order to fully exploit the potential of the M25M in the desired view, it may be necessary to adjust the factory settings using the integrated vPTZ function. We have summarized the factory default settings of a wall-mounted M25M with an L12 lens (with a downward tilt of approx.

  • Page 26: Advantages And New Features

    The more light-sensitive an image sensor is, the better the image quality, especially when the ambient light level is low, such as at dusk and in heavy rainfall. The M25M offers the best MOBOTIX image quality that is currently available thanks to the light sensitivity provided by the five-megapixel color sensor that is four times higher than that of the previously used three-megapixel color sensor and the new MxLEO exposure control.
  • Page 27 M25M with Special Lens Hemispheric L12 Black&White Image Sensor with 5 Megapixels You can now order the M25M with a five-megapixel night sensor that can deliver black and white images with up to QXGA resolution. This results in larger images than those delivered by the previous 1.3-megapixel sensor with a perceptibly higher degree of details.

  • Page 28: Decentralized Video System

    The M25M is equipped with a shock detector as standard (for all IT and Secure models). For example, if the camera receives a blow to the housing, it can simultaneously take a video of the offender, trigger a sound alarm and notify the security company by a SIP call.
  • Page 29 /136 M25M with Special Lens Hemispheric L12 The decentralized MOBOTIX video solutions are superior to traditional systems in all major aspects. They are also considerably cheaper to operate since they require • Fewer cameras due to the more accurate detail of panorama images with mega- pixel technology •...

  • Page 30: Green Ip Video

    Due to the special product and system properties, the decision to install MOBOTIX video systems is also a decision for Green IP Video: low power consump- tion and environmental friendly because of long life expectancy and minimal amount of materials involved.
  • Page 31 /136 M25M with Special Lens Hemispheric L12 Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 32: Technical Specifications

    180° and 5 megapixel color sensor. The lens distortion that is specific to each lens is corrected in the live image by the MOBOTIX camera software. Due to the special outdoor-optimized design of the camera, the full sensor image cannot be used with all available image display options (parts of the weatherproof housing may be visible in the image).
  • Page 33 Another benefit is that you can easily set a 35 mm camera (analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the same field of vision. This approach greatly facilitates lens selection.

  • Page 34: Camera Variants - Lenses, Hardware, Image Formats

    CIF images with 4 GB MicroSD DVR 250,000 250,000 VGA images with 4 GB MicroSD DVR 125,000 125,000 MEGA images with 4 GB MicroSD DVR 40,000 40,000 QXGA images with 4 GB MicroSD DVR – 20,000 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 35: Camera Variants - Software Features

    MxActivitySensor – • Free-of-charge Free-of-charge Video Management Software download from download from www.mobotix.com www.mobotix.com MxEasy, MxCC • • or App Store or App Store MOBOTIX App • • © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 36: Technical Data

    Software (included) MxEasy video management software, MxControlCenter control center software, MOBOTIX App for iOS devices with iOS 5.0 and higher Image processing Backlight compensation, automatic white balance, image Functionality depends on distortion correction, panorama correction, Video Motion...
  • Page 37 Weight: approx. 715 g/1.6 lb (including standard lens) Delivered parts Housing (high-resistance composite, PBT), white, conversion set for ceiling mount, mounting parts, Allen wrench, 50 cm patch cable, manual, software, 4 GB MicroSD card (pre- installed) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 38: Delivered Parts And Dimensions

    1.11 Stainless steel washers 6.4 mm 1.12 Screw anchors S8 1.13 Cable retainer with bayonet catch (patch cable, Mini USB) 1.14 4 GB MicroSD card 1.15 Lock plug Mini USB © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 39 /136 Delivered Parts and Dimensions Camera Housing and Connectors The MOBOTIX M25M consists of the camera in the weatherproof housing and the VarioFlex mount. Connectors • Network (Ethernet network including PoE supply) • Mini USB (e.g. for ExtIO) • MxBus (for MOBOTIX expansion modules)
  • Page 40 The cable can now be pulled out of the camera. Open the cable retainer by rotating the bayonet catch to the marked position Bayonet catch open © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 41 (opening points to the right). Rotate the bayonet catch clockwise to the “filled circle” symbol (see figure). The cable is now properly retained. Close the cable retainer by rotating the bayonet catch to the marked position Bayonet catch closed © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 42: Dimensions (Mm) For Wall Installation

    /136 M25M Camera Manual: Product Overview 1.4.2 Dimensions for Wall Installation 106.5 mm 222 mm 112 mm 140.5 mm 1.4.3 Dimensions for Ceiling Installation 106.5 mm 137 mm 106.5 mm 27 mm 140.5 mm © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 43: Dimensions (Mm) Of Wall Mount

    Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 44: Available Accessories

    The MOBOTIX MX-232-IO-Box can be connected directly used for the M25M to the M25M with this cable, which is up to five meters long. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 45: Miniusb Cable To Miniusb (Angled/Angled)

    Order no.: MX-CBL-MU-EN-EN-PG-05/2/5 (angled/angled) The MOBOTIX ExtIO can be connected directly to the M25M with this cable, which is up to five meters long. 1.5.5 MiniUSB Cable to USB-A Socket Order no.: MX-CBL-MU-EN-AB-05/2/5 USB-based storage media (for example, USB hard drives) can be connected directly to the M25M with this cable, which is up to five meters long.

  • Page 46: Mx-Overvoltage-Protection-Box

    Order no.: MX-Overvoltage-Protection-Box-LSA Weatherproof network connector (protection class IP65, –30 to +60°C/–22 to +140°F) with surge protection of up to 4 kV for MOBOTIX IP cameras , ideal for replacing the MX-Patch-Box. At the same time, the MX-Overvoltage-Protection-Box provides a weatherproof connection of a camera’s patch cable to a network patch cable ( -RJ45 variant) or a network installation cable ( -LSA variant).

  • Page 47: Mx-232-Io-Box

    D-Sub 15-HD connector. The MX-232-IO-Box (protection class IP65, –30 to +60°C/–22 to +140°F) can be attached to all MOBOTIX cameras with an MxBus or USB interface. The maximum length of the MxBus wiring (0.8 mm diameter wires) is 50 m/55 yd. If the MiniUSB connector is used, the maximum cable length is 5 m/16 ft.

  • Page 48: Installing Interface Boxes Under A Varioflex Wall Mount

    1.5.15 Other Accessories Since the range of accessories for the MOBOTIX system keeps growing, you should visit the MOBOTIX website www.mobotix.com in the Products > Accessories section to see the entire list of available accessories.

  • Page 49: Mobotix Software

    MOBOTIX MxControlCenter, MxEasy remote stations and MOBOTIX App. The M25M models therefore also feature a variety of functions that are integrated in the firmware: from motion detection and long-term storage right through to alarm notification via video IP telephony.

  • Page 50: Mxcontrolcenter

    The state-of-the-art software, specifically tailored to support high-resolution MOBOTIX network cameras, provides a user-friendly user interface and camera image display, convenient video search functions, effective alarm handling, automatic camera integra- tion, video storage on file servers as well as useful configuration and update wizards.

  • Page 51: Mxeasy

    MOBOTIX cameras. The clear design allows you to manage up to 16 cameras, and the application can show up to four cameras at the same time.

  • Page 52: Mobotix App

    M25M Camera Manual: Product Overview 1.6.4 MOBOTIX App Premium solution: There for you whenever and wherever you need it, the MOBOTIX App serves as the perfect remote mobile station that uses intelligent detailed solutions to increase security and convenience for users on a daily basis. The controls are optimized for use with...
  • Page 53 /136 MOBOTIX Software Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 54: Installation

    Like all MOBOTIX cameras, the M25M is extremely flexible in terms of how and where it can be installed. An M25M can be used for both indoor and outdoor applications. In fixed or mobile applications – constantly changing locations or in/on vehicles of any kind.
  • Page 55 The VarioFlex mount consists of a central joint, which is directly screwed into place with the weatherproof M25M housing, and a wall and ceiling mount, which is fastened to the central joint with just one screw. In addition to being easy to install, the VarioFlex mount enjoys the advantage of a completely concealed cabling and high impermeability to water and dust (IP66).
  • Page 56 M25M Camera Manual: Installation Mounting to a Wall The M25M can be mounted to the wall of a building or structures, even mobile surfaces, for both indoor and outdoor use. The camera is mounted using the pre-installed VarioFlex mount (supplied as standard), which is easily secured using the four enclosed screws and screw anchors (depending on the surface, it can also be mounted without screw anchors directly over the flush-mounted socket).

  • Page 57: Mounting With Hemispheric Lens L12

    The entire hemisphere of the room in front of the camera is then effectively monitored. High-Resolution Panorama Images The M25M with L12 lens is primarily suited to providing an excellent overview in the form of a high-resolution panorama image, and less suitable for more exact details. For active operation, the camera should be mounted at an (out of direct reach) height ranging from 2.50 m to 3.50 m.
  • Page 58 Image quality (precision) diminishes as the distance of (120 yd²) floor area can be monitored an object to the camera focal point increases: using a single camera. 1 very good, 2 good, 3 satisfactory © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 59 Part of the captured image area (especially in full image display mode) is concealed behind the protective cover of the M25M housing. For this reason, M25M cameras with L12 lens should be adjusted so that the concealed areas are not those that are supposed to be monitored.

  • Page 60: Network Connection And Power Supply, Ups

    Power Over Ethernet (PoE Conforming to IEEE 802.3af) era to metal surfaces (condensation may All M25M models are supplied with power using the PoE standard. The Network Power damage the camera): Adapter (MX-NPA-PoE-Set) may be used for smaller installations. For larger installations,...

  • Page 61: Preparing The Camera Connections, Mx-Overvoltage-Protection-Box

    5 watts is very low. This, in turn, means that you can centralize the UPS-protected power supply by injecting power into the Ethernet cables (max. 100  m). This kind of protected power supply can be used either with MOBOTIX PoE products (MX-NPA-PoE + Universal Power Supply) or with PoE-compliant switches according to IEEE 802.3af.

  • Page 62: Wiring, Fire Prevention, Lightning And Surge Protection

    When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, fire prevention and protection against lightning. MOBOTIX cameras are protected against the effects of small electrical surges by a range of measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur.

  • Page 63: Mounting The Camera With Wall Mount

    /136 Mounting the Camera with Wall Mount Mounting the Camera with Wall Mount The M25M is a versatile camera designed for use in indoor and outdoor applications. The See Section 3.6.1, «Protecting the Camera camera must always be installed with the VarioFlex mount, which has been prepared at Against Condensation»...
  • Page 64 MX-Overvoltage-Protection-Box, which is easily installed in the cavity of the VarioFlex wall mount. For additional information on the MX-Overvoltage-Protection-Box, open the Products > Accessories > Interface Boxes section on www.mobotix.com. Note that you can also install a flush-mounted socket with RJ45 connectors. In this case, make sure that the outlet lines up with the upper rim of the mount later on.
  • Page 65 RJ45 outlet. When using an MX-Overvoltage-Protection-Box, follow the installation instructions supplied with the product. You can download the PDF file from the MOBOTIX website www.mobotix.com in the Support  > Manuals section. Make sure that the cables are not bent or squashed.
  • Page 66 Note Make sure that you always use the VarioFlex Mount with ceiling adapter when installing to ceilings (see Section 2.3, «Mounting the Camera with Ceiling Mount» ). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 67: Mounting The Camera With Ceiling Mount

    /136 Mounting the Camera with Ceiling Mount Mounting the Camera with Ceiling Mount The M25M is an allround camera designed for use in indoor and outdoor applications. The See Section 3.6.1, «Protecting the Camera camera is always installed together with the VarioFlex mount, which has been prepared at Against Condensation»...
  • Page 68 The camera patch cable must be connected to the network cable using a suitably sealed adapter. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 69 2 mm drill bit, for example (drilling depth just slightly less than screw length). 4. Attach ceiling seal: Place the white rubber seal with the groove on the edge of the ceiling mount. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 70 Check the image section on the computer monitor. Note Make sure that you always use the VarioFlex mount with wall adapter when installing to walls (see Section 2.2, «Mounting the Camera with Wall Mount» ). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 71: Mounting The Camera With Pole Mount (Accessory)

    Mounting the Camera with Pole Mount (Accessory) Mounting the Camera with Pole Mount (Accessory) If you are intending to mount the camera on a pole, you should consider using the MOBOTIX M25M Pole Mount. This mount is made of 3 mm powder-coated stainless steel (white) and has been designed specifically for outdoor use.

  • Page 72: Pole Mount (Mx-Mh-Secureflex-Esws)

    When mounted to a pole, the camera can be turned or tilted as follows, just like wall installation: • horizontally: 180° • vertically: 110° 180° Schwenkbarkeit bei Mastmontage: +20° • horizontally: 180° • vertically: 110° -90° Pole Mount Dimensions Width: 140 mm/5.51 in Depth: 45 mm/1.77 in © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 73 Stainless steel washers Stainless steel lock nuts M6 Stainless steel straps In addition, you will need the screw caps for fastening screws supplied with the M25M (see Section 1.4, «Delivered Parts and Dimensions» , item M.10). Screw caps M.10 © MOBOTIX AG • Security-Vision-Systems • Made in Germany...
  • Page 74 You can download the PDF file from the MOBOTIX website www.mobotix.com in the Support > Manuals section. Make sure that the cables are not bent or squashed. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 75 Note Make sure that you always use the VarioFlex mount with wall adapter when install- ing to poles . Der VarioFlex Ceiling Mount is not to be used. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 76: Adjusting The Camera And Exchanging The Lens

    Control, see Section 3.5 2.5.2 Correcting the Image Horizon (for L12 Lens Only) The M25M-Sec with hemispheric L12 lens allows the correc- tion of an uneven image horizon via OnScreen Control that was possibly caused by the installation position. The image horizon can be adjusted by up to 30 degrees clockwise +30°...

  • Page 77: Exchanging The Lens

    M25M-Sec-CSVario or for lenses with CS or C mounts. Only lenses with CS or C mounts may be used with the CSVario version of the M25M (Secure model only). MOBOTIX lenses with M14 thread cannot be used. Similarly, the standard versions of the M25M can only take the standard MOBOTIX lenses with M14 thread.

  • Page 78: Replacing The Microsd Card

    To use the camera without a MicroSD card, continue by mounting the back plate (see step 2 in Section 2.6.2 ). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 79: Inserting The Microsd Card

    File Server / Flash Device. Once the camera has been rebooted, it automatically activates recording. 6. If you have inserted a new MicroSD card, it must first be formatted as described in Section 3.4, «MicroSD Card Recording» . © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 80: Network And Power Connection

    • If you are using IEEE 802.3af or IEEE 802.3at (PoE+) Power-over-Ethernet network components to supply power to MOBOTIX cameras, make sure, if possible, that these components do not have a fan. Since the power consumption of MOBOTIX cameras is very low compared to other products, the reliability of the entire system is increased, thus extending the life of these components.

  • Page 81: Power Supply Using A Switch

    Products  > Accessories  > Interface Boxes section on www.mobotix.com. When using a standard network outlet (only for indoor installations), insert the MOBOTIX patch cable of the M25M directly into the network outlet. If additional cables are required inside the housing, they must be connected as described in Section 2.7.6, «Connecting a USB Cable»...

  • Page 82: Power Supply When Connected Directly To A Computer

    The switch/router must support the PoE standards IEEE 802.3af or IEEE 802.3at. IP addresses in the PoE/PoE+ switch/ figure are shown LAN/www router only as an example (10.8.0.11/255.0.0.0) Camera (10.8.0.99) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 83: Connecting A Usb Cable

    2. Remove bayonet catch and USB plug : Turn the bayonet catch to the left (red arrow in figure), take it off and remove the blue USB plug. 3. Insert USB plug : Push the MOBOTIX cable with the angled MiniUSB plug into the connector (red circle in figure).

  • Page 84: Connecting A Two-Wire Mxbus Cable

    /136 M25M Camera Manual: Installation 2.7.7 Connecting a Two-Wire MxBus Cable You can use such a cable to connect additional MOBOTIX modules (e.g., the MX-GPS-Box or the MX-232-IO-Box) to the M25M. Note that you can attach two MxBus cables (each having...

  • Page 85: Variable Poe

    4. Next, restart the camera: Disconnect the camera from the power supply. Then reconnect it, for example, by disconnecting and then reconnect- ing the Ethernet cable at the PoE switch. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 86: Camera Startup Sequence

    MxControlCenter, MxEasy, MOBOTIX App, etc.). Note During the startup sequence of the camera, the LEDs will always light up, even if they have been deactivated in Admin Menu > LED Setup. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 87 /136 Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 88: Operating The Camera

    (for example, 10.8.0.99). However, local computer networks usually have IP addresses in the 172 or 192 ranges. In order to access a MOBOTIX camera via the network, the camera needs to obtain an IP address in the same address range. You can set up the network parameters of the MOBOTIX camera using one of the following methods: Manually, using MxCC and MxEasy or by DHCP.

  • Page 89: Manually Using A Computer In The 10.X.x.x Ip Address Range

    – The computer or the network needs to operate in the 10.x.x.x IP address range or need to be able to access such a network. – The setup does not work automatically. – You need to know the relevant network parameters. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 90: Automatically Using Mxcontrolcenter Or Mxeasy

    MxControlCenter or MxEasy (see Section 3.2.3 and Section 3.2.4 ). You can also use one of these applications to automatically configure the network parameters of MOBOTIX cameras that are not operating on the same IP address range as the computer. MxControlCenter software (free download from www.mobotix.com)

  • Page 91: Automatically Using Dhcp

    – The camera needs to be physically accessible as you need to press a key on the camera housing to boot it using DHCP. – Requires a running DHCP server on the network. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 92: First Images And The Most Important Settings

    M25M Camera Manual: Operating the Camera First Images and the Most Important Settings Once the MOBOTIX camera has been connected to the network, you need to set up the camera’s network interface accordingly. This step involves setting up and checking the network parameters of the camera.
  • Page 93 2. Set Up the Target Network Parameters of the MOBOTIX Camera: 1. Open a web browser on the computer and enter the default IP address of the MOBOTIX camera in the address bar of the browser (for example, 10.8.0.99). Pressing Enter displays the user interface of the MOBOTIX camera (see also Section 3.2.2, «First...

  • Page 94: First Images And The Most Important Settings In The Browser

    3.2.2 First Images and the Most Important Settings in the Browser Once the MOBOTIX camera has been connected to the power supply and to the network, you can access the user interface with the live camera image in the web browser. Internet Explorer, Firefox, Safari or any other graphical browser with activated JavaScript is suitable.
  • Page 95 For more information on camera screens, see Section «Camera Screens In The Browser» Guest screen: in the Camera Software Manual Part 2 or the online help of the camera’s user interface. http://<camera IP>/ cgi-bin/guestimage.html © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 96: First Images And Network Parameter Configuration In Mxcontrolcenter

    Installation Download the setup file from the MOBOTIX website to install the latest version. The latest versions are available at www.mobotix.com in the Support > Software Downloads > MxControlCenter section. To install MxControlCenter, simply double-click on the setup file and follow the instructions.
  • Page 97 The Add Video Sources dialog box appears and the application automatically searches for MOBOTIX cameras in the local network when you launch the program for the first time. Select Video Source > Add from the menu to perform a camera search at a later time.
  • Page 98 For more information, see «Creating a New Layout» further down. Reconfiguring Cameras in a Different Subnet If one or more MOBOTIX cameras are displayed with the status Different subnet (for example, cameras with a factory IP address), MxControlCenter automatically offers to configure the network settings of these cameras.
  • Page 99 MxControlCenter. • Camera: Here, you can enter the known IP address or DNS name of a MOBOTIX camera or a third-party IP camera if it was not found by the automatic search feature.
  • Page 100 If you select the second option, the video sources you selected are simply integrated in the MxCC system where you can use them to generate a layout at a later time. Click on OK to confirm. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 101: First Images And Network Parameter Configuration In Mxeasy

    When you start MxEasy for the first time on a computer, the MxEasy Assistant automatically begins to search for MOBOTIX cameras and displays all cameras found in a list. The camera list will be updated automatically as soon as new MOBOTIX cameras are con- nected to, or removed from the network.
  • Page 102 *Bonjour: automatic recognition of network but also MOBOTIX cameras located in other subnets (the Invalid Network status). In such a services in IP networks case, you would not be able to establish any connection to cameras in a different network or subnet (without going into much further detail regarding TCP/IP network configurations).
  • Page 103 MxEasy Assistant until the main window appears. If one of the integrated cameras includes a M25M , the MxEasy Assistant opens an addi- tional page where you can specify the mounting positions ( Ceiling, Wall, Floor ) and display modes ( Panorama, Surround, etc.

  • Page 104: Starting The Camera With The Factory Ip Address

    As opposed to resetting the camera using Admin Menu > Reset configuration to factory defaults, the user information will not be reset if the camera is booted using the factory IP address. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 105: Starting The Camera With An Automatic Ip Address (Dhcp)

    3.2.6 Starting the Camera with an Automatic IP Address (DHCP) If your network has a DHCP server, you can start the MOBOTIX camera with DHCP support. The camera automatically obtains an IP address from the DHCP server and announces the new network data.

  • Page 106: Virtual Ptz And Full Image Recording

    Operation Using The Mouse And Scroll Wheel The vPTZ function of the M25M can be controlled in the browser using the mouse. This position becomes the new image center by clicking on any position on the image displayed on the monitor. The image moves accordingly and the image distortion is automatically corrected.
  • Page 107 PTZ Features» , the MxControlCenter manual, Section 2.4.6, «Using the vPTZ Features» and Section 3.1.4, «The “PTZ Controls” Section In The Sidebar Panel» ). Current versions of all manuals can be downloaded anytime from the MOBOTIX website www.mobotix.com under Support > Manuals).

  • Page 108: Full Image Recording

    Full image recording off: The event that triggered a video motion (VideoMotion VM) window may not be in the recorded sequences while the window was not displayed at the time. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 109 Activate/Deactivate Full Image Recording in the Browser To configure this feature, open the Setup Menu > Event Control > Recording dialog box and activate or deactivate the Full Image Recording option. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 110: Special M25M Configuration In The Browser

    M25M is first installed. A corresponding adjustment of the image setting is strongly recommended if the on-wall set is mounted with an inclination of 10 degrees (available as a M25M accessory).
  • Page 111 These tilted lines are primarily caused if the camera or sensor module is tilted (for example, due to mounting with 15° wedges) or if the image tilt is modified. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 112 Caution To permanently save the standard image setting defined for the M25M, go to the Store Complete Configuration option in the Manage Settings Quick Control. The settings will then remain in effect, even after rebooting.
  • Page 113 Bring columns together at the (neces- sary to correct the example on the left) Bring columns together at the bottom © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 114 2. Rotate the live image in the desired direction using the mouse or a joystick con- For vPTZ use and nected to the computer. the configuration of a USB joystick, see Section 3.3.1 vPTZ © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 115 In the next step, you can set these views as the standard view for the camera live image. North East Caution: No OnScreen Control is available in ”Double Panorama” mode West South © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 116 For each of the subviews ( North , East , etc.), the OnScreen Control on the side can be used to adapt it (open lock, click on subview, adapt view, click on next subview, adapt view and close lock again). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 117: Microsd Card Recording

    Admin Menu > Camera Status dialog box. Conservative Memory Usage Thanks to MOBOTIX MxFFS File System MxFFS formatting of the MicroSD card means that MOBOTIX camera software will use the flash device as evenly as possible, thus allowing for the maximum possible number of write/delete cycles.
  • Page 118 SD card (Admin Menu > Error Notification Function.). The MicroSD card can then be replaced to ensure that any existing data is not lost. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 119: Formatting The Microsd Card

    MxFFS-formatted). The following steps are necessary to format a storage device (Admin / Flash Device Menu > Storage on External File Server / Flash Device): 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Click Format in the SD Memory Card line.

  • Page 120: Activating Microsd Card Recording

    Storage on External File Server / Flash Device 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Make sure that the MicroSD card is formatted in MxFFS format. 3. Activate the SD Flash Card option.

  • Page 121: Accessing Data On The Microsd Card

    • In MxControlCenter: Play back the recorded video sequences with audio by accessing the MicroSD card in the MOBOTIX camera via the camera or with a direct access to the MicroSD card via a card reader connected to the computer. Access the card by setting the MicroSD card’s drive/volume as a directory in MxControlCenter.

  • Page 122: Using A Microsd Card In A Different Mobotix Camera

    This is limited to 4 MB of lost data per incident due to MxFFS formatting. 3.4.6 Using a MicroSD Card in a Different MOBOTIX Camera A MicroSD card containing recorded video data from a MOBOTIX camera can be inserted into any MicroSD card-enabled MOBOTIX camera. Once a MicroSD card recording has been activated (requires a reboot), the ”new”...

  • Page 123: Configuration In The Browser

    HTTP commands using programs and scripts of the embedded software. The settings are stored in the camera’s flash memory. This section contains an overview of the basic browser settings of the MOBOTIX camera as well as further configuration options. Detailed information on the software functions is provided in the camera’s online help.
  • Page 124 MOBOTIX camera. The camera can use either NTP time servers or Time Protocol servers. For more information on this topic, refer to the online help for the specific dialog boxes.

  • Page 125: General Browser Settings

    (Image Programs Quick Control). • Set the resolution of the live image: By default, all MOBOTIX cameras are factory- set to an image resolution of 640 x 480 pixels. You can select the desired resolution using the Resolution Quick Control.
  • Page 126 Action Group Overview dialog box. • Activate shock detector: The M25M is also equipped with a shock detector as stan- dard (for all IT and Secure models). If, for example, the camera’s housing receives a blow, it automatically registers it and sends a notification via a network message or telephone call.

  • Page 127: Additional Notes

    Due to its robust and carefully constructed design and the lack of mechanical moving parts, the M25M has some outstanding weatherproof features and is resistant to moisture and dust. Certified according to the IP66 standard, the camera is even resistant to water jets but is not completely airtight.

  • Page 128: Password For The Admin Menu

    If you lose the administrator password and cannot access the administration menu, the password can only be reset at the factory. This service is subject to a fee! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 129: Permanently Deactivating The Microphone

    Text and logos can be also deactivated or and the MOBOTIX logo at the top of the image. Once the camera arming has been acti- individually configured vated, the text at the bottom of the live image (event, action, messaging and recording symbols) will also appear.

  • Page 130: Deactivating The Camera Reboot

    All users of MOBOTIX products are therefore required to familiarize themselves with all valid regula- tions and comply with these laws. MOBOTIX AG is not liable for any illegal use of its products.

  • Page 131: Safety Warnings

    1 W! used, Never touch the lens: Due to the high performance of the M25M, the area of the image sensor can get quite hot, especially when the ambient temperature is also high. This does not affect the proper functioning of the camera in any way.

  • Page 132: Online Help In The Browser

    Electrical and electronic products contain many reusable materials. For this reason, we would ask that you dispose of MOBOTIX products at the end of their service life in accor- dance with all legal requirements and regulations (or deposit these products at a munic- ipal collection center).
  • Page 133 /136 Additional Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 134 /136 M25M Camera Manual Notes Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 135: Manufacturer

    /136 /136 Manufacturer To demonstrate our confi dence in the quality of our products, MOBOTIX cameras have been used to capture all images that appear in this manual. Manufacturer MOBOTIX AG Kaiserstrasse 67722 Langmeil Germany Phone: +49 6302 9816-103 Fax: +49 6302 9816-190 www.mobotix.com...
  • Page 136 IP66-certified housing and long-term internal storage on a MicroSD card. Innovations - Made in Germany The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems cost efficient.
