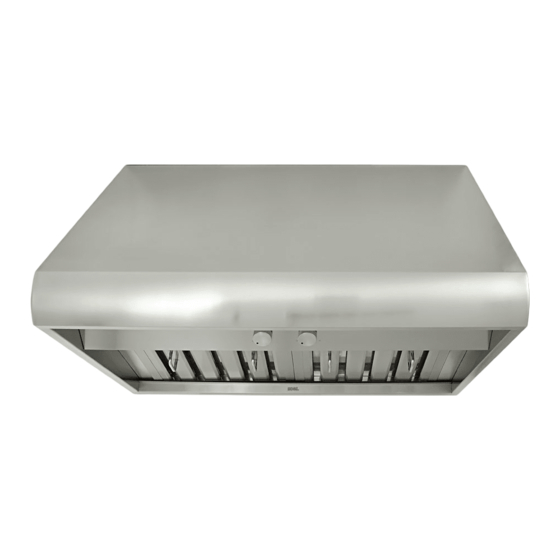

Premium Series
CH00 SQB-1 Series
Model No.
Under Cabinet: CH0036SQB-1 (36")
Wall Mount: CH0036SQB-WM-1 (36")
KOBE Range Hoods
CH0042SQB-1 (42")
CH0048SQB-1 (48")
CH0042SQB-WM-1 (42")
CH0048SQB-WM-1 (48")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH0042SQB-1 and is the answer not in the manual?

Questions and answers

Related Manuals for KOBE CH0042SQB-1

Summary of Contents for KOBE CH0042SQB-1

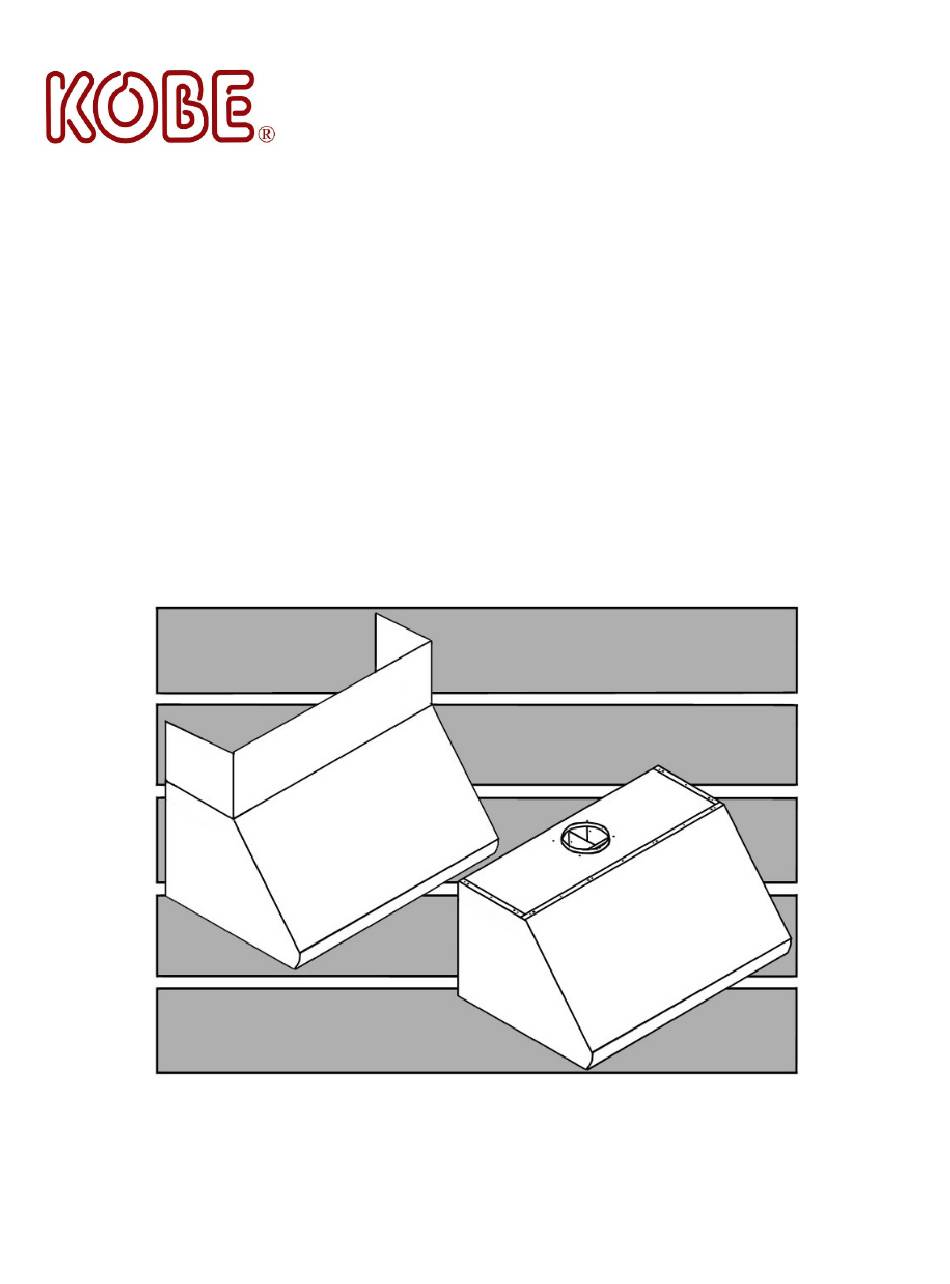

  • Page 1 KOBE Range Hoods Premium Series CH00 SQB-1 Series Model No. Under Cabinet: CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) Wall Mount: CH0036SQB-WM-1 (36”) CH0042SQB-WM-1 (42”) CH0048SQB-WM-1 (48”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
  • Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of packages. 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEM: 1.

  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION ........................... 4 OPERATION INSTRUCTIONS....................11 MAINTENANCE ........................12 SPECIFICATIONS ........................13 MEASUREMENTS & DIAGRAMS ..................... 15 PARTS LIST ..........................17 CIRCUIT DIAGRAM ........................20 TROUBLE SHOOTING ......................

  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 6: Components Of Package

    Screw Package for Duct Cover     Model No. CH0048DC-12 for 48'' hood Duct Cover Screw Package for Duct Cover M4 x 1-1/2” (6) FOR MORE INFORMATION, PLEASE VISIT OUR W EBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.

  • Page 7: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood...
  • Page 8 SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. CH00 SERIES – UNDER THE CABINET INSTALLATION ..............6 CH00 SERIES –...
  • Page 9 CH00 SERIES – UNDER THE CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the  hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood ...
  • Page 10 Ductwork Installation Figure 5 7. Use 6” round steel pipe for 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.
  • Page 11 CH00 SERIES – STAND ALONE INSTALLATION ***This installation required to have Duct Cover Model No.: CH0036DC-12 / CH0042DC-12 / CH0048DC-12 Preparation before Installation Figure 9 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the ...
  • Page 12 5. Align hood-mounting bracket to the six screws Figure 12 on the wall and hook hood into place. Tighten screws to secure hood to the wall. 6. For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more secure installation, use as many mounting holes as needed to secure from the inside of hood (screws included).
  • Page 13 Duct Cover Installation Figure 13 8. Use 6” round steel pipe for 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.

  • Page 14: Operation Instructions

    OPERATION INSTRUCTIONS This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters, and bright LED lights. The two rotary controls are Light Control & Speed Control. Refer to Figure 16. Figure 16 Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish airflow in the kitchen.

  • Page 15: Maintenance

    MAINTENANCE For the optimal level of operation, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 16: Specifications

    SPECIFICATIONS MODEL / SIZE For Under Cabinet Application CH0036SQB-1 / 36" / Single Blower CH0042SQB-1 / 42” / Dual Blowers CH0048SQB-1 / 48” / Dual Blowers For Wall Mount Application CH0036SQB-WM-1 / 36” / Single Blower CH0042SQB-WM-1 / 42” / Dual Blowers CH0048SQB-WM-1 / 48”...
  • Page 17 Gross CH0036SQB-1 HOOD WEIGHT (lbs) CH0042SQB-1 CH0048SQB-1 SPEED High QuietMode SINGLE BLOWER CH0036SQB-1 Air Capacity (cfm) CH0036SQB-WM-1 Sone* DUAL BLOWERS CH0042SQB-1 Air Capacity (cfm) 1200 CH0048SQB-1 Sone* CH0042SQB-WM-1 CH0042SQB-WM-1 *One sone is equivalent to the sound of a refrigerator at 40 decibels.

  • Page 18: Measurements & Diagrams

    *** All inch measurements are converted from millimeters. Inch measurements are estimated. *** All measurements in ( ) are millimeters. - FOR UNDER THE CABINET – MODEL NO.: CH0036SQB-1 (36”) CH0042SQB-1 (42”) CH0048SQB-1 (48”) - FOR STAND ALONE – MODEL NO.: CH0036SQB-WM-1 (36”) CH0042SQB-WM-1 (42”)
  • Page 19 - FOR STAND ALONE- MODEL NO.: CH0036SQB-WM-1 (36”) CH0042SQB-WM-1 (42”) CH0048SQB-WM-1 (48”) ***Hood-Mounting Bracket Baffle Filters & Stainless Steel Spacer...

  • Page 20: Parts List

    PARTS LIST MODEL NO.: CH0036SQB-1 and CH0036SQB-WM-1 (36”) CH0042SQB-1 and CH0042SQB-WM-1 (42”) CH0048SQB-1 and CH0048SQB-WM-1 (48”) DESCRIPTION MODEL /SIZE PART NO. Screw(3/16”x3/8”) L1-0707-0002 6” Round Plastic Exhaust CH0036SQB-1 L1-0505-0003 CH0042SQB-1 8” Round Exhaust Plate L1-0505-0004 CH0048SQB-1 CH0036SQB-1 B101-0036-06 Light Panel...
  • Page 21 CH00 Series Model No.: CH0036SQB-1 and CH0036SQB-WM-1 (36”)
  • Page 22 CH00 Series Model No.: CH0042SQB-1 and CH0042SQB-WM-1 (42”) CH0048SQB-1 and CH0048SQB-WM-1 (48”)

  • Page 23: Circuit Diagram

    CIRCUIT DIAGRAM MODEL NO.: CH0036SQB-1 and CH0036SQB-WM-1 (36”) MODEL NO.: CH0042SQB-1 and CH0042SQB-WM-1 (42”) CH0048SQB-1 and CH0048SQB-WM-1 (48”)

  • Page 24: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter both motors to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. not working.

  • Page 25: Warranty

    TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.
  • Page 26 THIS WARRANTY WILL BE VOIDED WHEN: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercially, outdoor or other usage other than its intended purpose which is residential indoor usage only.

  • Page 27: Product Registration

    For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 ext. 103 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 ext. 103...
  • Page 28 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
