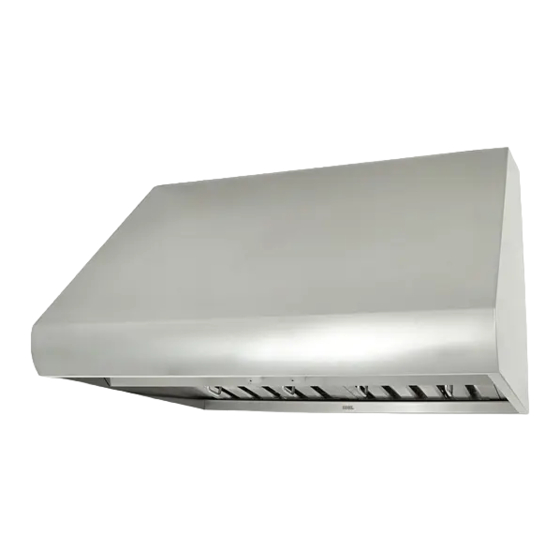

- Page 1 KOBE Range Hoods Deluxe Series CH00 SQB-5 Series Model No. Under Cabinet: CH0030SQB-5 (30”) CH0036SQB-5 (36”) CH0042SQB-5 (42”) CH0048SQB-5 (48”) Wall Mount: CH0030SQB-WM-5 (30”) CH0036SQB-WM-5 (36”) CH0042SQB-WM-5 (42”) CH0048SQB-WM-5 (48”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION ........................... 4 OPERATION INSTRUCTIONS....................11 MAINTENANCE ........................12 SPECIFICATIONS ........................13 MEASUREMENTS & DIAGRAMS ..................... 15 PARTS LIST ..........................17 CIRCUIT DIAGRAM ........................20 TROUBLE SHOOTING ...................... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
(Must keep all material for returns or refunds) CH00 SQB-5 Series RANGE HOOD BOX {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Oil Tunnel {E} Baffle Filter – 2 (30” & 36”) – 3 (42” & 48”) {F} Spacer x 2 {G} 6”... -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood... - Page 8 SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. CH00 SERIES – UNDER THE CABINET INSTALLATION ..............6 CH00 SERIES –...
- Page 9 CH00 SQB-5 SERIES – UNDER THE CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.
- Page 10 Ductwork Installation Figure 5 7. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.
- Page 11 CH00 SQB-5 SERIES – STAND ALONE INSTALLATION ***This installation required to have Duct Cover Model No. CH0030DC-12 / CH0036DC-12 / CH0042DC-12 / CH0048DC-12 Preparation before Installation Figure 9 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING.
- Page 12 5. Align hood-mounting bracket to the six screws Figure 12 on the wall and hook hood into place. Tighten screws to secure hood to the wall. 6. For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more secure installation, use as many mounting holes as needed to secure from the inside of hood (screws included).
- Page 13 Duct Cover Installation Figure 13 8. Use 6” round steel pipe for 30” and 36” models or 8” round steel pipe for 42” and 48” models (follow building codes in your area) to connect the exhaust on the hood to the ductwork above. Use duct tape to make all joints secure and air tight.
-
Page 14: Operation Instructions
OPERATION INSTRUCTIONS This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage, baffle filters, and bright LED lights. The two rotary controls are Light Control & Speed Control. Refer to Figure 28. Figure 28 Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to establish airflow in the kitchen. -
Page 15: Maintenance
MAINTENANCE For the optimal level of operation, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 16: Specifications
SPECIFICATIONS CH00 SQB-5 Series MODEL / SIZE For Under Cabinet Application CH0030SQB-5 / 30” / Single Blower CH0036SQB-5 / 36" / Single Blower CH0042SQB-5 / 42” / Dual Blowers CH0048SQB-5 / 48” / Dual Blowers For Wall Mount Application CH0030SQB-WM-5 / 30” / Single Blower CH0036SQB-WM-5 / 36”... - Page 17 SPEED High QuietMode™ SINGLE BLOWER CH0030SQB-5 Air Capacity (cfm) CH0036SQB-5 Sone* CH0030SQB-WM-5 CH0036SQB-WM-5 DUAL BLOWERS CH0042SQB-5 Air Capacity (cfm) 1100 CH0048SQB-5 Sone* CH0042SQB-WM-5 CH0048SQB-WM-5 *One sone is equivalent to the sound of a refrigerator at 40 decibels. **Specifications subject to change without notice.
-
Page 18: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS *** All inch measurements are converted from millimeters. Inch measurements are estimated. *** All measurements in ( ) are millimeters. CH00 SQB-5 Series - FOR UNDER THE CABINET – MODEL NO.: CH0030SQB-5 (30”) CH0036SQB-5 (36”) CH0042SQB-5 (42”) CH0048SQB-5 (48”) - Page 19 - FOR STAND ALONE- CH00 SQB-5 Series MODEL NO.: CH0030SQB-WM-5 (30”) CH0036SQB-WM-5 (36”) CH0042SQB-WM-5 (42”) CH0048SQB-WM-5 (48”) ***Hood-Mounting Bracket Baffle Filters & Stainless Steel Spacer...
-
Page 20: Parts List
PARTS LIST CH00 SQB-5 Series MODEL NO.: CH0030SQB-5 and CH0030SQB-WM-5 (30”) CH0036SQB-5 and CH0036SQB-WM-5 (36”) CH0042SQB-5 and CH0042SQB-WM-5 (42”) CH0048SQB-5 and CH0048SQB-WM-5 (48”) DESCRIPTION MODEL /SIZE PART NO. Screw(3/16”x3/8”) L1-0707-0002 6” Round Plastic Exhaust CH0030SQB-5/CH0036SQB-5 L1-0505-0003 8” Round Exhaust Plate... - Page 21 CH00 SQB-5 Series Model No.: CH0030SQB-5 and CH0030SQB-WM-5 (30”) CH0036SQB-5 and CH0036SQB-WM-5 (36”)
- Page 22 CH00 SQB-5 Series Model No.: CH0042SQB-5 and CH0042SQB-WM-5 (42”) CH0048SQB-5 and CH0048SQB-WM-5 (48”)
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CH0030SQB-5 and CH0030SQB-WM-5 (30”) CH0036SQB-5 and CH0036SQB-WM-5 (36”) MODEL NO.: CH0042SQB-5 and CH0042SQB-WM-5 (42”) CH0048SQB-5 and CH0048SQB-WM-5 (48”) -
Page 24: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. not working. -
Page 25: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE DELUXE SERIES: For one year from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 26 TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE CENTER: From the 48 contiguous states:...
-
Page 27: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For service in Canada and to report a problem, please contact:... - Page 28 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
