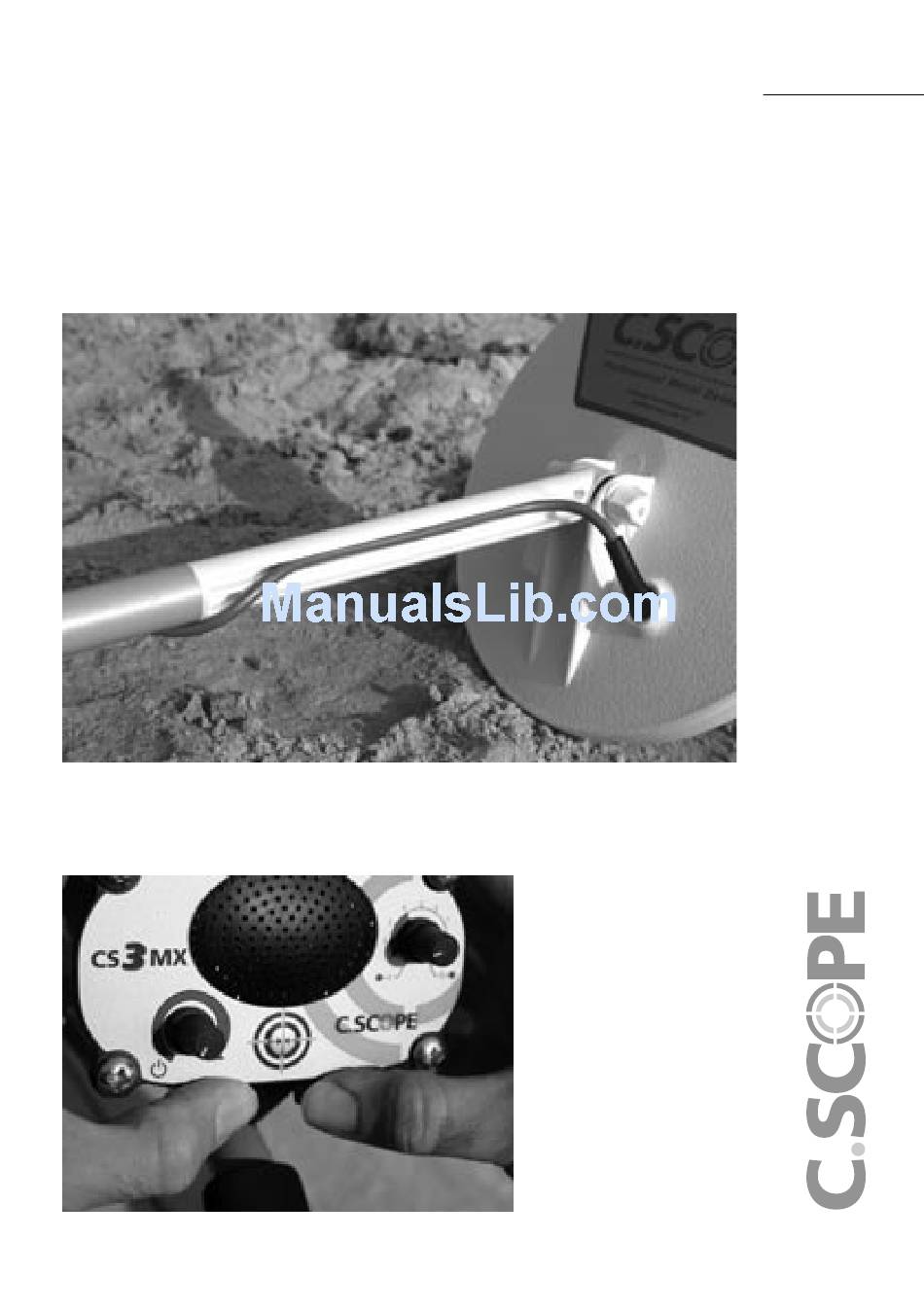

Adjust the position of the search-head so that it is parallel to the ground when
the user is in a normal standing position. Tighten the wing-nut on the search-
head retaining screw. Do not over-tighten. Friction of the head lugs against
the neoprene washers keeps the search-head in position. Excessive pressure on
these parts should not be necessary.
(If some form of lubricant should ever find its way onto these washers it will be
necessary to disassemble the parts, wash and dry them before careful reassembly).

belt mounting

Squeeze the control
box retaining clips
together using your
thumbs as shown in
the photograph.
The control box will
now slide towards you
free of the control box
mounting clip.
