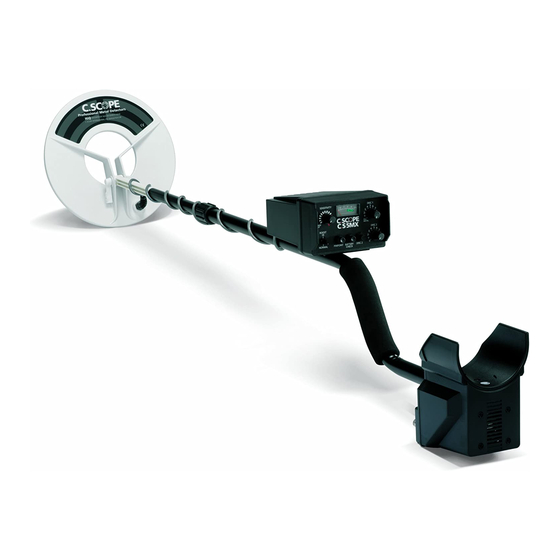

C-SCOPE CS5MX Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RAPID GET YOU GOING INSTRUCTIONS
1.
Assemble and adjust for length (Twist surplus lead around stem).
2.
Insert batteries.
3.
Set DISC 1 (top right) to ALL METAL (fully anticlockwise).
4.
Set DISC 2 (bottom far right) to 5.
5.
Set SENSITIVITY (top left) to 3 o'clock position.
6.
On CS5MX only:-
Push BATT CHECK down and hold to indicate battery condition. Good batteries
will be in the green area on the meter. Release.
7.
On CS5MX only:-
Set BOOST to NORMAL.
You are now in ALL METAL MOTION MODE.
You will find all metals within the search head range including iron and trash
PROVIDING THE SEARCH HEAD IS MOVING OVER THE TARGET (not stationary).
To ignore low value metals (iron & trash):-
8.
Adjust DISC 1 (top right) to position 5.
You are now in DISCRIMINATING MOTION MODE.
The other modes require more detailed explanation acquired from reading the full
instructions.
IF A PROBLEM IS ENCOUNTERED REFER TO THE FULL INSTRUCTIONS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS5MX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for C-SCOPE CS5MX

Summary of Contents for C-SCOPE CS5MX

  • Page 1 Set DISC 2 (bottom far right) to 5. Set SENSITIVITY (top left) to 3 o'clock position. On CS5MX only:- Push BATT CHECK down and hold to indicate battery condition. Good batteries will be in the green area on the meter. Release.

  • Page 2: Table Of Contents

    CONTENTS: PAGE INTRODUCTION ASSEMBLY BATTERIES BATTERY CHECK CONTROLS AND WHAT THEY DO OPERATING YOUR METAL DETECTOR DETECTION RANGE DETERMINING THE TARGET SIZE AND DEPTH ACCESSORIES (OPTIONAL) CHARGING BATTERIES THE IMPORTANCE OF THE RIGHT APPROACH SWEEPING TECHNIQUE CODE OF CONDUCT FOR METAL DETECTOR USERS CARE OF YOUR DETECTOR DETECTOR NOT OPERATING?
  • Page 3 Stem Connecting Nut Cable Lower Stem Search Head Fastener Power On / Off & Sensitivity All Metal Mode / Discrimination 1 Pinpoint Disc 2 Select Discrimination 2 Signal Meter (CS5MX only) Boost Hi / Normal (CS5MX only) Battery Check (CS5MX only)

  • Page 4: Introduction

    To protect your investment complete both sections of the enclosed guarantee card and return the reply paid portion to C-Scope. This is particularly important in order to register for the free extended parts guarantee (UK only). Please retain the original packing box. In the event that your detector should ever require to be serviced, this package will be most suitable for postal protection.

  • Page 5: Battery Check

    Note: Zinc Carbon batteries should not be left in the detector for long periods where they could leak, so remember to remove them at the end of a day's searching. BATTERY CHECK CS2MX only CS5MX only The battery condition is indicated by an A battery condition indicator is provided audio tone.

  • Page 6: Controls And What They Do

    On/Off - Sensitivity Pinpoint push select button Disc 1 Boost (CS5MX only) Disc 2 Signal Meter (CS5MX only) Disc 2 push select button Battery Check (CS5MX only) ON/OFF - SENSITIVITY Switches detector on by rotating clockwise and adjusts sensitivity to metal.
  • Page 7 Effect of Discriminate Control Position CIGARETTE PACKET MILK 5p COIN BOTTLE TOP RING PULL HORSESHOE NAIL SCREW CAP DISC 2 This control is identical to Disc 1 and allows you to further identify the target signal being received. With Disc 1 set at 5 to reject small iron and silver foil, commence searching. Remember the detector is a motion detector, which means that the search head needs to be constantly sweeping (except in pinpoint mode - see page 9).
  • Page 8 The more familiar you become with your metal detector the more skilful combinations of Disc 1 & 2 you will use. The following chart gives a few ideas of setting and the conditions under which you would employ them. DISC SETTING DISC 1 DISC 2 WHEN USED...
  • Page 9 SOUND LEVEL NORMAL RESPONSE PINPOINT RESPONSE SIGNAL METER/BATTERY CHECK (CS5MX only) This is a visual indication of the signal strength giving the experienced user more information about the target. This is particularly useful for pinpointing. When the BATT CHECK is pressed, the meter will indicate condition of the batteries.

  • Page 10: Operating Your Metal Detector

    OPERATING YOUR METAL DETECTOR Check the batteries are in good condition prior to searching. Frequently check the battery condition during the search. Rechargeables give little warning of failure so ensure they are fully charged prior to a long period of searching or carry a fresh set with you. ( See Batteries, page 4). The unit may operate with reduced sensitivity for a period after indicating 'flat' batteries.

  • Page 11: Accessories (Optional)

    The C-Scope battery charger is designed to charge the rechargeable pack quickly and safely. CHARGING BATTERIES A battery charge socket is provided for use with the C-Scope battery charger (see Accessories) and is located under the protective cap in the battery housing. (The smaller of the two sockets.) Inserting the charger will automatically remove the power from the detector so the charger must be removed to do a battery check.
  • Page 12 A successful search should begin with research some time before the day of the actual search. The extent and thoroughness of your research will be one of the major factors in the success of your detecting. You should aim to get as complete an understanding as possible of the local history and geography.

  • Page 13: Sweeping Technique

    Search Head Position It is essential that the search head is kept close and parallel to the ground as in B. Do not hold the search head too high above the ground, or at an odd angle as in A, C, D as you will be apt to miss finds.

  • Page 14: Code Of Conduct For Metal Detector Users

    CODE OF CONDUCT FOR METAL DETECTOR USERS 1. Do not trespass. Ask permission before venturing on to any private land. 2. Respect the Country Code. Do not leave gates open when crossing fields, and do not damage crops or frighten animals. 3.

  • Page 15: Detector Not Operating

    DETECTOR NOT OPERATING? (a) Check the condition of batteries under load using the meter. (See Battery Check Procedure). (b) Check that the search head is properly attached to the control box via the search head cable connector. (c) Interchange batteries and ensure connections are correct and secure. Battery life can vary tremendously between makes, therefore your 'new' batteries may already be insufficiently powerful to run the detector.

  • Page 16: Further Information

    If you experience any difficulty in operating your metal detector, or have any questions on the information in your Operating Instructions Manual, please do not hesitate to phone our Customer Service Department on (01233) 629181. Before returning a detector for repair to C-Scope ensure you have done the following:- (a) Read the instructions thoroughly.

This manual is also suitable for:

Cs2mx

Table of Contents
