Belt mounting

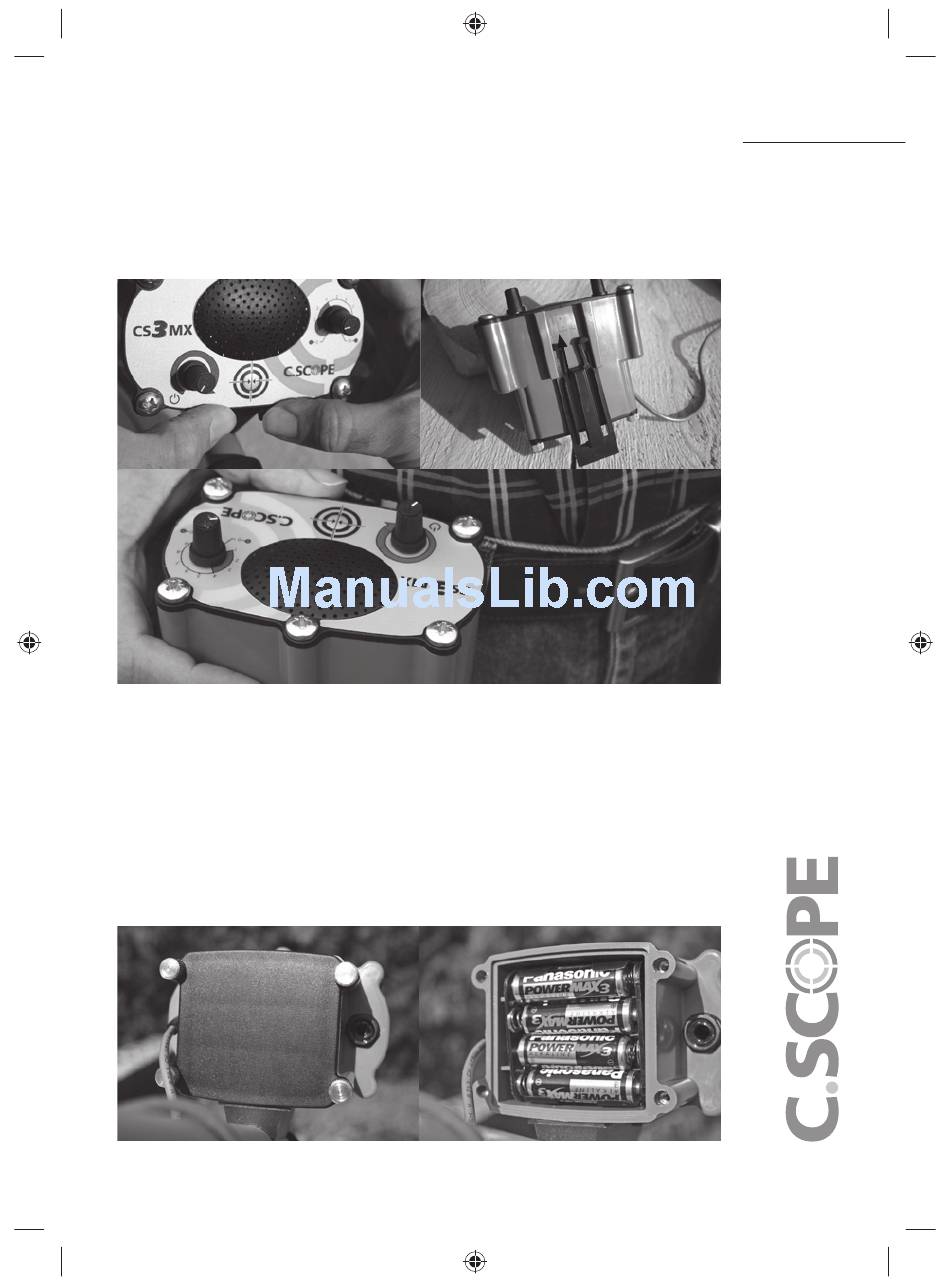

Squeeze the control box retaining clips together using your thumbs as shown in the photograph.
The control box will now slide towards you free of the control box mounting clip. The control box can
be fi tted to your belt using the clip provided. In belt mounted use, be sure to wind the search-head
cable up the stem at least to the length adjuster and secure it with tape or cable tie. This is because
the search-head is sensitive to metal objects above to some extent and the lead will be detected if it
is left free to move.

Batteries

Undo the 4 battery compartment retaining screws and take out the battery holder. Fit 8 good
quality AA type batteries into the compartments of the battery holder. Observe polarity of the batteries
(the spring contact goes against the fl at, negative end of the battery). Roll the batteries in the holder to
ensure good contact and replace into the battery compartment with the contacts on the holder lining
up with the contacts in the compartment. Replace the battery compartment cover being very careful
to avoid cross threading the screws. Battery condition is monitored continuously on the CS3MX. Low
battery condition is indicated by a step change in the signal tone to a higher pitch.
