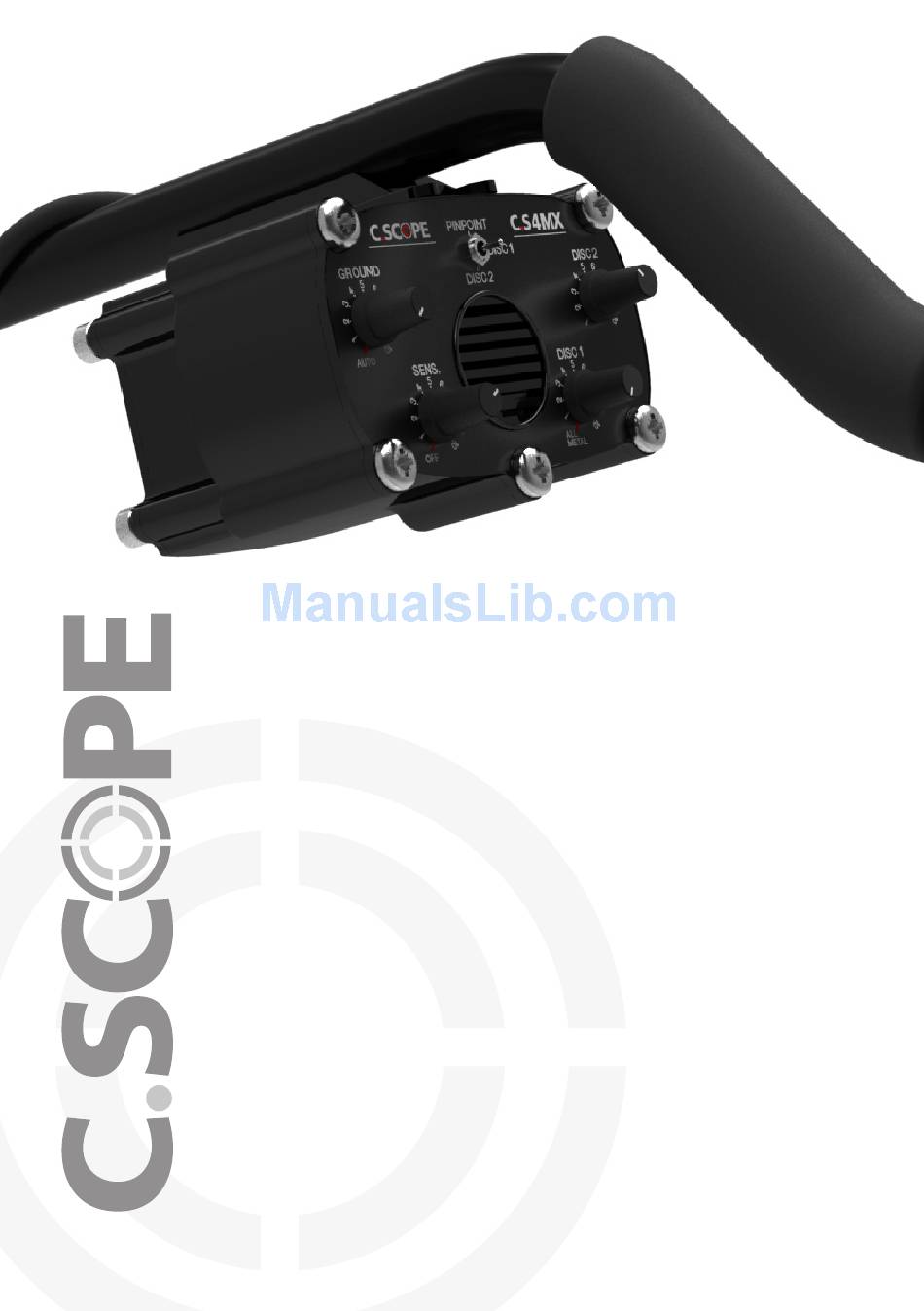

  • Page 1 CS4MX Operating Instructions...

  • Page 2: Identifying The Parts

    CS4MX Identifying the Parts 1) On Off/ Sensitivity control 2) Ground Level control 3) Pinpoint/ Discrimination 1/ Discrimination 2 switch 4) All-Metal/ Discrimination Level control 1 5) Discrimination Level control 2 6) Control box mounting clip 7) Loudspeaker 8) Battery compartment...
  • Page 3 CS4MX CS4MX Overview The CS4MX is a high performance metal detector operating on the ‘MOTION’ principle. This means that the search-head must be kept moving at a steady sweep speed to achieve optimum performance. The CS4MX provides the option of interchangeable search-heads to optimise performance on a variety of site conditions.

  • Page 4: Rapid Start

    Rapid start Follow these simple steps to start using the CS4MX within minutes: 1) Insert the lower stem into the upper stem (first press in the spring clip). 2) Twist the locking device so that the stem is locked at the required length.
  • Page 5 ‘Detecting with the CS4MX’). 3) Pinpoint/ Discrimination 1/ Discrimination 2 switch. The ‘motion’ aspect of the CS4MX is switched off whilst the pin-point mode is selected (switch in up position). In pin-point mode the search-head can be held still to determine the precise target position.
  • Page 6 Assembling the CS4MX The stem lock should be slackened to allow the lower stem to enter the upper stem section. The spring clip should be pressed in to allow the lower stem to slide into the upper stem. This spring clip will pop into any of the holes in the upper stem and firmly fix the two stems together.

  • Page 7: Belt Mounting

    Replace the battery compartment cover being careful to avoid cross threading the screws. Battery condition is monitored continuously on the CS4MX. Low battery condition is indicated by a step change in the signal tone to a higher pitch.
  • Page 8 Detecting with the CS4MX On the majority of inland sites the ground control should be set to AUTO and the recommended sensitivity setting between 7-9 on the scale will give the best results. Some types of ground may give rise to false signals and the sensitivity level should be reduced to a point where operation of the detector becomes stable.
  • Page 9 We recommend searching with a low level of discrimination (1-4 on DISC 1). At this setting the CS4MX will not react to small pieces of iron but will give a positive audio tone on other metal targets. Increasing the discrimination level will eliminate signals from a wider range of metal objects which are likely to be rubbish.
  • Page 10 The CS4MX can be set to ignore signals from certain categories of metal target. Small iron objects in the ground are a problem on many farmland sites.

  • Page 11: Detector Care

    Detector care The CS4MX is a robust design, however the control box should be treated with similar care as any electronic product. Dry off any water splashes immediately. The search-head may be immersed in water although the connector at the other end of the lead should always be kept dry.
  • Page 12 C.SCOPE is an ISO 9001 Accredited Quality Manufacturer. This equipment conforms to the EMC directive 89/336/EEC. System performance may be impaired by unusually strong electromagnetic fields. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
