Page 1: Operating Instructions

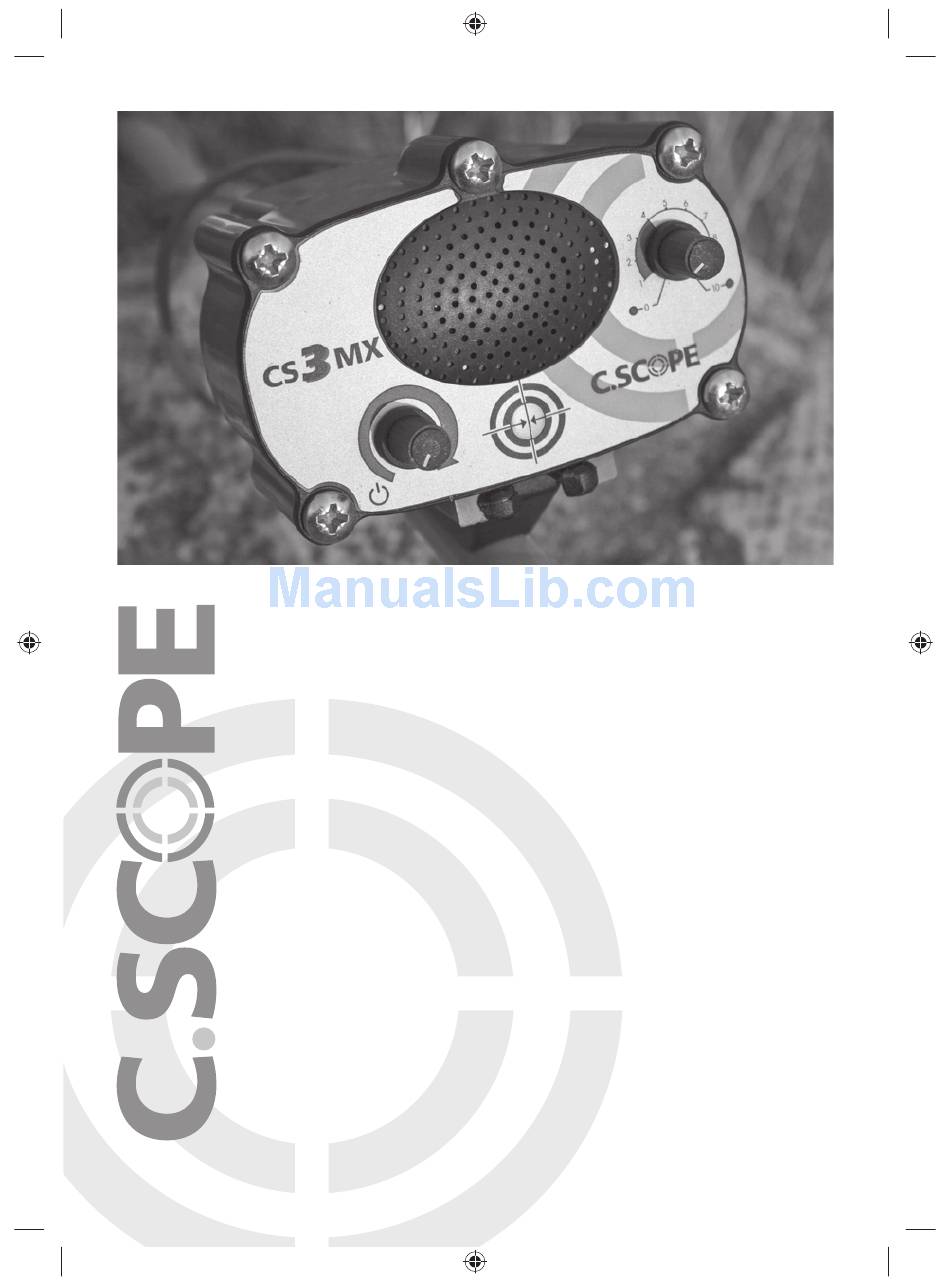

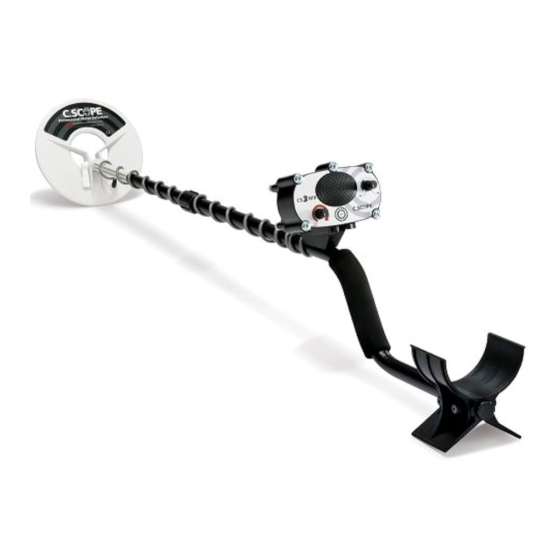

CS3MX operating instructions CS3MX_Compact.indd 1 CS3MX_Compact.indd 1 23/01/2009 10:29 23/01/2009 10:29... - Page 2 CS3MX naming of the parts 1) Control box mounting clip 2) On/Off/sensitivity control 3) Loudspeaker 4) Pin-point push button 5) All-metal/discrimination level control 6) Battery compartment 7) 8 x AA battery holder 8) Battery contacts 9) Search-head lead 10) Headphone socket...
-
Page 3: Rapid Start
The controls and what they do 1) Control box mounting clip. For ultimate lightweight metal detecting the CS3MX control box can be removed and fi tted to a belt around the body. This leaves only the search-head on the stem which reduces fatigue on the arm. - Page 4 4) Pin-point. The ‘motion’ aspect of the CS3MX is switched off whilst the pin-point button is depressed. In pin-point mode the search-head can be held still to determine the precise target position. Pin-point mode operates in ‘All Metal’, ie whatever level of discrimination you have preset will be switched off while the pin-point button is depressed.
-
Page 5: Belt Mounting
Replace the battery compartment cover being very careful to avoid cross threading the screws. Battery condition is monitored continuously on the CS3MX. Low battery condition is indicated by a step change in the signal tone to a higher pitch. - Page 6 We recommend searching with a low level of discrimination (green area on the scale 1-4). At this setting the CS3MX will not react to small pieces of iron but will give a positive audio tone on other metal targets. Increasing the discrimination level will eliminate signals from a wider range of metal objects which are likely to be rubbish.
-
Page 7: Detector Care
Effect of discriminate control position Detector care The CS3MX is a robust design, however the control box should be treated with similar care as any electronic product. Dry off any water splashes immediately. The search-head may be immersed in water. Stem and search-head parts should be cleaned and dried at the end of a day’s detecting. - Page 8 C.SCOPE is an ISO 9001 Quality Manufacturer. This equipment conforms to the EMC directive 89/336/EEC. System performance may be impaired by unusually strong electromagnetic fi elds. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
