C-SCOPE CS2MX Operating Instructions Manual

Operating on the ‘motion’ principle
Hide thumbs Also See for CS2MX:
Table of Contents

Advertisement

Quick Links

Download this manual
CS2MX
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS2MX and is the answer not in the manual?

Questions and answers

Related Manuals for C-SCOPE CS2MX

Summary of Contents for C-SCOPE CS2MX

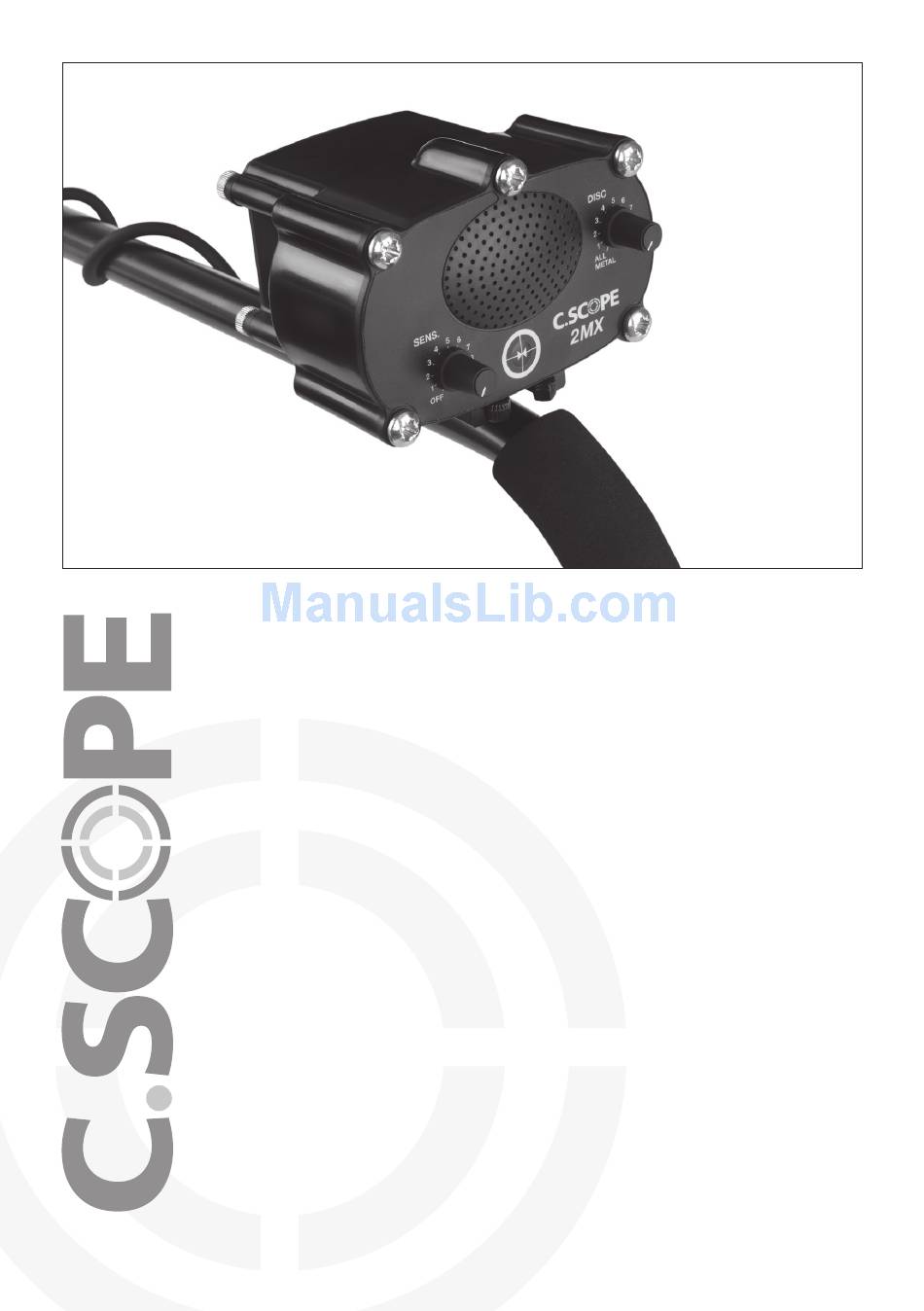

  • Page 1 CS2MX Operating Instructions...
  • Page 2 CS2MX Identifying the Parts 1. Control box mounting clip 2. On/Off/Sensitivity control 3. Loudspeaker 4. Pin-point push button 5. All-metal/discrimination level control 6. Battery compartment 7. 8 x AA battery holder 8. Headphone socket 9. Battery contacts 10. Control box 11.
  • Page 3 The discrimination system is capable of eliminating signals from a variety of metals which are likely to be valueless. The CS2MX is designed to offer high performance whilst being easy to operate. We wish you good hunting! Rapid start Follow these simple steps to start using the CS2MX within minutes: 1.
  • Page 4 Pin-point. The ‘motion’ aspect of the CS2MX is switched off whilst the pin-point button is depressed. In pin-point mode the search-head can be held still to determine the precise target position.
  • Page 5 Replace the battery compartment cover being careful to avoid cross threading the screws. Battery condition is monitored continuously on the CS2MX. Low battery condition is indicated by a step change in the signal tone to a higher pitch.
  • Page 6 We recommend searching with a low level of discrimination (between ‘1’ and ‘4’). At this setting the CS2MX will not react to small pieces of iron but will give a positive audio tone on other metal targets. Increasing the discrimination level will eliminate signals from a wider range of metal objects which are likely to be rubbish.
  • Page 7 The CS2MX can be set to ignore signals from certain categories of metal target. Small iron objects in the ground are a problem on many farmland sites. These signals can be ignored by setting the discriminate control to about number ‘2’...
  • Page 8 Check with your local authority or retailer for recycling advice. (In the UK visit www.recycle-more.co.uk) Copyright© 2015 C.Scope International Ltd. C.Scope has a policy of continuous product development and reserves the right to change the design, specification and labelling without notice. All errors and omissions excepted. B1089 issue 1...
