C-SCOPE CS7 Operating Instructions Manual

Underwater
Hide thumbs
Table of Contents

Advertisement

Quick Links

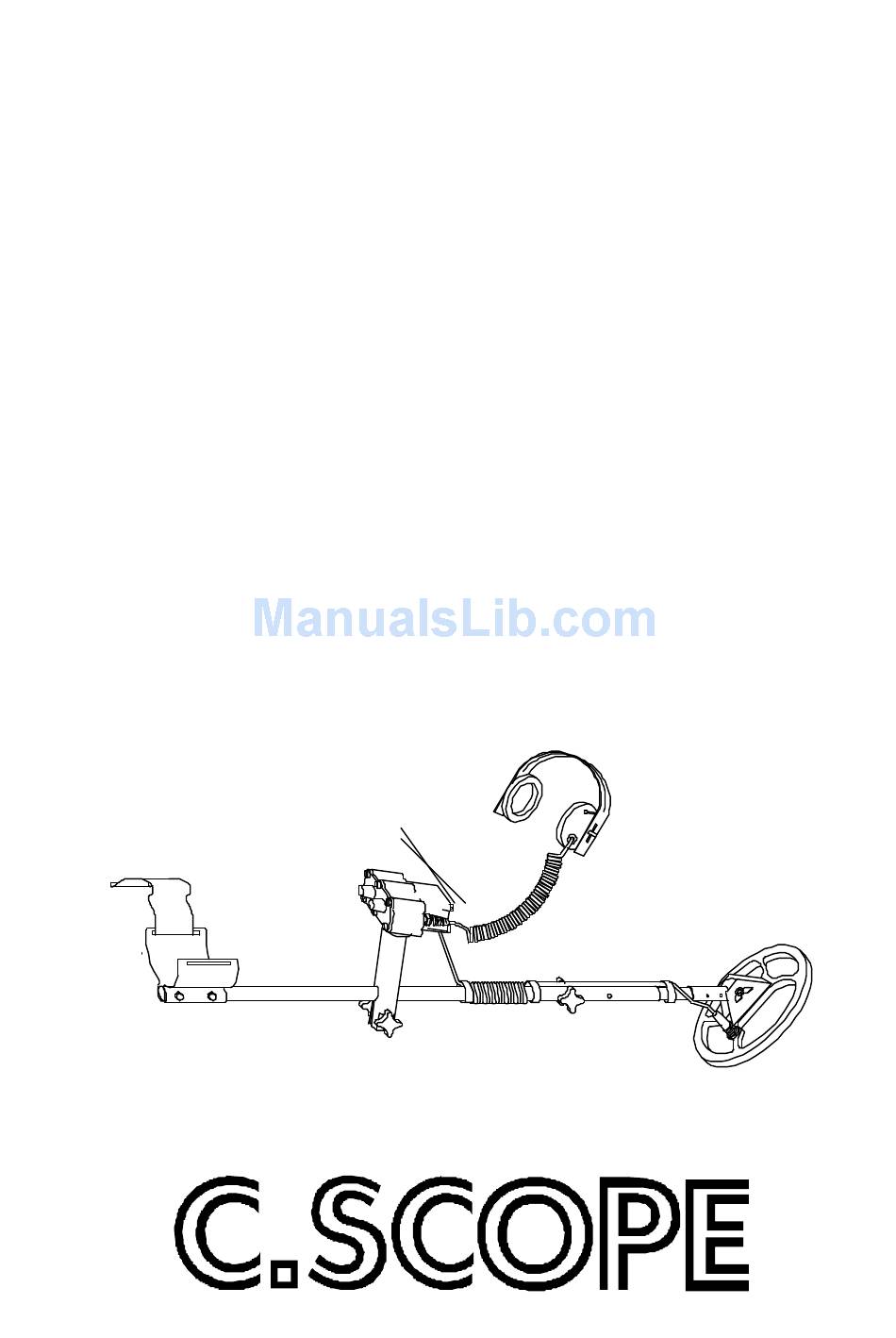

CS7
U
NDERWATER
M
ETAL
D
ETECTOR
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS7 and is the answer not in the manual?

Questions and answers

Related Manuals for C-SCOPE CS7

Summary of Contents for C-SCOPE CS7

  • Page 1 NDERWATER ETAL ETECTOR OPERATING INSTRUCTIONS...
  • Page 3 CS7 - RAPID GET YOU GOING INSTRUCTIONS Assemble and set stem to desired length. (Neatly twist surplus lead around stem close to the handle, and secure with self securing straps). Adjust head to correct angle and tighten both head bolt.

  • Page 4: Table Of Contents

    ASSEMBLY BATTERIES BATTERY CHECK CONTROLS AND WHAT THEY DO OPERATING YOUR CS7 IMPORTANT CONSIDERATIONS ACCESSORIES (OPTIONAL) AVAILABLE FROM C-SCOPE CARE OF YOUR DETECTOR LIMITATION OF WARRANTY DETECTOR NOT OPERATING? FURTHER INFORMATION © C-Scope International Limited The information contained in this manual was correct at the time of going to press.
  • Page 5 Controls C-Scope CS7 Upper Stem Adjustable Handle Detachable Control Box Battery Compartment Stem Bolt Lower Stem Head Securing Bolt Batt. Check/Frequency Control On/Off – Threshold Control LED Target Indicator Battery Condition Indicator...

  • Page 6: Introduction

    For Diving The CS7 is waterproof to a depth of 75m, (250 feet). Its pulse induction design makes it ideal for underwater use. IMPORTANT: always employ safe diving methods and do not belt mount the control box when diving. The cables could become entangled with submerged objects and make it difficult to jettison the detector and impede the diver in any attempt to resurface quickly.

  • Page 7: Batteries

    The CS7 is powered by eight AA batteries (not supplied) available from garages, department stores, etc. or a single 12v rechargeable pack from C-Scope. It is advisable to use standard batteries to start with. You can then evaluate the sort of use you give the detector and decide whether the investment in rechargeables is justified.

  • Page 8: Controls And What They Do

    comes on the batteries should be replaced, or recharged in the case of rechargeable batteries. Turn the THRESHOLD control to OFF. Checking The Batteries Green Yellow CONTROLS AND WHAT THEY DO The control panel comprises two rotary controls, signal and battery condition indicators. ON/OFF - THRESHOLD control is used to set the audio tone of the machine.

  • Page 10: Battery Check

    Whilst in this position the battery indicator will show the condition of the batteries. If the GREEN indicator fails to come ON then the batteries should be changed. The CS7 is a low current drain design and typical battery life will be 25 hours of intermittent use.

  • Page 11: Operating Your Cs7

    The CS7 is a MOTION PULSE design which means that the search-head must be kept in motion with a steady swing from side to side in order for it to work to maximum effect. It is possible to sweep the head too fast over a faint target - get the feel of this by practice, and sweep the detector head accordingly.

  • Page 12: Limitation Of Warranty

    (salt water, sand, etc.) the exterior parts should be flushed with clean fresh water, paying particular attention to clean all mating and moving surfaces of sand or silt which, if left, can have severe detrimental effects on the durability of your CS7 detector. The use of solvents or detergents should be avoided.

  • Page 13: Further Information

    FURTHER INFORMATION If you experience any difficulty in operating your CS7, or have any questions on the information in your CS7 Operating Instructions Manual, please do not hesitate to phone our Customer Service Department on 44(0)1233629181. Before returning a detector for repair to C-Scope ensure you have done the following:- (a) Read the instructions thoroughly.
