C-SCOPE CS8SST Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CS8SST
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS8SST and is the answer not in the manual?

Questions and answers

Related Manuals for C-SCOPE CS8SST

Summary of Contents for C-SCOPE CS8SST

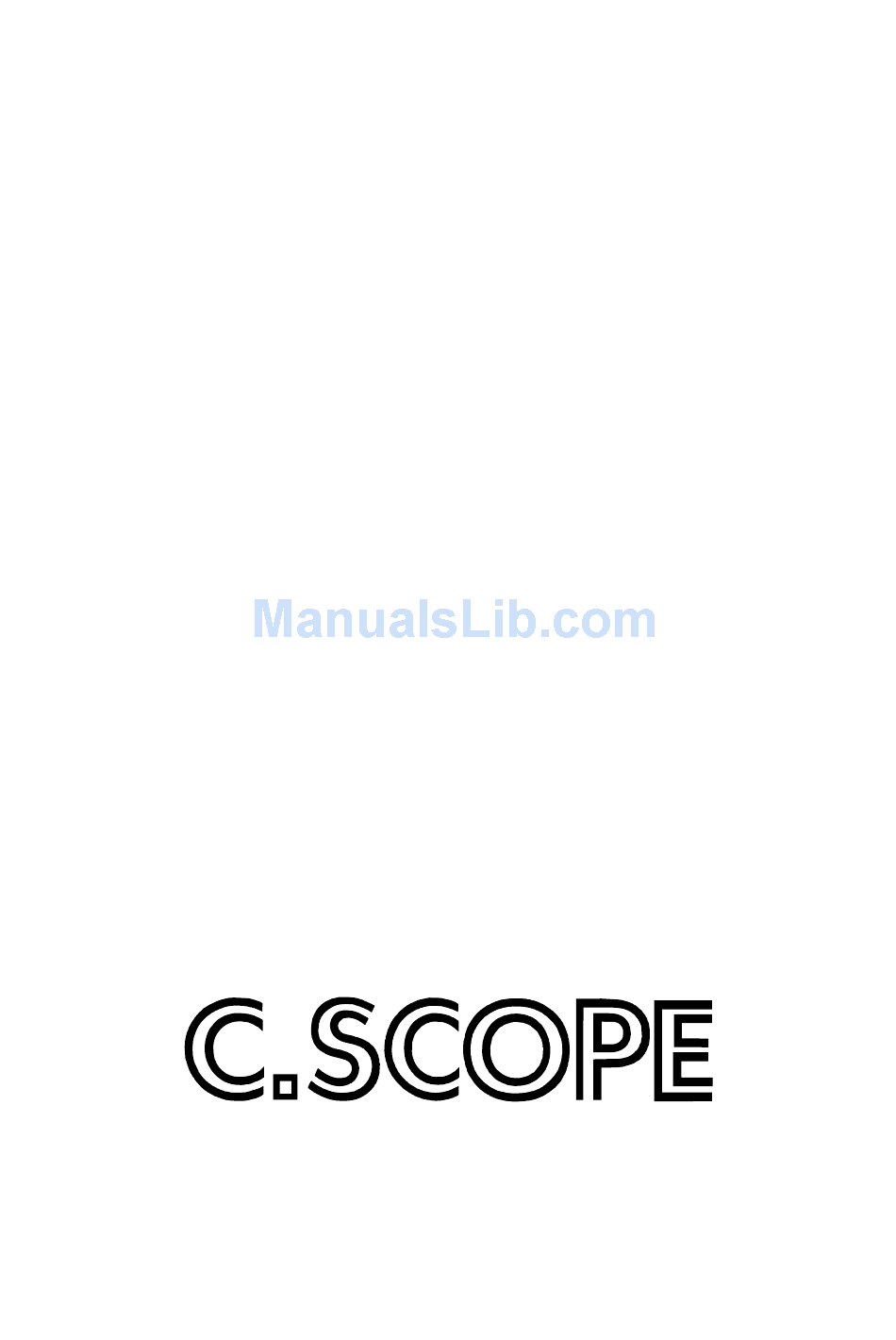

  • Page 1 CS8SST OPERATING INSTRUCTIONS...
  • Page 2 CS 8 SST - RAPID GET YOU GOING INSTRUCTIONS SET-UP Assemble and adjust for length (Twist surplus lead around stem).
  • Page 3 Insert batteries. Set the controls on the front panel as follows: • NOTCH (SELECT) Fully anti-clockwise • NOTCH (WIDTH) Fully anti-clockwise • DISC 9 o'clock • POWER 3 o'clock. (This switches the unit on. The right hand LED on the front panel will illuminate for about one second indicating charged batteries.) SEARCHING Keep the search head at a constant height, i.e.
  • Page 4 CS 8SST Battery Compartment Upper Stem & Handle Grips Din Plug & Socket Stem Connecting Nut Cable Lower Stem Search Head & Fastener...
  • Page 5 To protect your investment complete both sections of the enclosed guarantee card and return to C-Scope. This is particularly important in order to obtain the free second year parts guarantee. Please retain the original packing box. In the event that your detector should ever require to be serviced, this package will be most suitable for postal protection.

  • Page 6: Battery Check

    The CS8SST is powered by eight AA batteries (not supplied) available from garages, department stores, etc. or a single 12v rechargeable pack from C-Scope. It is advisable to use standard alkaline batteries to start with. You can then evaluate the sort of use you give the detector and decide whether the investment in rechargeables is justified.
  • Page 7 1) Deactivate the SST Scan feature 2)Use headphones The CS 8 SST has a built in battery monitoring system. This functions continuously during normal operation. As long as the batteries have sufficient voltage to operate the instrument will give no indication. However, when the voltage drops low enough to cause erratic or unpredictable operation, the led bar graph will go blank.
  • Page 8 THE FEATURES IN DETAIL • LED Bar Graph • Power/Sensitivity • Discriminate • Pinpoint button • Notch Select • Notch Width • SST Scan The LED bar graph provides target identification, depth (in inches) and indicates that the ground Scan is activated. The Power/Sensitivity control turns the unit on and sets the level of sensitivity.
  • Page 9 power on or the detector will not function correctly. If a problem is encountered turn the detector off to reset the microprocessor. When you first begin using the CS 8 SST it is suggested that you set the Discriminate control, Notch Select and Notch Width fully counter-clockwise. This turns the notch facility off.
  • Page 10 where items fall out on the control iron will be rejected at about the 8 or 9 o’clock setting. Most pull-tabs will fall out at around the 2 or 3 o’clock position and screw caps are eliminated at the fully clockwise position. NOTCH SELECT &...

  • Page 11: General Hints

    GENERAL HINTS Pin-Pointing When pinpointing it is important that the search head is held still while pushing in and holding the detune button. Hold the search head close but not directly over the suspected centre and while keeping the search head stationary, depress the button. Now, sweep towards the centre of the target.

  • Page 12: Detection Range

    Detection Range Your CS8SST is a top performance detector but adverse soil conditions can significantly reduce the depth of detection. Detection ranges will vary depending on the size of the object, the length of time an object has been buried, and the type of ground the object is buried in.

  • Page 13: Charging Batteries

    A shrink wrapped pack of 8 rechargeable Nickel Cadmium batteries to replace the standard batteries and holder. Battery charger: The C-Scope battery charger is designed to charge the rechargeable pack quickly and safely. Search head cover: This provides protection to the underside of the search head when detecting in muddy or stony conditions.

  • Page 14: The Importance Of The Right Approach

    THE IMPORTANCE OF THE RIGHT APPROACH Treasure hunting can be a profitable and rewarding hobby, if approached in a patient and diligent manner. Time spent researching to locate a worthwhile site for a search can be time wasted if your search is hasty and erratic. To achieve maximum results it is important then, to decide on your approach to any particular site in advance of the actual search.

  • Page 15: Sweeping Technique

    It is also important to keep the detector head as close to the ground as possible. Ideally, you should 'iron' the ground with the search head of the detector, so that you do not lose any detection range. Similarly, if you work slowly and carefully you should be able to distinguish the faint signals as well as the clear-cut signals and further increase your finds.

  • Page 16: Code Of Conduct

    CODE OF CONDUCT 1. Do not trespass. Ask permission before venturing on to any private land. 2. Respect the Country Code. Do not leave gates open when crossing fields, and do not damage crops or frighten animals. 3. Do not leave a mess. It is simple to extract a coin or other small objects buried a few inches under the ground without digging a great hole.

  • Page 17: Troubleshooting

    (c) Radio interference (see above). Further Information If you experience any difficulty in operating your CS8SST, or have any questions on the information in your CS8SST Operating Instructions Manual, please do not hesitate to phone our Customer Service Department on (01233) 629181.
  • Page 18 Kingsnorth Technology Park, Wotton Road, Ashford, Kent TN23 6LN Telephone: (01233) 629181 Fax: (01233) 645897 Issue 1 (10/97)
