Icom ID-RP2000V Service Manual page 7

Digital voice repeater
Hide thumbs Also See for ID-RP2000V:

Advertisement

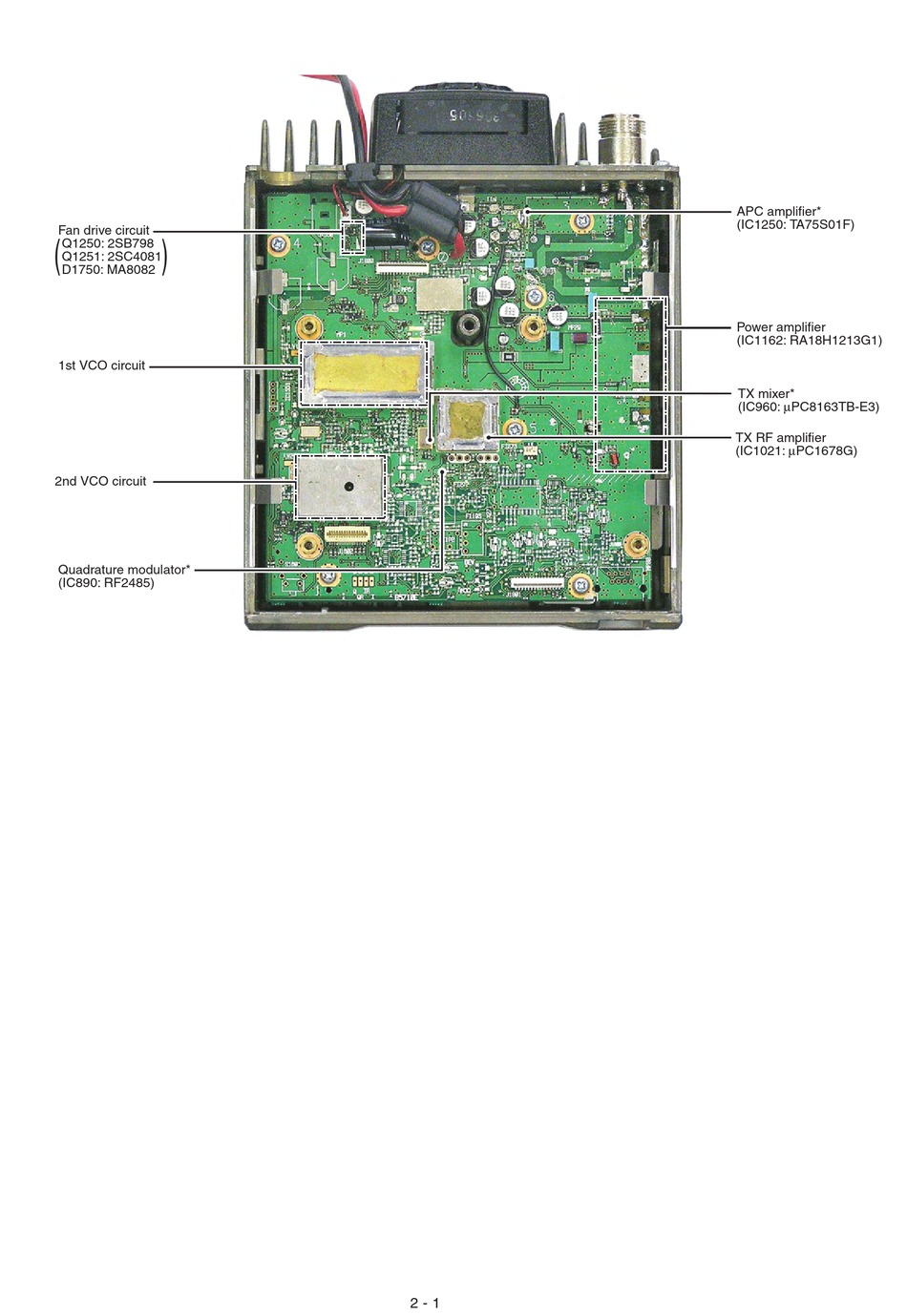

Fan drive circuit
Fan drive circuit
Fan drive circuit
Q1250: 2SB798
Q1251: 2SC4081
D1750: MA8082
1st VCO circuit
2nd VCO circuit
Quadrature modulator*
(IC890: RF2485)
2 - 1
APC amplifier*
(IC1250: TA75S01F)
Power amplifier
Power switch circuit
Power switch circuit
(IC1162: RA18H1213G1)
TX mixer*
(IC960: µPC8163TB-E3)
TX RF amplifier
(IC1021: µPC1678G)
