HDMI to 3G/HD/SD-SDI CONVERTER
AT-HD-3GSDI
User Manual
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HD-3GSDI and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-HD-3GSDI

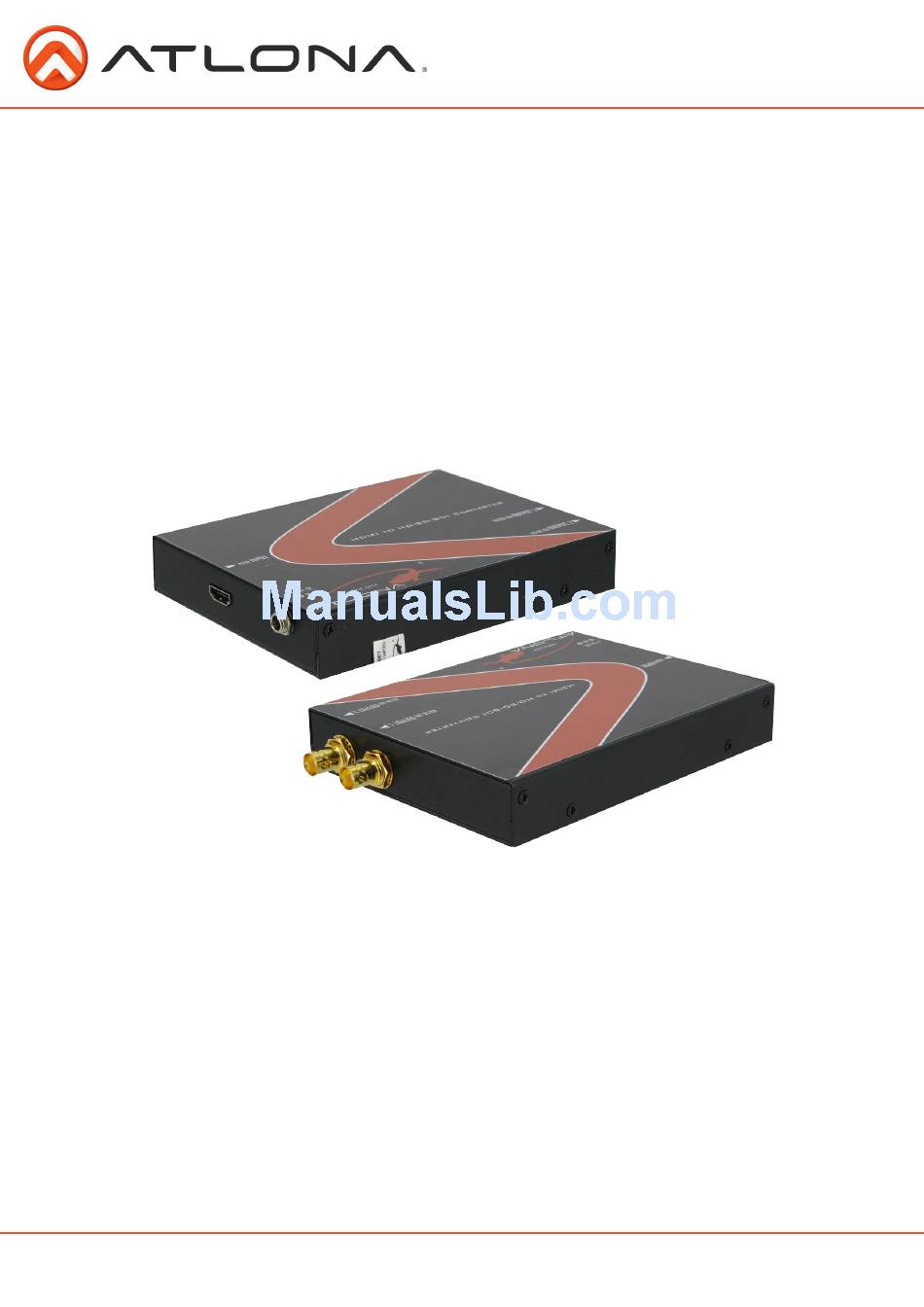

  • Page 1 HDMI to 3G/HD/SD-SDI CONVERTER AT-HD-3GSDI User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    3. Package Contents 4. Specifications 5. Supported Resolutions 6. Panel Description 6.1. Front Panel 6.2. Rear Panel 7. Dip Switch 8. Notice 9. EDID Learning 10. Safety Information 11. Warranty 12. Atlona Product Registration Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The AT-HD-3GSDI also provides 2 low jitter SDI outputs for daisy chain or multiple monitors. With the use of AT-HD-3GSDI, the most popular uncompressed video interface in the consumer world is readily available for professional SDI...
  • Page 4: Specifications

    420g [15oz] Package 1030g [2.3 lbs] Fixedness Inter-locked power supply Power supply 5V 4A DC Power consumption 3 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 5: Supported Resolutions

    SDI display 1 2. Lock LED: showing if the audio/video signal existed or not 3. 3G/HD/SD-SDI output #2: Plug in a co- axial cable to be linked to the SDI display 2 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 6: Dip Switch

    NOTICE 1. Factory default for 4-pin DIP: ON-ON-ON-ON 2. AT-HD-3GSDI mainly embeds the audio channels in audio group 1&2 or 3&4. Please adjust DIP switch pin 3 for setup. 3. While stereo audio is chosen, only the first pair of HDMI audio will placed into CH 1 & 2 of Group 1 or 3, dependent upon pin 3.
  • Page 7: Safety Information

    It may also cause damage to your AT-HD- 3GSDI. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly.
  • Page 8: Warranty

    Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 9: Atlona Product Registration

    Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
