1. OPERATION
1.4

Display Modes and Screen Indications

The FE-800 has 3 main display modes: NAV, HISTORY, OS DATA.
The display modes are set in a cycle pattern, and each press of the DISP key changes the
selected mode, in the sequence shown below.
Note 1: OS DATA mode requires external EPFS data (EG:GPS). If [Time Adjust] in the [Service]
menu is set to [Internal] when initial settings are made, the OS DATA screen is
unavailable. To change the [Time Adjust] settings, consult a FURUNO technician.
Note 2: The main display shows output from both transducers if two are connected. If only one is
connected, the display shows only the output from the connected transducer. The menu display may
change slightly for single transducer configurations.
For brevity, this manual uses a two transducer output display for all explanations.

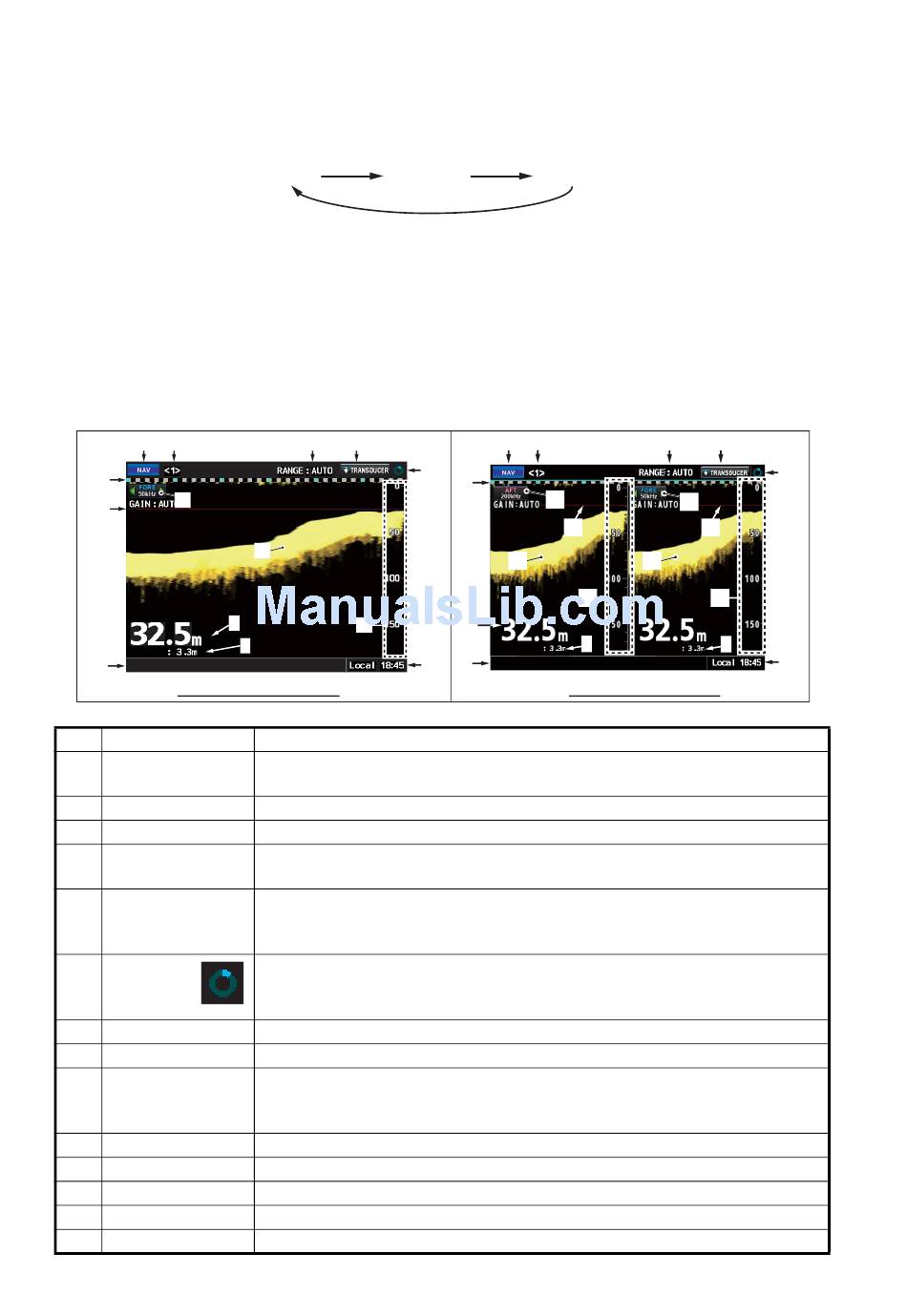

An example of the difference between single and dual frequency displays and their respective marks
and indications is shown below.
2
1
5
10
13
DRAUGHT
MENU
9 Display the Main Menu.
ESC
Single frequency display
No. Name
1 Mode indicator
2 Transceiver no.
3 Range setting
4 Reading indicator Shows the currently selected reference point for depth readings.
5 Time scale
6 System
status
indicator
7 Depth
8 Draught setting
9 Alarm message
or
menu description
10 Transducer
11 Sounding echo
12 Range indicator
13 Depth Alarm line
14 Time
NAV
HISTORY
3 4
11
7
12
8
Shows current display mode
(NAV, NAV + HISTORY or NAV + OS DATA).
Shows the currently selected transceiver.
Shows the currently selected range setting.
(TRANSDUCER, KEEL OR SURFACE.)
Shows the time scale for displayed readings. One square is equal to 1
minute of readings. The distance from one blue square to the next is equal
to ten minutes of readings.
Shows unit is functioning normally. Stops moving when unit is
malfunctioning.
Shows current depth and selected depth unit.
Shows the draught setting for respective transducer.
Shows active alarms or a brief description of the selected menu item.
Note: Alarm messages take priority over menu descriptions.
Shows the location of the transducer and output signal.
Shows the reflected echo.
Shows depth range. Changes with range scale.
Indicates the depth setting for the depth alarm.
Indicates time and time setting (UTC, Local, etc.)
OS DATA
1 2
6
5
10
13
11
12
7
8
DRAUGHT
9
MENU
Display the Main Menu.
14
ESC
Dual frequency display
Description
4
3 4
6
10
13
11
12
8
DRAUGHT
14
