Summary of Contents for Barco RLS W12

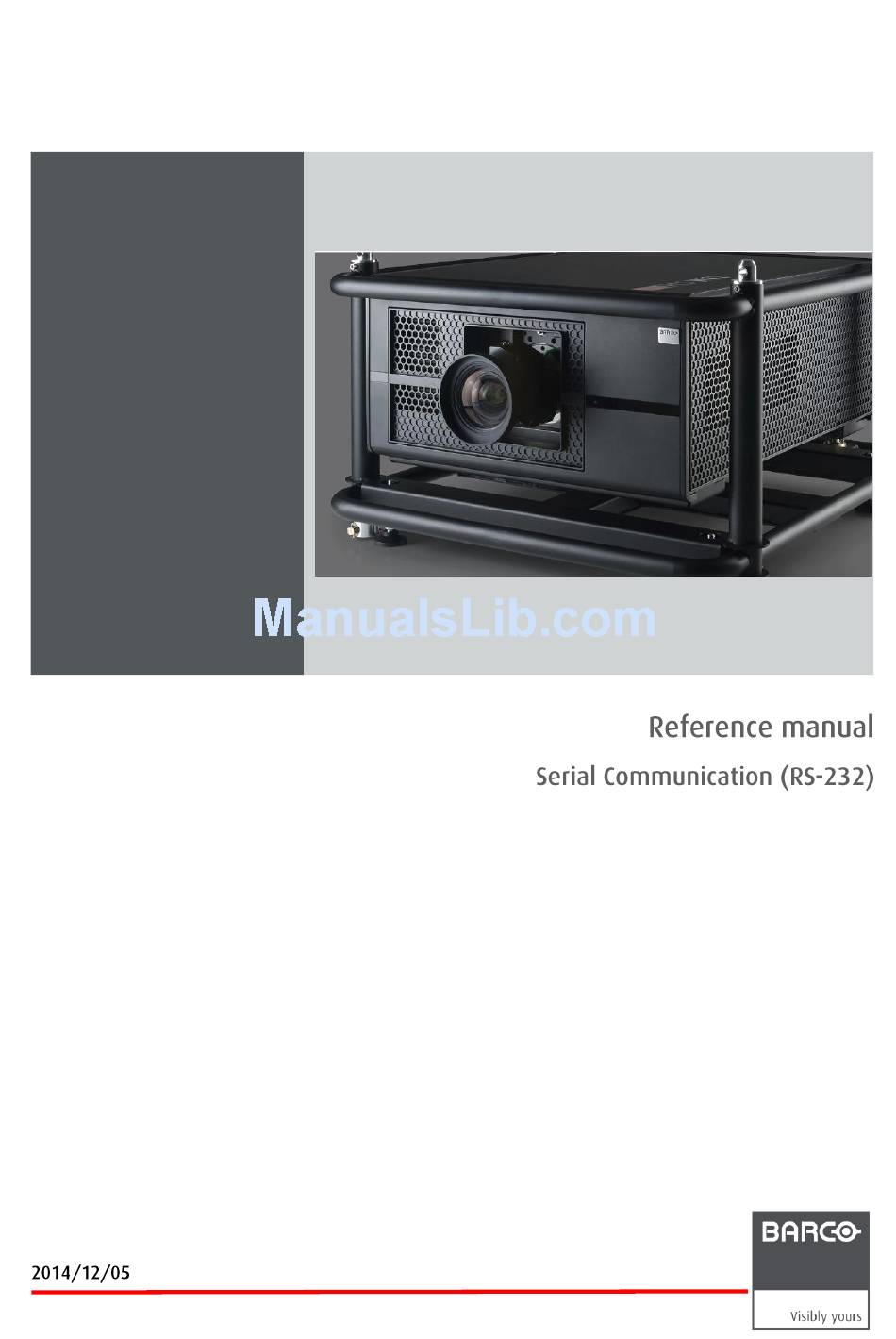

  • Page 1 RLS W12 MSWU-81E...
  • Page 2 Document version: 00 Barco NV Projection Division Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/esupport Visit us at the web: www.barco.com...
  • Page 3 1. MSWU-81E Serial Communication 1. RLS W12 SERIAL COMMUNICATION About this chapter This chapter contains serial commands to control the projector. Overview  Interface and Requirements  Cable Type and Pin definition  System Operation commands MSWU-81E – 2014/10/30...
  • Page 4 1. MSWU-81E Serial Communication 1.1 Interface and Requirements Control Command Protocol The RS-232 Commands use only ASCII characters which can be entered using a typical terminal emulator like Windows HyperTerminal with the following setting:  Bits per second: 115200  Data bits: 8 ...

  • Page 5: System Operation Commands

    1. MSWU-81E Serial Communication 1.3 System Operation commands Introduction The Operation commands tell the projector what to do. All commands start with 2 letters: “op” for operations commands and a space [SP] then following a control command then finally the value wants to read, set, increase or decrease.
  • Page 6 1. MSWU-81E Serial Communication 1.4 List of valid operations commands for Barco MSWU-81E RLS W12 Operations Commands Values Operation Commands Notes 0 = HDMI 1 = HD BaseT 2 = RGB D-15 3 = YUV 1 4 = RGBHV/YUV2 5 = Reserve (CVBS)
  • Page 7 1. MSWU-81E Serial Communication 0-200 Note2 h.total = ? + - Note7 0-200 h.pos = ? + - Note2 0-200 Note2 h.phase = ? + - Note7 0-200 v.pos = ? + - Note2 auto.img (execute) Note2 0 = Bright 1 = Presentation 2 = Video picture.mode...
  • Page 8 1. MSWU-81E Serial Communication + = Right - = Left horiz.offset Note1 0 = Off 1 = On dyna.cont Note2 0 = 1.8 1 = 2.0 2 = 2.2 3 = 2.35 4 = 2.5 5 = S-Curve (H8 only) gamma Note2 0 = Off...
  • Page 9 1. MSWU-81E Serial Communication blank.rst (execute) 0 = Off scen.stat 1 = On scen.wht.top scen.wht.btm = ? + - 0 ~ 500 scen.wht.left scen.wht.right = ? + - 0 ~ 800 scen.blk.top scen.blk.btm = ? + - 0 ~ 32 scen.blk.left scen.blk.right = ? + -...
  • Page 10 1. MSWU-81E Serial Communication 0 = 5:4 1 = 4:3 2 = 16:10 3 = 16:9 4 = 1.88 5 = 2.35 6 = Letterbox 7 = Native 8 = Unscaled 9 = Auto trig.1 Note1 0 = 5:4 1 = 4:3 2 = 16:10 3 = 16:9 4 = 1.88...
  • Page 11 1. MSWU-81E Serial Communication 108 v.refresh Note2 109 lamp1.hours 110 lamp2.hours 111 lamp1.reset (execute) 112 lamp2.reset (execute) 113 proj.runtime 0 = Off 1 = On blue.only Note1 115 fact.reset (execute) 000 ~ 999 116 CS_cust_Rx Note1 000 ~ 999 117 CS_cust_Ry Note1 000 ~ 999 118 CS_cust_Gx...
  • Page 12 1. MSWU-81E Serial Communication Note7: Only applicable when source is one of RGB D-15, YUV1 and RGBHV/YUV2. Note8: Not applicable when color space is set to custom. Note9: pip.sel can NOT be set to 0. Note10: Not applicable when pip is off. Note11: Not applicable when lamp is cooling.
