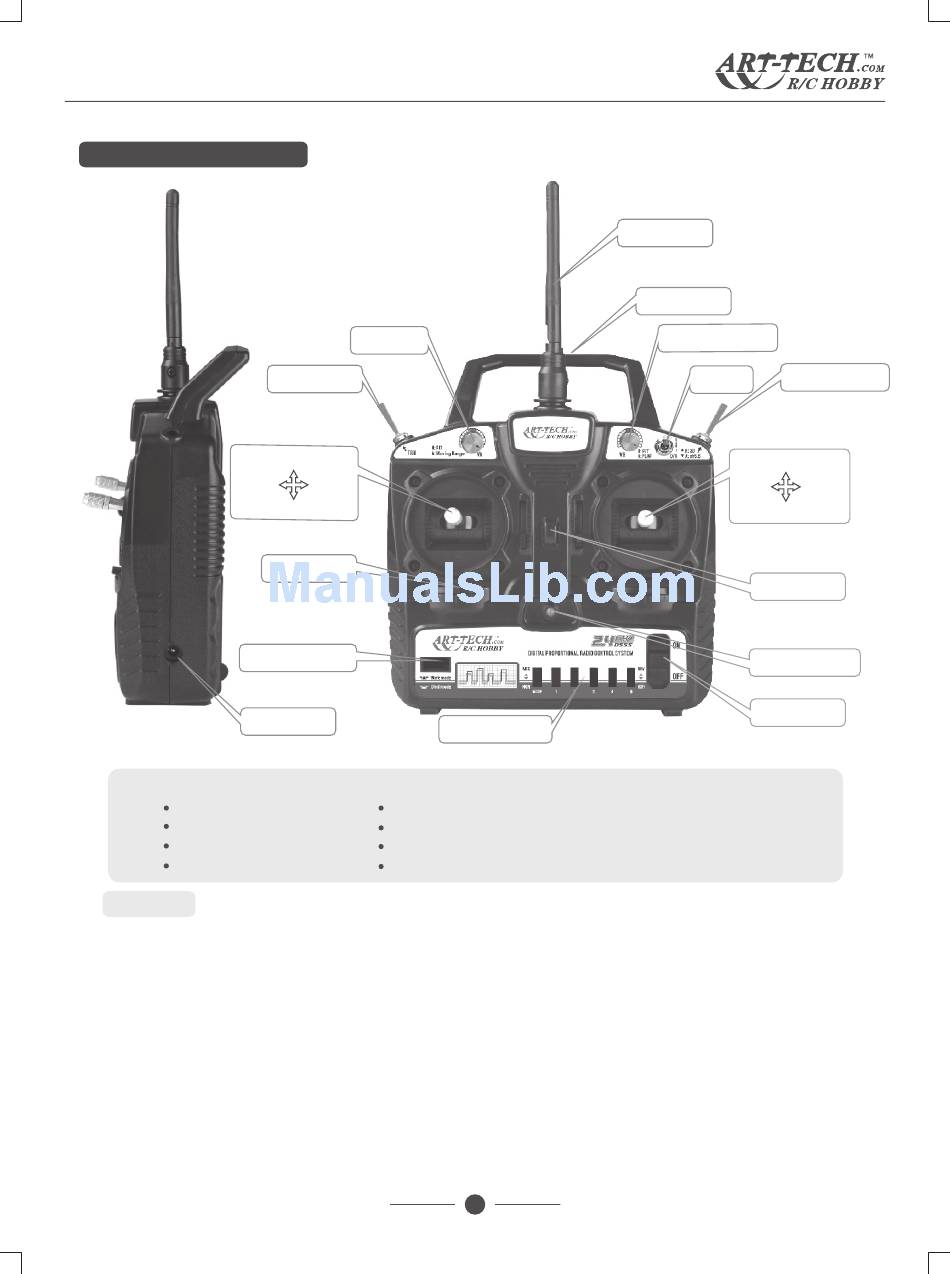

Functions for control set

ModeⅠ
Rudder
left
Specifications:
Model No.:
Number of channels: 6
Working current: ≤2 0 0 mA
Working frequency:: 2 .4 G H z
Notice
1.When turn on the power of the transmitter, the throttle should be in the lowest position. The power of the transmitter should be
turn on first, and then turn on the receiver.
2.The transmitter can not work properly if the frequency bind button is pressed down neglectfully. In this case, The transmitter
and the receiver must be bind again. More details , please refer to the process of frequency bind for 2.4GHz R/C system for
reference.
3.Please do not turn on several RC devices and bind them at the same time, bind only one set of RC device at
one time. The RC device should not be stay in bind state for a long time.
4.You will need 8 AA batteries for operating the transmitter.
5.Servo reversing switches
If the direction of servo operation is not the same as the model, adjust the reversing switches to reverse the direction.
The lower position is the normal setting and the
upper position is the reverse setting.
Channel display
AIL.: Aileron (Ch1) ELE.: Elevator (Ch2)
Dual Rate(D/R)
Trim Switch
Trainer switch
Elevator down
Rudder
right
Elevator up
Trim
Frequency Binding Switch
Charger port
EF L Y - 6BⅡ Work voltage: 12V 5#(AAA)dry batteries,or 9.6V Ni-mh battery
Air R/C distance: 400m
Land R/C distance: 200m
Certification:FCC, CE
THR.: Throttle (Ch3)
Servo reverse switch
RUD.: Rudder (Ch4)
6
Antenna
Handle
sweepback
adjustment trim switch
Dual Rate main wing(D/R)
sweepback adjustment switch
(D/R) Switch
Throttle Max
Left Right
Aileron Aileron
Up Up
Throttle Min
Hook
Power indicator
Power switch
REV.: Reverse NOR.: Normal
