Page 1: Instruction Manual
Instruction manual www.art-tech.com... -
Page 2: Table Of Contents
Menu ★Product introduction ★Main specification ★Safety precautions! ★Charge Mode and Warning ★Safety Instruction of Li-Po Battery ★Assembling steps for P-51D ★Transmitter Features ★Binding process for DSSS 2.4 GHZ R/C system ★ Operating Manual for the radio control system ★ Center of Gravity Check ★Trouble shooting ★Spare parts list ★... -
Page 3: Product Introduction

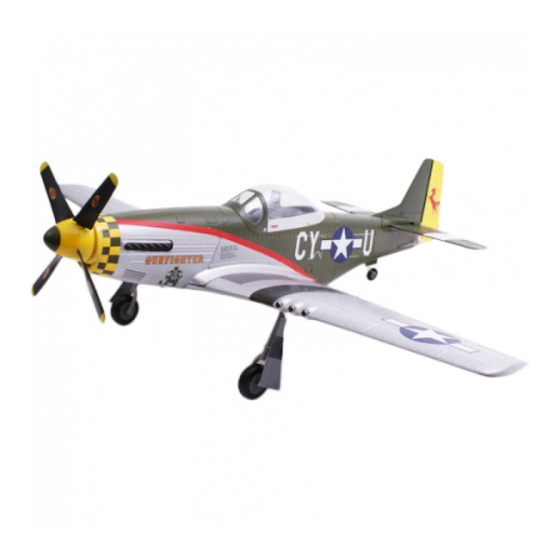

Product introduction Thank you for purchasing “P-51D Gunfighter” Radio Controlled Model Airplane. This model uses EPO style foam, which makes the model incredibly strong and durable even in a crash. It is easy to control, with excellent flight performance in high-speed, superior flight stability. -
Page 4: Safety Precautions
Safety precautions! 1) The model is not suitable to fly in the places listed below, in a crowd of people, around telegraph or electrical poles, around cars, near to traffic or next to a full size air field/airport. 2) Do not fly in bad weather or in high winds, the lower the wind the better the model will fly. -
Page 5: Charge Mode And Warning
Charge Mode and Warning Li-Po battery(balance changer) ATI-0910 Li-poly battery balance charger using instruction Specifications: Input voltage: DC 10V~15V Output voltage: DC 7.4V&11.1V Charge current: 0.3A~1.2A Indicator state: LED light near to the battery plug turns red: the charger have connected the power supply. LED light near to the DC port turns red: under charging LED light near to the DC port turns green: full charged LED light near to the DC port extinuishs: no charging... -
Page 6: Safety Instruction Of Li-Po Battery
Safety Instruction of Li-Po Battery 01.Do not disassemble or reconstruct the battery. 02.Do not short-circuit the battery. 03.Do not use or leave the battery nearby the fire, stove or heated place. 04.Do not immerse the battery in water or sea water, do not get it wet. 0 5 . -
Page 7: Assembling Steps For P-51D
Assembling steps for P-51 1、Install the landing gear to the main wing's groove in right direction. 2、Connect the servo wire from main wing to the first channel of receiver. 3、Fix the main wing set to the fuselage properly. www.motionrc.com... - Page 8 4、Penetrate the screw from main wing into fuselage and fix it. ￠ 4X30MM ………… 2 5、Place the horizontal into place and attach with screws. stabilizer ￠ 2X12MM ………… 2 www.motionrc.com...
- Page 9 6、Install the vertical stab in place. 7、Install and attach the tail fairings with screws. ￠ ￠ 1.7X6MM 1.7X33MM ………… 2 ………… 1 www.motionrc.com...
- Page 10 8、connect the clevis to the rudder and elevator. ￠ 1.7X16MM ………… 1 9、Place spinner hub on shaft then the propeller and then the nut. Then snap spinner in place. Make sure the transmitter batteries are charged, the transmitter is off and the throttle is at idle.
- Page 11 10、Plug well charged battery to the transmitter and close the battery bay. 11、Please put the socket into the fuselage body,then cover the battery. 12、Before using, please test function of all joysticks. While testing motor, make sure the propeller is out of reach of any person or item and then fix the plane. www.motionrc.com...
-
Page 12: Transmitter Features
Features remote control device transmitter 4 channel full-scale 2.4GHZ RC device. It adopts the technology of direct sequence spread spectrum (DSSS) t o have good anti-interference, stability and reliability. It can be used for all ordinary aeroplanes, gliders models, and so on. It has simulator signal interface. -
Page 13: Binding Process For Dsss 2.4 Ghz R/C System
The process of frequency bind for DSSS series 2.4GHz R/C system Place the transmitter and the receiver close to each other within one (1) meter. Please do not press the frequency bind switch when the Transmitter at work mode, or else your device will not work! 1. -
Page 14: Operating Manual For The Radio Control System
Valuable experience 1. If you have a simulator we recommend that you practice with it before you fly your J-3. This will be very helpful for your first flight. 2. Check and make sure all the control surfaces work normally and move towards the right direction before flying. -
Page 15: Center Of Gravity Check
Center of Gravity Check Please check the CG before heading to the flying fileld.The center of gravity for your P-51D Gunfighter should fall within the range as indicated by the arrows.For your initial 10 / inch~11 / inch flights,we suggest that you balance the model toward the front fo the wing.After you become more familiar with the airplane,you can move the CG more aft.However,under... -
Page 16: Spare Parts List
Spare parts list No:5B191 No:5B201 No:5B211 Fuselage Main wing set Tail wing set No:5B221 No:5B051 No:5B141 Small plastic set Main landing gear set Propeller No:41411 No:3A01C No:33012 Li-poly battery Brushless motor Brushless ESC(20A) (11.1V-1300mAh) (C4038-15) www.motionrc.com... -
Page 17: 中文部分
www.motionrc.com... - Page 18 深圳市艾特航模股份有限公司...
