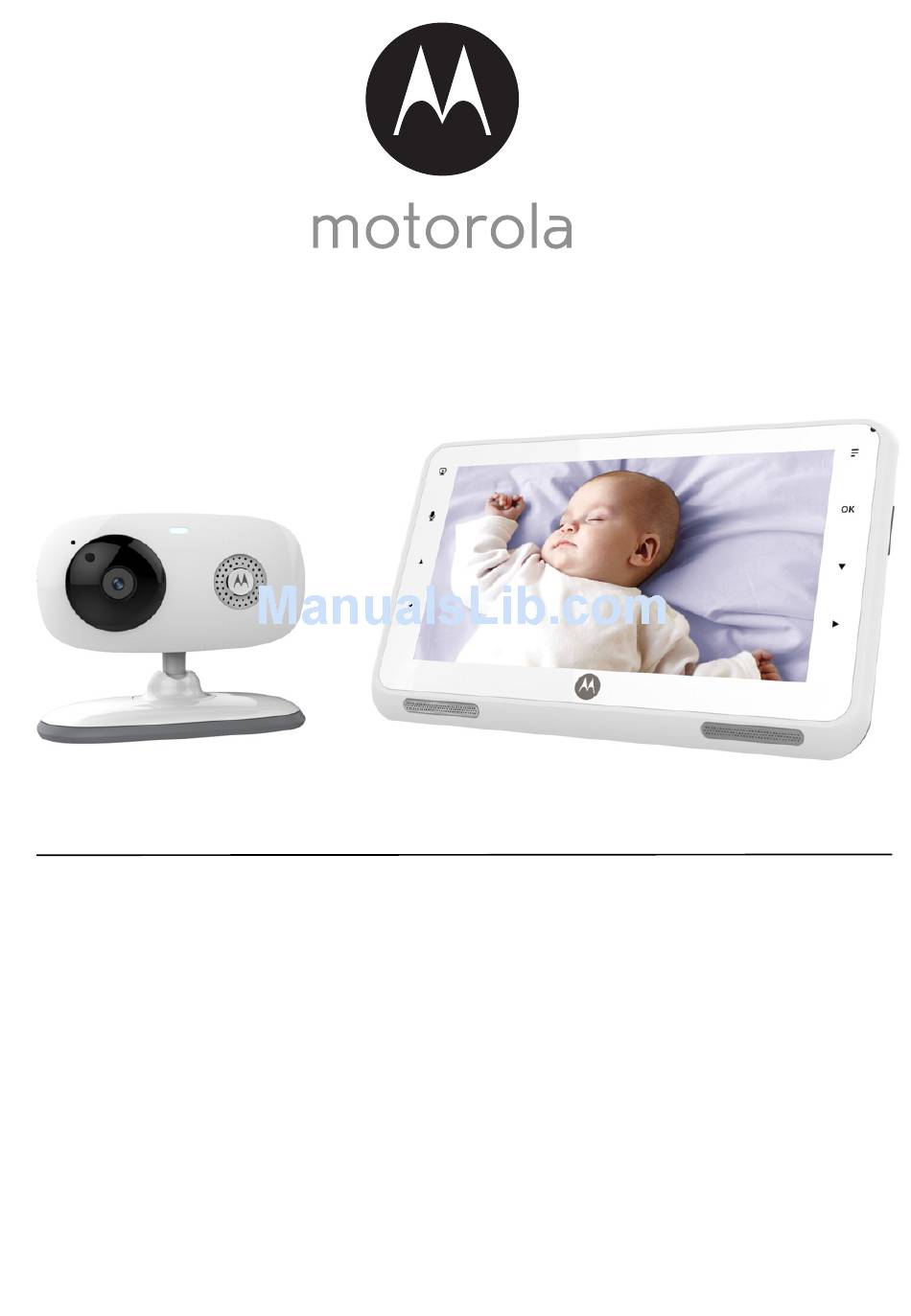

- Page 1 User’s Guide Digital Video Baby Monitor Models: MBP867, MBP867-2, MBP867-3, MBP867-4 The features described in this User’s Guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Parent Unit Display (LCD screen) Talk Key Vol + Key Press and hold to speak to your Press to adjust volume up. baby. Vol - Key Microphone Press to adjust volume down. Power Key Menu Key Press and hold to turn the Unit Press to open the menu options.
-
Page 4: Overview Baby Unit
Parent unit menu icons (cont’d) Temperature Reading (HH ºC / ºF or LL ºC / ºF) Icon & readings turn RED > 29ºC / 84ºF, and reading display HH ºC / ºF > 36ºC / 97 ºF Icon & readings turn RED < 14ºC / 57ºF, and reading display LL ºC / ºF <... -
Page 5: Table Of Contents
Table of Contents 1. Safety Instructions ..................6 2. Getting Started..................8 Baby Unit Power Supply ................8 Parent Unit Power Supply ................8 Registration (Pairing)................... 9 3. Using the Baby Monitor................10 Set Up......................10 Night Vision Mode..................10 Talk Mode ....................10 Video ON/OFF..................10 Temperature Display (HH °C / °F or LL °C / °F) ........10 4. -
Page 6: Safety Instructions
1. Safety Instructions WARNING: STRANGULATION HAZARD: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away) from the crib. Do not use with an extension cord. Only use the AC Adapters provided. Safety Instructions... - Page 7 CAMERA SET UP & USE: ● Determine a location for the Baby Unit that will provide the best view of your baby in his/her crib. ● Place the BABY UNIT on a flat surface, such as a dresser, bureau, or mount the Unit to a wall (remove or shelf) securely using the keyhole slots under the stand.
-
Page 8: Getting Started
2. Getting Started Baby Unit Power Supply 1. Connect the USB plug of the power adapter to the Baby Unit (camera) and the other end to the electrical outlet. 2. Slide the ON/OFF switch to the ON position. The power LED will light up in blue. -
Page 9: Registration (Pairing)
4. If there is no connection or you are out of range, the video display will go Off and the Unit will beep every 5 seconds. Move the Parent Unit closer to the Baby Unit until the link is re-established. 5. -
Page 10: Using The Baby Monitor
3. Using the Baby Monitor Set Up • Place the baby unit in a convenient location (ie: on a table) and point the camera lens towards the area you wish to monitor. • Adjust the Baby Unit's head angle by rotating the Camera up, down, left or right until you are satisfied with the image on the Parent Unit. -
Page 11: Parent Unit Menu Options
4. Parent Unit Menu Options Volume 1. Press the VOL UP button or VOL DOWN button to select the desired volume level, the volume will increase / decrease respectively. (The default volume level setting is 3.) Another method to change volume level is by pressing the on the front panel. -
Page 12: Camera Control
1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until is highlighted. 3. Press the UP button or DOWN button to select the alarm time. (The default setting is Alarm OFF.) Camera Control 4.6.1 Add (pair) a Camera... -
Page 13: View Multi-Cameras On The Screen
4.6.3 View Multi-Cameras on the screen 1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until icon is highlighted. 3. Press the UP button or DOWN button to select 2-split screen ON/OFF. 4.6.4 Delete a Camera 1. -
Page 14: Temperature
Temperature 1. Press the button and the menu bar will pop up. < > 2. Press the LEFT button or RIGHT button until is highlighted. 3. Press the UP button or DOWN button to select °C or °F. Power Saving Mode 1. -
Page 15: Disposal Of The Device (Environment)
5. Disposal of The Device (environment) At the end of the product lifecycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this. -
Page 16: Cleaning
6. Cleaning Clean the Baby Monitor with a slightly damp cloth or an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and Care • Do not clean any part of this product with thinners or other solvents or chemicals –- this may cause permanent damage to the product which is not covered by the warranty. -
Page 17: Help
7. Help Display No Display • Try recharging the Parent Unit. • Reset the Units. Unplug both the units' electrical power, then plug them back in. • Is the Unit ON? Press and hold the POWER ON/OFF button on the parent unit to turn it •... - Page 18 Interference Noise interference on your parent unit • Your Baby and Parent Units may be too close. Move them farther apart. • Make sure there is at least 3 to 6 feet between the Units to avoid audio feedback. • lf the Baby Unit is too far away it may be out of range, move the Units closer together.
-
Page 19: General Information
Email: support@motorolamonitors.com Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold... - Page 20 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 21 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
- Page 22 Unauthorized Service or Modification Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorized service centers, are excluded from coverage. Altered Products Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated;...
-
Page 23: Fcc And Ic Regulations
FCC and IC regulations FCC Part 15 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 24 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The socket-outlet shall be installed near the equipment and shall be easily accessible. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including...
-
Page 25: Technical Specifications
Technical Specifications Baby unit (Model: MBP867BU) Frequency 2.4 GHz to 2.48 GHz Image sensor color CMOS 1M Pixels Lens f 2.5mm, F 2.8 IR LED 7 pcs Power Adapter: Ten Pao International Ltd. S005ANU0500100; Input: 100-240V AC, 50/60HZ 200mA; Output: 5.0V DC, 1000mA S006MU0500100;... - Page 26 Adapter: Ten Pao International Ltd. S005ANU0500100; Input: 100-240V AC, 50/60HZ 200mA; Output: 5.0V DC, 1000mA S006MU0500100; Input: 100-240V AC, 50/60HZ 300mA; Output: 5.0V DC, 1000mA WARNING Use only with the provided power supply. Battery: Motorola, BF6X 3.7V, 1880mAh Lithium-Ion, rechargeable battery pack General Information...
