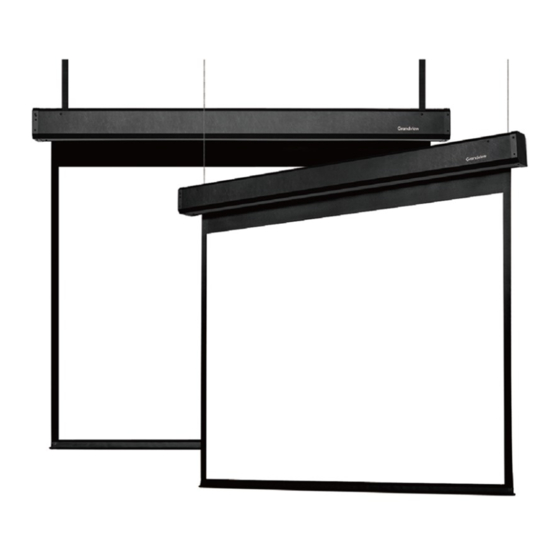

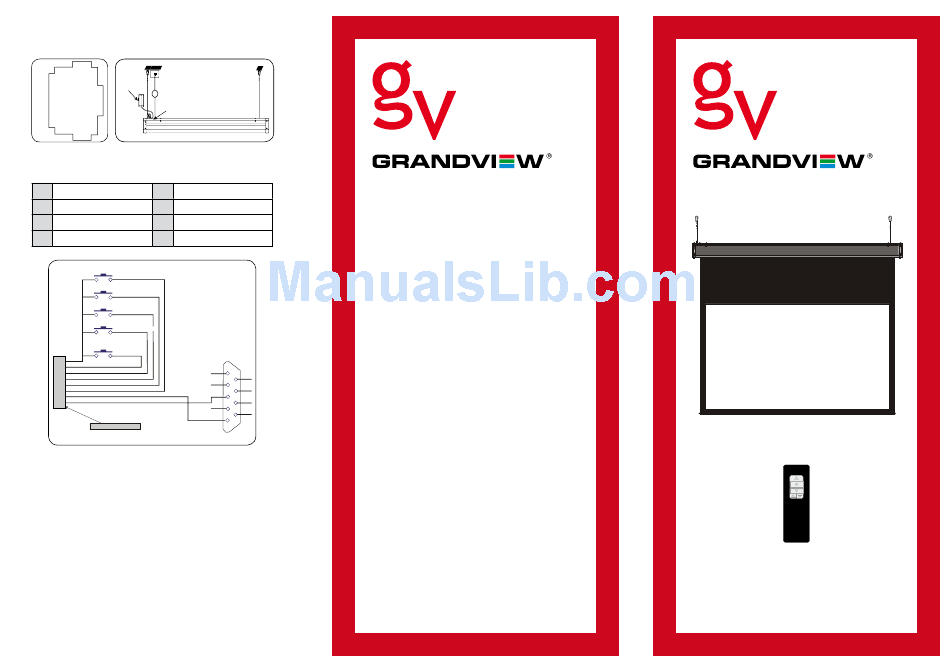

Grandview Sky-Show User Manual

RS 232/485 Input Settings / Close Contact
1
Ethernet Cable Box
2
Cable
3
Box
Retractor
4
Back View
5
Central Control Input
6
7
8
Crystal Socket
Control Emitter Function / Address
1 Common line 5 Casing Down
2 Retracting the screen 6 Stop
3 Lowering the screen 7 Rs232 Input B
4 Casing up 8 Rs232 Input A
UP
S1 SW-PB
Stop
S2 SW-PB
Casing Down
S3 SW-PB
Casing Up
S4 SW-PB
ScreenDown
S5 SW-PB
J1
Screen Up
1
2
3
4
5
6
7
8
8P8C
EXTERNAL CTRL
1. Central Control Format Agreement Communication
Agreement Setting:data bits: 8 bits, start bits: 1 bit,
stop bits: 1 bit, Baud Ratio: 2400.
2. Retracting the screen:
oxFF oxEE oxEE oxEE oxDD
3. Stopping the screen:
oxFF oxEE oxEE oxEE oxCC
4. Lowering the screen:
oxFF oxEE oxEE oxEE oxEE
5. Retracting the casing:
oxFF oxEE oxEE oxEE oxC9
6. Lowering the casing:
oxFF oxEE oxEE oxEE oxE9
7. 232 setting: 2400, n, 8,1 a continuous data sends
two times, each time interval of 200 ms.
Protecting Your Screen:
• Keep away from direct sunlight or
high temperatures.
• Examine both the front and back
surfaces before retracting into the
case to make sure it is free of dust,
dirt, insects or other foreign matter.
• Use a soft brush or cloth to lightly
remove any foreign particles.
Cleaning Your Screen:
• Do not use any solvents, chemicals
P1
or abrasive cleaners on the
1
6
screen surface.
2
7
• Use a mild detergent with warm water
3
8
4 to remove any marks on the surface or
9
5
screen case.
• Always immediately dab the screen
RS-232
with a soft cloth to avoid soap marks.
• Do not scrub the surface.
Warranty: 12 Months
Imported and Distributed in Australia by
For more information please go to
Herma Technologies
Factory 4A, 6 Albert St
Preston, VIC 3072
www.grandviewscreens.com.au
or call 1300 730 025
GV_Sky_Show_Jun11_v1.2
