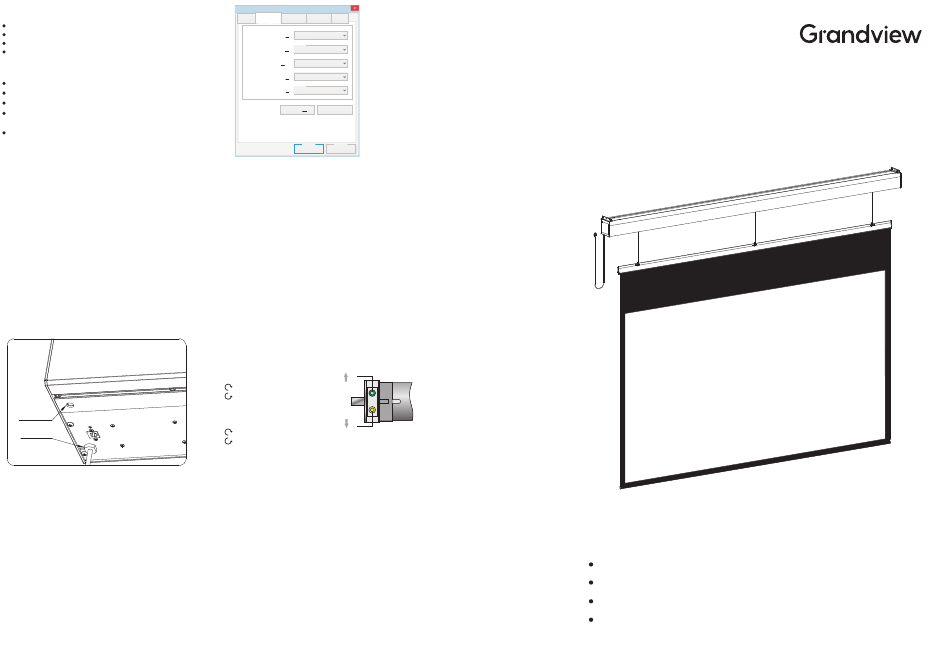

Grandview Skyshow Series User Manual

Rs485 / Rs232 port settings

Data bits : 8
Start bits : 1
Stop bits : 1
Baud rate : 2400
Hex Control Code
UP : FFEEEEEEDD
STOP : FFEEEEEECC
DOWN : FFEEEEEEEE
Some central controls need to
set the address code
FFEEEEEEAA
Learn adress code instructions
FFXXXXXXAA
(XXXXXX is a hexadecimal character other than E and 5)
Note:
When connecting to RS232 or RS485, if there is any motion that cannot be controlled by the screen,
please switch the two control wires;
Wiring loop resistance is less than 20Ω;
Do not run in parallel with strong interference sources;
230 port settings: 2400, n, 8, 1 a data string must be sent twice consecutively;

Adjusting method of screen retracted height (upper limit) and expanded height (lower limit):

If it is really necessar y to adjust the limit height due to the installation environment or site limitation, you can use the motor
positioning adjustment key to rotate the knob on the motor limiter ; the limiter adjustment knob is located in the 12 round
hole next to the power cord outlet.
Adjustment
hole
Power cable
Pay attention:
In order to ensure the accuracy and safety of the screen position, the screen must be raised and lowered after each half-
turn of the button to check whether the position has been moved correctly!
Special care should be taken when adjusting the screen recover y height. Excessive adjustment will cause the lower rod
to be caught in the casing, causing serious consequences of damaging the curtain or falling the lower rod!
Care must also be taken when adjusting the height of the screen deployment. Make sure that the length of the cable
extension is within 5 meters. Excessive adjustment will cause the cable runner to reverse and the screen cannot be recovered.
Electrical parameters: voltage AC220 ~ 230V / 50-60Hz, current 1.5A.
Wireless remote control (F): voltage 3V, using batter y CR2032X2, transmission frequency; 868MHz, effective control
distance of about 15 meters.
GRANDVIEW CRYSTAL SCREEN CO.LTD.
NO 43.S,Guomao Ave.Hualong,Panyu,Guangzhou,GuangDong.P.R.C
After sales ser vice Tel:020-84899499
USB Serial Port (COM3)
General Port Settings Driver Details Event
常规 端口设置 驱动程序 详细信息 事件
Baud Rate(B): 2400
Baud Rate: 位/秒(B): 2400
Baud Rate:
数据位(D): 8
Data Bits(D):
Data Bits: 8
无
奇偶校验(P):
Parity(P): none
Parity:
停止位(S): 1
Stop Bits(S): 1
Stop Bits:
流控制(F): 无
Flow Control(F): none
Flow Control:
高级 （ A ） ... 还原默认值(
R)
A ...
advanced（ ） Restore default(R)
确定 取消
确定 取消
Green button
Motor
Retracted height(upper limit)
Clockwise down
Counterclockwise up
Yellow button
Unfolding height (lower limit)
Clockwise Up
Counterclockwise Down

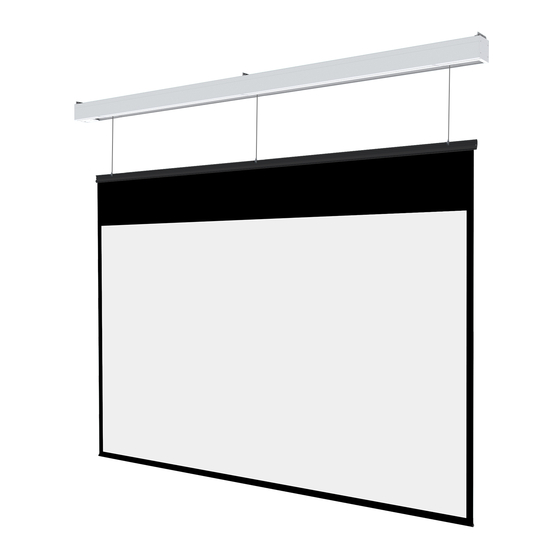

User Manual for Skyshow Series Model CIII
I n t e g r a t e d M o t o r i z e d S c r e e n S u i t a b l e f o r
M o d e l N a m e d S k- M F x x x C I I I ( x G x x )

Warm reminders

Thank you for choosing Grandview products. Please read the manual carefully before
installation and use, and keep it in your collection for future reference.
This product must be installed by a qualified professional after assessing the feasibility
of environmental, power, and structural safety.
Before you turn on the screen, make sure you have cleared all the stickers that fix the
bottom bar and the case of the screen.
It is forbidden to control the screen wire to rise and fall under the condition that the
screen wire is not taut or the screen is hanging naturally.
