Grandview Liberty Flash Series Instruction Manual

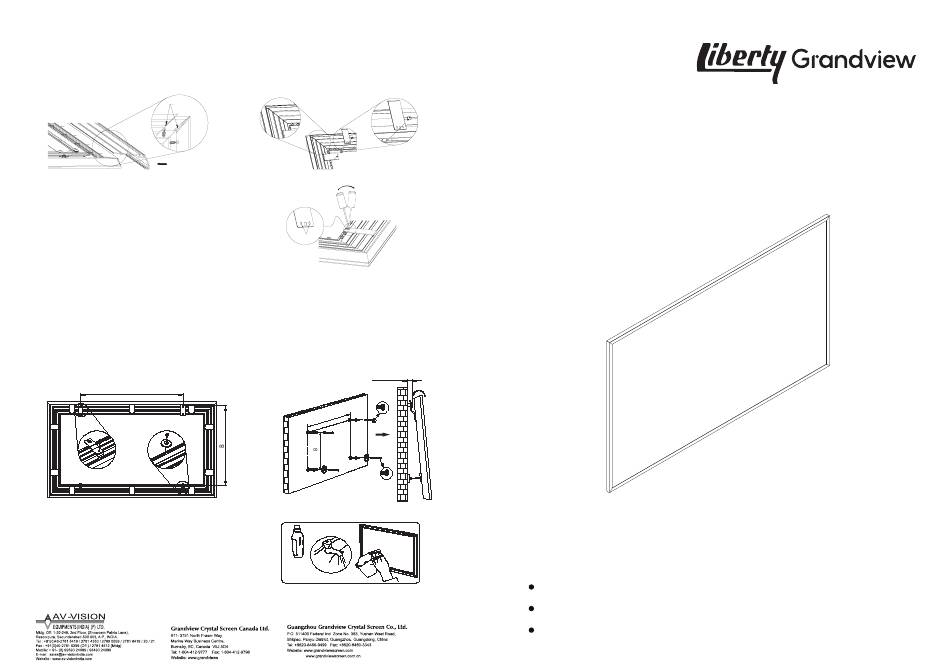

III. Bezel frame assembly
a. Lay the screen directly on the front side, take the bezel frame one by one into the corresponding inner frame; adjust the position of the
bezel frame, refer to the inner frame 45° trimming surface alignment.
b. Slide the pre-assembled sliding nut to the two ends, hook the hook end of the thin bezel frame brackets to the outermost slot of the
decorative frame, and align the long round hole at the other end with the sliding nut. Twist the M5X6mm corner screws gently.
c. Adjust the position of the four bezel frames to minimize the gap of the 45° cutting edge of the four corners, lock the screws, and
complete the screen assembly. It is recommended that the thin bezel frame brackets be installed in the first four corners and then the
middle.
III /a
Embedding
d. Note: When gap of the 45° cutting edge of the four corners is too
large and the two bezel frames cannot be pressed together tightly,
a slender steel bar can be used to extend into the pry hole and
prize the thin bezel frame brackets for tightening.
IV. Screen fixing method
a. Slide the remaining sliding nut on the inner frame above the screen so that it is symmetrically distributed at the 2/3 position of the total
length of the screen. Use the M5*8mm screws to lock the hanging plate. At the bottom frame, at the vertically same position, use the M5*
8mm magnet mounting screw is to lock the attached disc.
b. Use a suitable tool to horizontally install the concrete anchors at a suitable upper position on the wall. The horizontal spacing A is equal
to the pitch of the hanging plate. Screw in a 5x50 Phillips head screw so that the screw head surface is about 5-7 mm away from the wall. In
the corresponding lower position, the magnetic is installed vertically, and the spacing B is equal to the total height of the screen minus 117mm.
c. Need two persons cooperated to lift the screen, and the top was slightly inclined. The mounting brackets holes were aligned with the raised
Phillips head screws. After hanging firmly, slightly place the screen, and the magnetic force of the magnetic sucked the attached discs to
complete fixed of the screen. (Be sure to check if the screen is secure. If necessary, adjust the position of the attached disc to make it aligned.)
IV /a-b
A
Maintenance screen
In order to ensure that you have a good screen quality for a long time,
please use a curtain to cover the screen when you are not using it for
a long time to prevent dust and dirt from contaminating the screen.
Clean the screen
Clean the screen with warm water or a soft soapy water to clean it.
Remember that the cleaning method cannot tear the screen hard to
avoid permanent deformation. Do not use diluents, organic solvents,
or corrosive detergents.
III /c
Prize
III /d
Prize the hole
5-7mm
IV /c
A
Flash Series Fixed Thin Frame Screen
Kind Reminder
Thank you for purchasing a Grandview projection screen. Before use, please read instructions
carefully. After installation, store instructions for future reference.
Please proceed installation on flat and clean ground to provide protection for the screen fabric
and maintain the perfect frame assembling.
Please be careful about the sharp edges while installing to avoid cutting.
Instruction Manual for
Model: PF-Lxxx(S1)
