Grandview Edge R3 PE-L Series Installation & User Manual

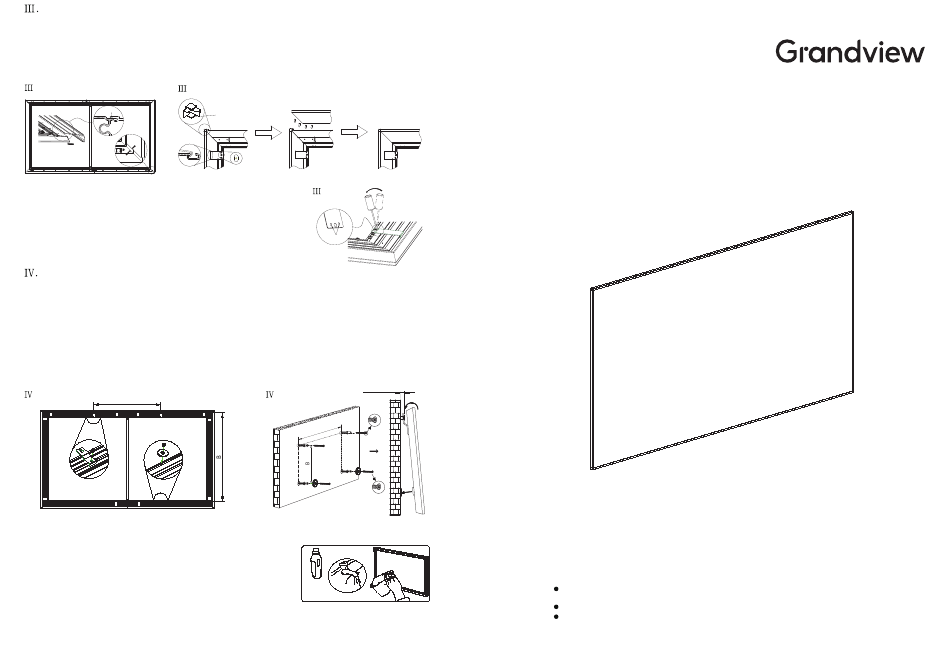

Decorative frame assembly

a. Place the screen on the ground(face down), first take two vertical decorative frames and insert them into the corresponding inner
frame; adjust the position of the decorative frame and refer to the 45° cutting edge of the inner frame; (Note: the decorative frames
must knock into the slot of inner frame)
b. Slide the pre-assembled round nut to the end of both sides, use the fasten piece to hold the decorative frames, and the hole of
the fasten piece should align with the round nut. use M5X6 screw to fasten after inserted the plastic corner on the two end of the
decorative frame; take the remaining horizontal decorative plates into the corresponding inner frame and fasten with the fasten
piece. (Note: the plastic corner has a mounting direction, and the notch is on the front of the screen, see the figure below)
/a
/b
Knock into the slot
slide in
Align
c. Adjust the position of the four decorative frames to minimize the gap between
the four corners of the 45° trimming surface, and tighten the screws to complete
the screen installation. It is recommended that the fasten piece be installed first
in the four corners and then in the middle.
d. Note: When the gap of 45° edge of the four corners is too large to press the two
decorative plates, it can use a steel bar to stuck into the hole of the fasten piece
and give more strength hold it.

Fasten screen method

a. Slide the remaining round nuts on the inner frame to position them at the 3/5 position of the total length of the screen from each end.
Use M5*8mm screw to fasten the hanging plate. Under the screen, in the vertical direction, use the M5*8mm screw to fasten the attaching chips.
b. Using a suitable tool to drill the holes, horizontally install the plastic expansion anchor at a suitable upper position. The horizontal
distance A is equal to the hole distance of the hanging plate. Screw in a 5x50 tapping screw, the screw head from the wall surface is about
5-7mm. In the corresponding lower position, the magnets is installed vertically, and the distance B is equal to the total height of the screen
minus 117 mm.
c. To lift the screen by two persons, the upper side is slightly inclined to the wall , the hanging plate hole is aligned with the Countersunk
head screw on the wall, after hanging the screen of the upper side, then put the screen lightly , and the magnets plate will attach to the attaching
chips to complete the fixing of the screen. (Please check if the screen is secure. If necessary, adjust the position of the attaching chips to make it
aligned)
/a-b
A

Screen Maintenance

In order to ensure that you have a good screen viewing quality for a long time, please
cover the screen with a curtain when you are not using it, it can prevent dust and dirt
from contaminating the fabric.

Screen Clean

Please use warm water or a soft soapy water to clean the fabric lightly. Remember
that the cleaning method can not tear the fabric forcefully to avoid permanent
deformation; it is forbidden to use Diluent, organic solvent, corrosive detergent.
GRANDVIEW CRYSTAL SCREEN CO.LTD.
NO 43.S,Guomao Ave.Hualong,Panyu,Guangzhou,GuangDong.P.R.C
After sales service Tel:020-84899499
Front of Fabric
Lever
/d
Lever
the hole
5-7mm
/c
A

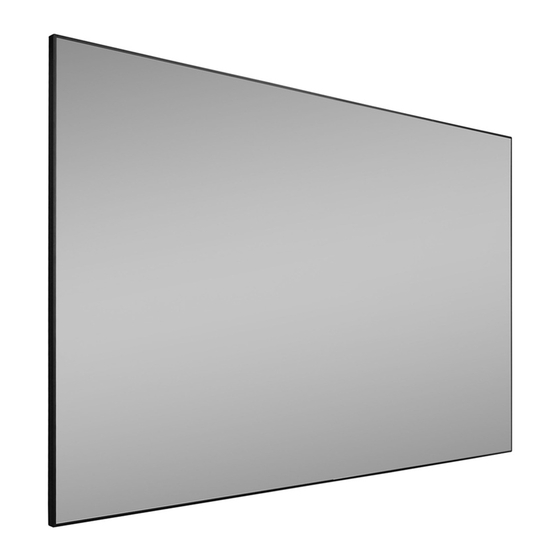

Edge R3 Fixed Frame Screen
Reminders
Thank you for purchasing Grandview products. Please read the instructions carefully before
installation , and please keep this Manual after reading for future reference.
Please assemble the screen on a clean site, it can help to protect the Fabric and the frame.
The edge of the screen frame is sharp, please protect yourself during assembly to prevent cuts.
Installation User Manual
Model：PE-Lxxx(R3)
