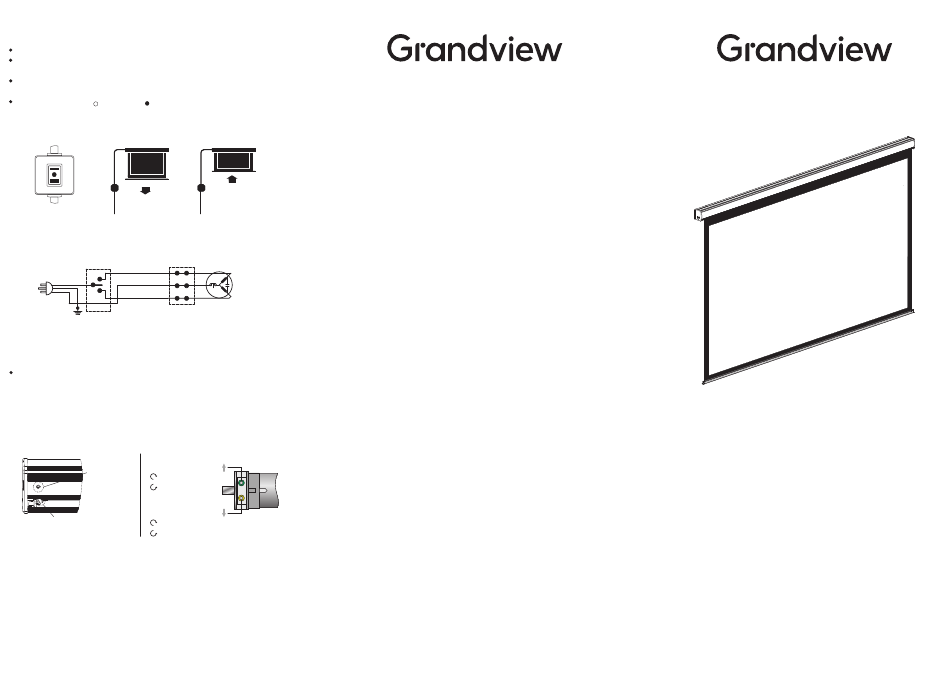

Grandview FC-M Instruction Manual

Motorized screen (M) manual control method:
Screen manual control in-line switch (Figure 1)
Extend screen (Figure 2): Press "=" switch, screen will
automatically lower down to desire limit position.
Retract screen (Figure 3): Press "-" switch, screen will
automatically retract to setting limit position.
Stop screen: Press middle "o" switch, screen will stop
immediately.
Extend screen
Figure 1 Figure 2
Motorized screen (M) circuit diagram:
Screen retract
（Black wire）
K1 Common ground
（Blue wire）
AC220~230V
Screen extend
50~60Hz,40W
（Grey wire）
Yellow Green
Screen retract height（Up limit）and extend height（down
limit）adjustment：
If have to adjust height limit for installation environment
reasons, you can adjust the limit setting by using a provided
adjustment bar insert into the adjustment hole which on the
left down area of motor. As below figure:
Note: When screen retract height over the setting limit, fabric will
automatically lower down. For this case, please press stop switch (By manual
or RF control), micro adjust on green knob in clockwise direction is fine.
Green hole
Retract limit（up limit）
Screen up and
down limit Clockwise direction：
retract less
setting area
Anti-clockwise direction：
retract more
Yellow hole
Extend height(down limi)
Screen up limit
Clockwise direction：
setting position extend less
Anti-clockwise direction：
extend more
Note:
Please operate carefully, in case of screen over retract causing
motor or screen damage.While extending more fabric, please
boarder within 10CM or it will cause fabric break
add black
and fall.
Screen electric data: Voltage AC220-230V/50-60Hz, current 0.5A,
power 100W.
RF remote (F): Voltage 3V, use CR2032*2 battery,
Ratio Frequency: 868MHz
IR remote (R): Voltage 3V, use CR2032 battery
Maintain Screen:
For long lasting enjoying the best viewing experience
of Grandview screen, please retract screen into casing
Retract screen
Figure 3
while not use. Before retracting into casing, please
check screen front and back side to ensure surface has
no obvious dust, insects or anything dirty. If there's
anything dirty, please use soft cloth clean it carefully
first.
M
Cleaning Screen:
Please use warm water mixed with mild detergent slightly
clean the dirt on screen casing or surface (Please clean
gentle instead of roughly). Then use a clean soft cloth or
towel dry it, please be noted it can't be natural air drying.
Please don't use any solvent or chemical liquid or any
frictional cleaner, or these cleaner will cause permanent
damage on fabric.
electric motor
Guangzhou Grandview Crystal Screen Co., Ltd
No.43, International Ave, Hualong Town, Panyu district,
Guangzhou, China.
Email Address:info@grandview.com
Call 86(020)84899499
nstruction Manual Of Fancy
I
Series Motorized Screen
In-line switch motorized screen &
Intelligent control motorized screen
Model:
FC-M
FC-MI
FC-MF
