1.2 Specifications

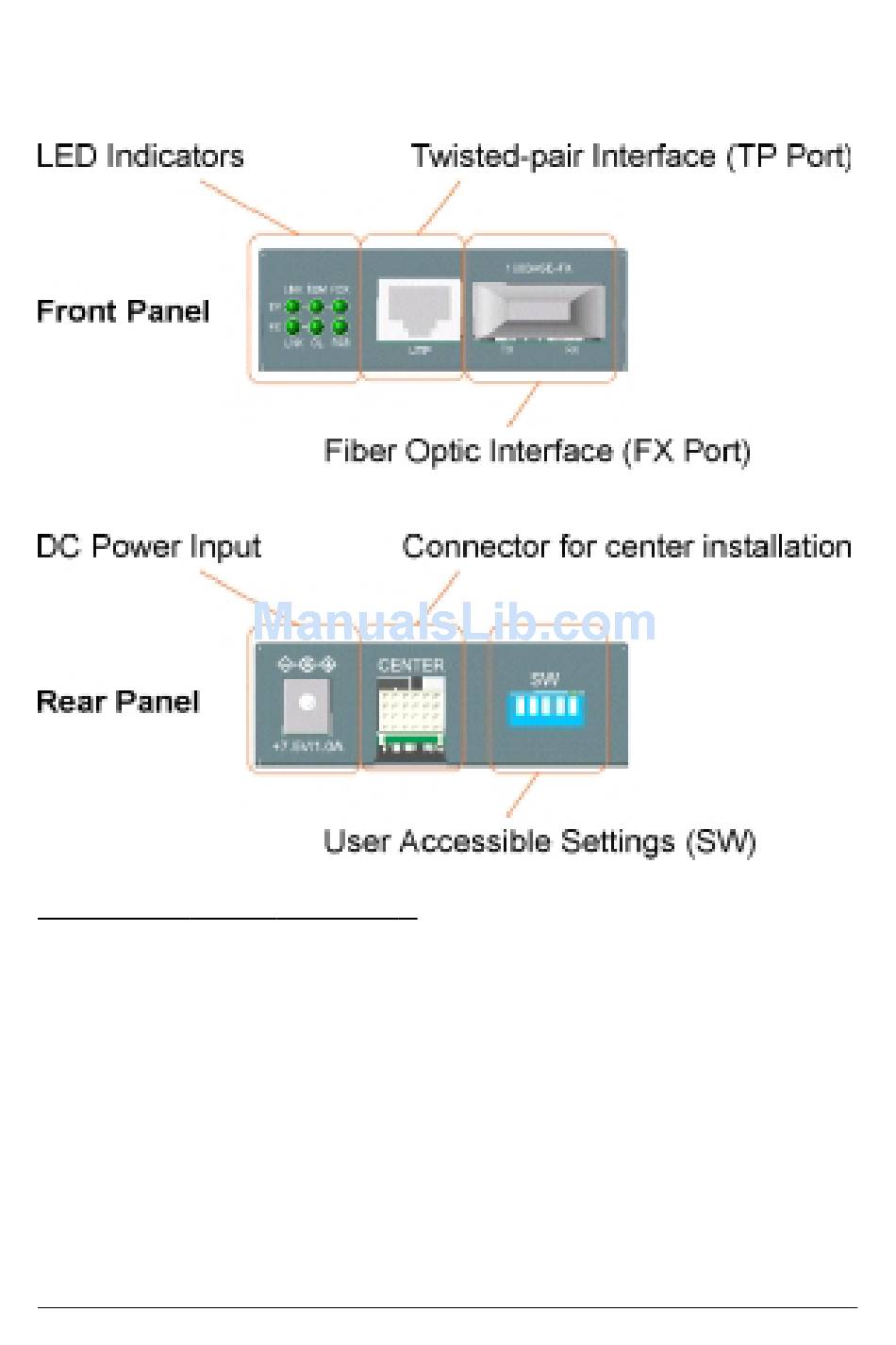

Twisted-Pair Interface (TP Port)
Connector
Pin Assignments
Signal Compliance
Data Speed
Duplex Mode
Configuration
Cable Types
Supported Link Distance
Shielded RJ-45
Auto MDI/MDI-X detection
IEEE 802.3 10BASE-T, 802.3u 100BASE-TX
10Mbps or 100Mbps
Half-duplex or Full-duplex
Auto-negotiation capable and optional
forced manual settings
10Mbps - Category 3, 4, or 5 UTP
100Mbps - Category 5 UTP
Up to 100 meters
-5-
