Installation Instructions for
FIB1-1000DS Series
Fiber Media Converter and Repeater
Description
FIB1-1000DS
The
is a fiber optical media converter and repeater that allows
data rates up to 1.25Gbps. FIB1-1000DS supports 2R regeneration, which
consists of re-amplification and re-shaping. This converter is compatible with
fiber interfaces such as Fast and Gigabit Ethernet, FDDI, STM-1, STM-4,
OC1, OC3, OC12, OC24, and 1G Fiber Channel.
Features
Compatible with FRM301 Chassis for SNMP Management
Multi-rate support from 100Mbps to 1.25Gbps
Performs optical repeater function (Re-amplification and re-shaping)
Extend Fiber Optic distance up to 2km (Multi-mode)
Extend Fiber Optic distance up to 120km (Single-mode)
Specifications
Application
Converts MM to MM, MM to SM, SM to SM, Copper to MM, Copper to SM
Fiber Optic Connectors
SFP socket with LC Connector
Environment
Temperature : 0°C – 50°C (operating)
0°C – 70°C (storage)
Humidity :
20-80% non condensing (operating)
10-90% (storage)
Dimension ( L x W x H )
122.6mm x 85.6mm x 20mm
Installation
Connect the fiber interface cable to the FIB1-1000DS. Follow the connection examples below.
Install the fiber converter with the AC adapter provided (+12VDC) and connect the adapter to an AC outlet.
Connections

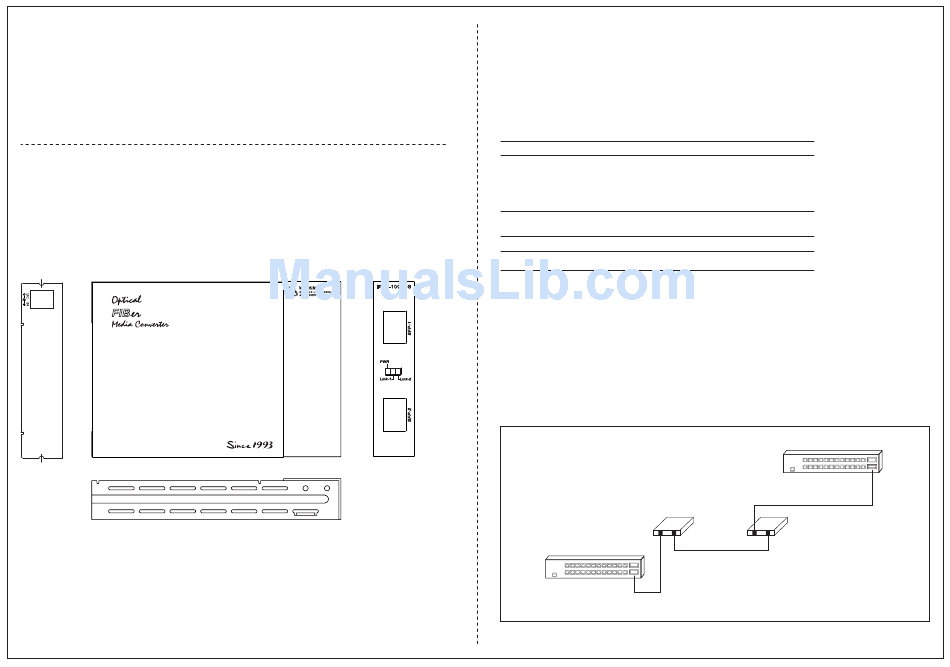

The following example illustrates the fiber connection scheme when connecting from a
1000BASE-SX port of one Gigabit Ethernet Switch port to a 1000BASE-SX port of another
switch through a pair of fiber converters and single mode fiber cable.
FIB1-1000DS
Gigabit Ethernet Switch
1000Base-SX
Single Mode Fiber Cable up to 80KM
Multi-mode Fiber
Cable up to 550M
Power
AC adaptor : +12V / 1A
Consumption : < 4W
Weight
340g (110z )
Gigabit Ethernet Switch
1000Base-SX
Multi-mode Fiber
Cable up to 550M
FIB1-1000DS
1000Base-LX
V.: 1.0
