DMX Protocol 7 Channels
Channel 1 – Built-in Programs
0-60
61-120
121-180
181-240
241-255
Channel 2 – Program Speed (when CH1 is set between 61-240
0-20
21-255
Channel 3 – strobe Speed (Dimmer of Channel 4, 5, 6 or 7 must be open
0-20
21-255
Channel 4 – Red Dimmer intensity LED Group 1
0-255
Channel 5 – Yellow Dimmer intensity LED Group 2
0-255
Channel 6 – Blue Dimmer intensity LED Group 3
0-255
Channel 7 – Green Dimmer intensity LED Group 4
0-255

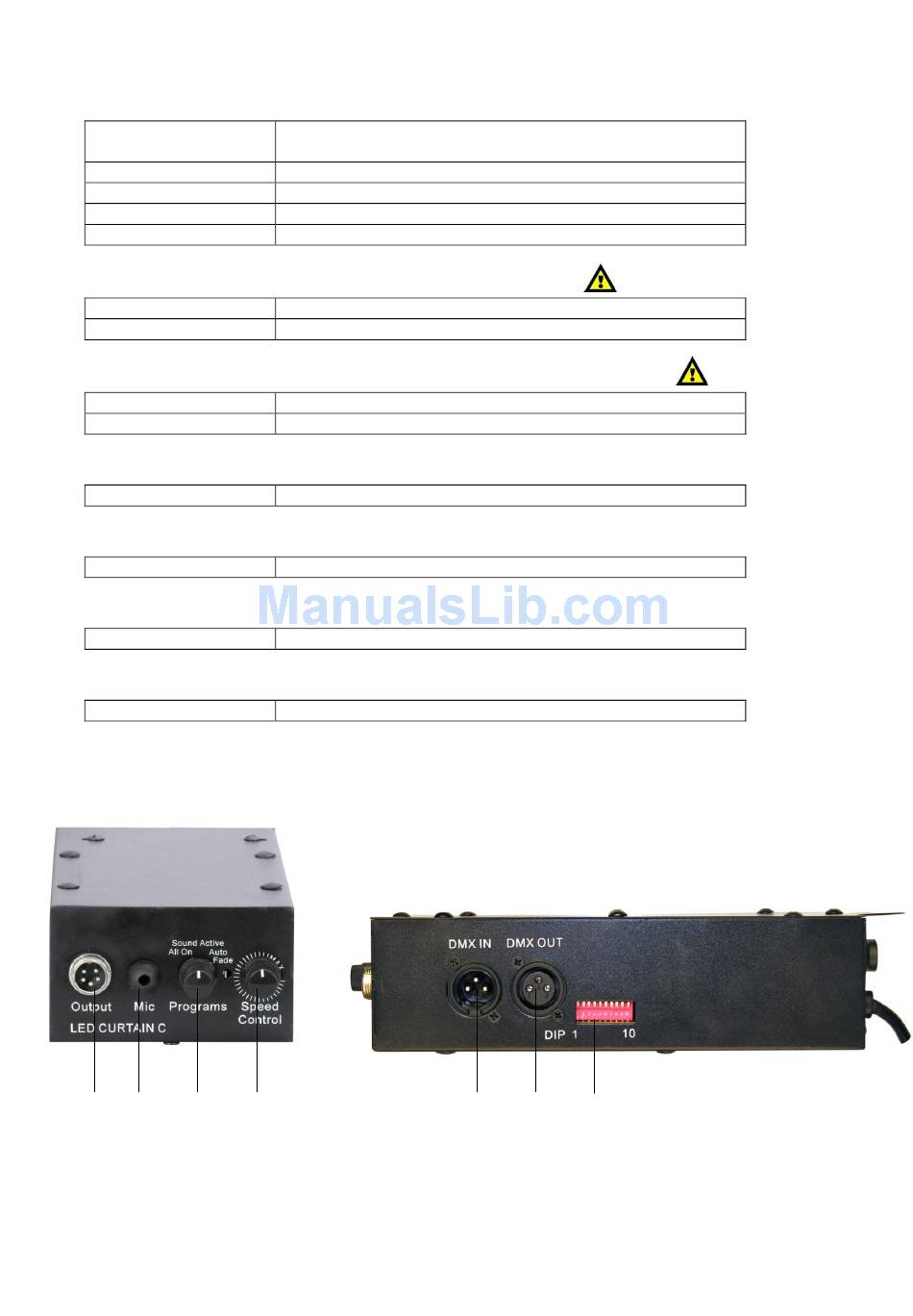

Controller

1 2 3
1) Output
2) Microphone
3) Programs: All On / Sound Active / Auto / Fade
4) Speed Control
Dimmer (only works for CH4-7.
If CH1 is 61-255 then CH4, 5, 6, 7 do not function
Flash
Auto Shift
Fade
Sound-controlled
Stop
built-in program speed from CH1
Stop
Strobe Speed of LED group 1, 2, 3 and 4
From black to brightest
From black to brightest
From black to brightest
From black to brightest
4
)
5 6 7
5) DMX IN
6) DMX OUT
7) Dip Switches
7
)
