Summary of Contents for SHOWTEC DDP-1220

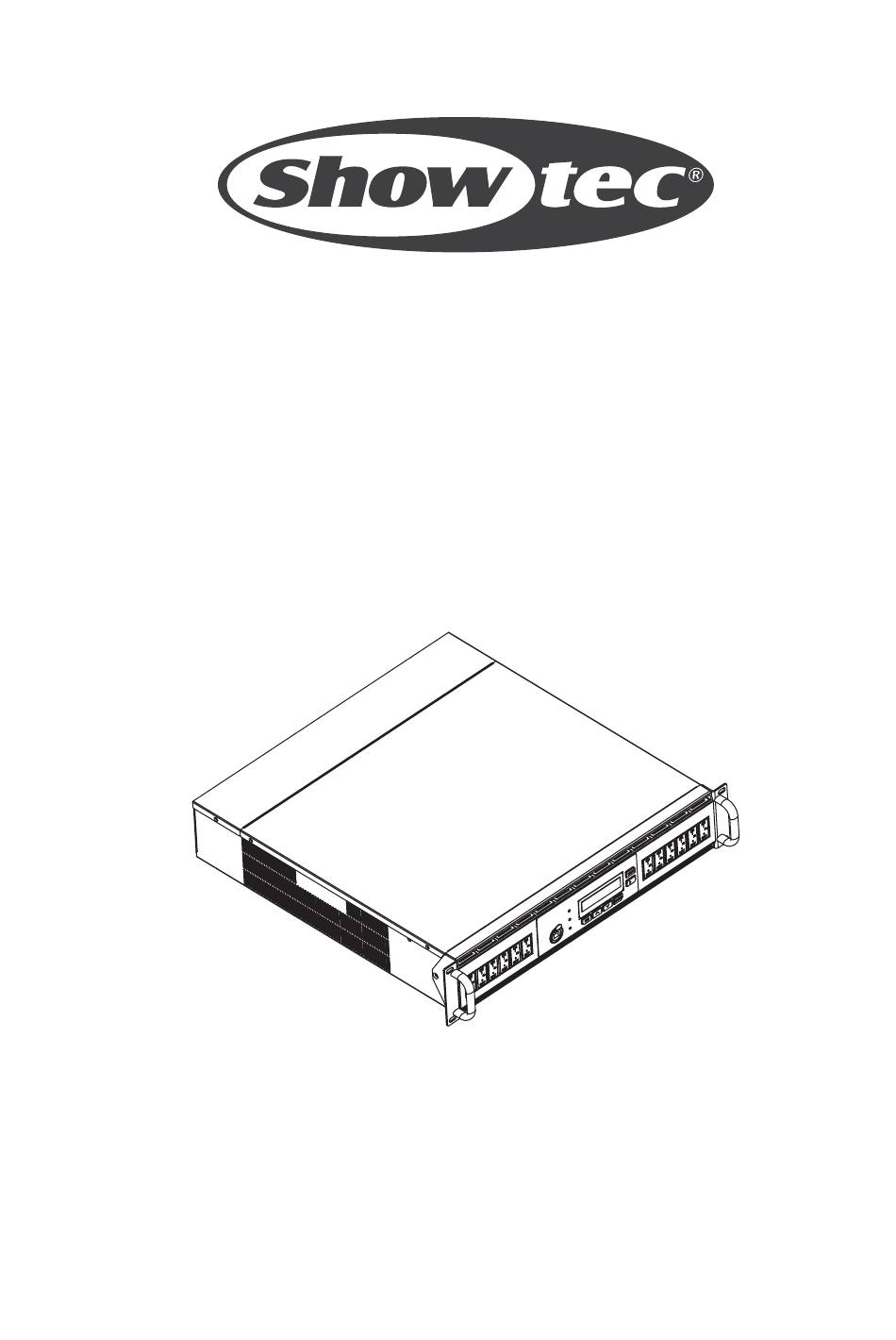

- Page 1 DDP-1220 BOM:88-024-0010-00 Rev1.0 Service Manual...
- Page 2 Physical Dimensions...
- Page 3 Complete Exploded View...
- Page 4 Complete Exploded View Parts List Item Part Number Description 23-001-4595-00 Top Cover, Rear 23-001-4591-00 Top Cover, Front 82-240-0010-00 ASSY DPX-1220-PWR AC230V 82-290-0010-00 ASSY DPX-1220-TEMP,Right 82-290-0010-01 ASSY DPX-1220-TEMP, Left 25-005-0014-00 Copper Spacer 19-001-0156-00 Heat sink,Right 20-004-0016-00 Thermostat 23-001-4598-00 Repelling Plate,Left 23-001-4597-00 Repelling Plate,Right 23-001-4593-00 Fan Holder...
- Page 5 Schematic Diagram & Parts List...
- Page 6 Schematic Diagram for DPX-1220-DMX4...
- Page 7 Materials List for DPX-1220-DMX4 (KIT:82-270-0010-00) Designator Part Number Description 16-001-0104-00 Header 2.00mm 3Pin 16-001-0209-00 XLR 3Pin NC3MAV NEUTRIK 16-001-0210-00 XLR 3Pin NC3FAAV2 NEUTRIK 16-001-0213-00 XLR 5Pin NC5MAV NEUTRIK 16-001-0214-00 XLR 5Pin NC5FAV NEUTRIK DPX-1220-DMX4 80-270-0010-00 PCB DPX-1220-DMX4...
- Page 8 Schematic Diagram for DPX-1220-DSP...
- Page 9 Materials List for DPX-1220-DSP SMD-ASSY(KIT:81-260-0010-00) Designator Part Number Description U10,U11,U13 01-006-0029-00 SMD IC HCPL-0600 (SO8) High CMR,High Speed, 01-014-0001-00 SMD IC 75176 8PIN (RoHS)<SN75176BDR(TI)> 02-007-0002-00 SMD Resistance 2.7K OHM 0805 1/8W 5% R1~R11,R59,R60,R65, 02-007-0004-00 SMD Resistance 10K OHM 1/8W 0805 5% R70~R75 R61,R62 02-007-0031-00 SMD Resistance 510 OHM 5%...
- Page 10 Schematic Diagram for DPX-1220-EC...
- Page 11 Materials List for DPX-1220-EC SMD-ASSY(KIT:81-271-0010-00) Designator Part Number Description 02-007-0057-00 SMD Resistance 220 OHM 0805 5% R38,R52 02-007-0086-00 SMD Resistance 75 OHM 1/8W 0805 5% 02-007-0239-00 SMD Resistance 1M OHM 1/4W 1% 1206 TAPE 03-009-0055-00 SMD Ceramic Capacitor 0.1uF/50V 1206 ±10% 104K DPX-1220-EC 80-271-0010-00 PCB DPX-1220-EC...
- Page 12 Schematic Diagram for DPX-1220-MAIN...
- Page 13 Materials List for DPX-1220-MAIN (KIT:82-410-0010-00) Designator Part Number Description 16-001-0048-00 Header 2.00mm 12Pin 16-001-0088-00 Header 3Pin For J7 16-001-0092-00 Header 2.54mm 2Pin J2,J11 16-001-0104-00 Header 2.00mm 3Pin J4,J5 16-001-0105-00 Header 2.00mm 4Pin J1,J3 16-001-0109-00 Header 2.00mm 8Pin 16-001-0364-00 Header 2.54mm 6pinx2 16-001-0542-00 Header 2.54mm 12Pinx2 16-001-0543-00...
- Page 14 Materials List for DPX-1220-MAIN-ASSY (KIT:81-410-0010-00) Designator Part Number Description 01-010-0035-00 SMD IC MCU AX11015LF LQFP-128 01-011-0005-00 SMD IC AT24C128N-10SI-2.7 EEPROM 128K SOIC-8 01-011-0012-00 SMD IC AT24C04N-10SI-2.7 ATMEL 8PIN 01-012-0089-00 SMD IC SN74LV02ADR SOIC14(D) 01-012-0094-00 SMD IC SN74LV138AD SOIC16(D) U2,U4 01-012-0095-00 SMD IC SN74LV574ADW SOIC20(DW) 01-014-0017-00 SMD IC MAX3232ECAE 16PIN...
- Page 15 Schematic Diagram for DPX-1220-PSU TRANSFORM TEM P.SW...
- Page 16 Materials List for DPX-1220-PSU SMD-ASSY (KIT:81-220-0010-00) Designator Part Number Description 01-004-0038-00 Regulator LM2576 S-5.0 5Pin (SMD) 01-021-0013-00 SMD Regulator LM7805S 3PIN R2,R3,R4,R11,R12,R13 02-007-0004-00 SMD Resistance 10K OHM 1/8W 0805 5% R14~R16,R29~R31 02-007-0007-00 SMD Resistance 100K OHM 1/8W 0805 5% R23~R25 02-007-0026-00 SMD Resistance 47K OHM 1/10W 5% R33,R35...
- Page 17 Materials List for DPX-1220-PSU (KIT:82-220-0010-00) Designator Part Number Description U4,U5,U6 01-006-0003-00 IC 4N35 QTC/F/Q LITE-ON DIP6 R110,R111,R112 02-001-0252-00 CF-RES 470K OHM 1W 5% R1,R2 02-001-0260-00 CF-RES 4.7 OHM 2W 5% 03-002-0011-00 Electrolytic Capacitor 100uF/16V 03-002-0014-00 Electrolytic Capacitor 470uF/16V 03-002-0026-00 Electrolytic Capacitor 470uF/25V C18,C19,C20 03-002-0042-00 Electrolytic Capacitor 4.7uF/50V...
- Page 18 Schematic Diagram for DPX-1220-PWR...
- Page 19 Materials List for DPX-1220-PWR (KIT:82-240-0010-00) Designator Part Number Description U1~U6 01-006-0018-00 IC IL420 DIP6 (RoHS)<IL420(VISHY)> R1,R2,R5,R10,R11,R12 02-001-0146-00 CF-Resistance 100 OHM 1/2W 5% (RoHS) R3,R4,R6,R13,R14,R15 02-001-0156-00 CF-Resistance 510 OHM 1/2W 5% (RoHS) R7~R9,R16~R18 02-001-0210-00 CF-Resistance 100 OHM 1W 5% C1~C4,C6,C8,C10,C11, 03-004-0027-00 MEX Capacitor 0.1uF/275VAC X2 C13,C15,C17 C14,C16,C18,C19,C20,...
- Page 20 Schematic Diagram for DPX-1220-RJ45...
- Page 21 Materials List for DPX-1220-RJ45 SMD-ASSY(KIT:81-272-0010-00) Designator Part Number Description R38,R52 02-007-0086-00 SMD Resistance 75 OHM 1/8W 0805 5% 02-007-0239-00 SMD Resistance 1M OHM 1/4W 1% 1206 TAPE 03-009-0055-00 SMD Ceramic Capacitor 0.1uF/50V 1206 ±10% DPX-1220-RJ45 80-272-0010-00 PCB DPX-1220-RJ45 Materials List for DPX-1220-RJ45 (KIT:82-272-0010-00) Designator Part Number Description...
- Page 22 Schematic Diagram for DPX-1220-TEMP...
- Page 23 Materials List for DPX-1220-TEMP SMD-ASSY (KIT:81-290-0010-00) Designator Part Number Description 01-020-0016-00 SMD IC LM75C1M5 8PIN R19,R20 02-007-0004-00 SMD Resistance 10K OHM 1/8W 0805 5% 03-009-0062-00 SMD Ceramic Capacitor 104/50V 0805 ±20% Y5V 16-005-0009-00 SMD Connector JS-1261-04 2.00mm 4PIN DPX-1220-TEMP 80-290-0010-00 PCB DPX-1220-TEMP Materials List for DPX-1220-TEMP (KIT:82-290-0010-00) Designator...
