MANUAL
ENGLISH

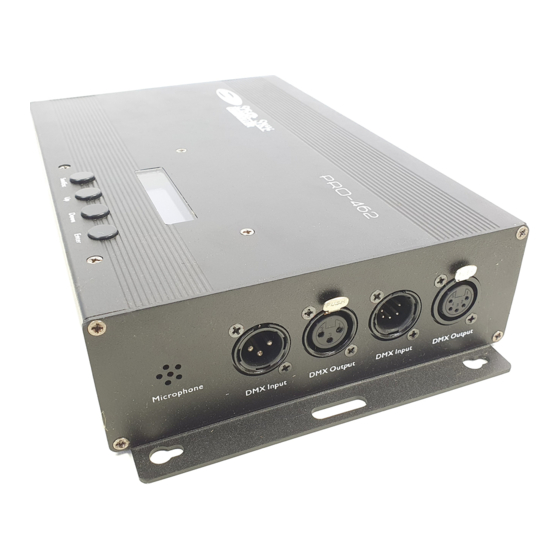

Star Sky Pro II
V1
Ordercode: 40372
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Star Sky Pro II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SHOWTEC Star Sky Pro II

  • Page 1 MANUAL ENGLISH Star Sky Pro II Ordercode: 40372 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2: Table Of Contents

    Star Sky Pro II Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................7 Return Procedure ................................8 Claims ....................................8 Description of the device ..............................9 Overview ..................................10 Controller - Frontside ..............................10...
  • Page 3 Star Sky Pro II Maintenance ..................................27 Replacing the Fuse ..............................27 Troubleshooting ................................27 No Light ..................................27 No Response to DMX..............................27 Product Specifications ..............................29 Ordercode: 40372...
  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Showtec Star Sky Pro II controller  Blue/White power cable (1,5 m) ...
  • Page 5 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 6: Operating Determinations

    Star Sky Pro II Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter.
  • Page 7 Star Sky Pro II One Star Sky Pro – Wentex Multiple Star Sky Pros – Horizontal Installation Ordercode: 40372...
  • Page 8: Connection With The Mains

    Star Sky Pro II Multiple Star Sky Pros – Vertical Installation The Star Sky can be mounted to any kind of truss with hook and loop fasteners (Velcro) and/or tie- wraps/shock cords. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug.
  • Page 9: Return Procedure

    Star Sky Pro II Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
  • Page 10: Description Of The Device

    Star Sky Pro II Description of the device Features The Star Sky Pro II is a star curtain controller.  Input voltage: 175-240V AC 60/50Hz  Power consumption: 70W  Control: Built-in programs, Manual mode, Macro mode, Sound-controlled mode, Master/Slave, DMX ...
  • Page 11: Overview

    Star Sky Pro II Overview Fig. 01 Controller - Frontside Fig. 02 01) Power switch ON/OFF 02) 5-pin XLR curtain # 1 connector OUT 03) 5-pin XLR curtain # 2 connector OUT 04) LCD display + menu buttons 05) Curtain # 2 fuse: F10AL/250V...
  • Page 12: Controller - Backside

    13) 5-pin DMX signal connector OUT Installation Remove all packing materials from the Star Sky Pro II. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.
  • Page 13: Control Modes

    Star Sky Pro II Control Modes There are 6 modes: • Built-in programs • Manual mode (RGB, Group mode) • Macro mode • Sound-controlled mode • Master/Slave • DMX-512 (7CH, 28CH) One Star Sky (Built-in programs, Manual mode and Macro mode) 01) Fasten the effect light to a firm trussing.
  • Page 14: Multiple Star Sky Devices (Dmx Control)

    Star Sky Pro II Multiple Star Sky devices (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141).
  • Page 15: Fixture Linking

    Star Sky Pro II Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
  • Page 16: Control Panel

    Star Sky Pro II The Star Sky Pro II can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display SET/ESC button C) UP button D) DOWN button ENTER button Fig.
  • Page 17: Menu Overview

    Star Sky Pro II Menu Overview Ordercode: 40372...
  • Page 18: Main Menu Options

    Star Sky Pro II Main Menu Options 1. Main Settings 01) Switch power to the device. The display will show one of the 20 following options: 02) Press the SET/ESC button to enter the settings menu. The display shows 03) Press the ENTER button to enter the device’s settings.
  • Page 19: Display Settings

    Star Sky Pro II 1.5. Display settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to choose between the 2 options: The display remains continuously ON. The display turns OFF after remaining idle for 30 seconds.
  • Page 20: Dmx Settings

    Star Sky Pro II 2. DMX settings 01) If you are in the main settings menu (see page 17), press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. The display shows 03) Press the ENTER button to open the submenu.
  • Page 21: Dimmer Menu

    Star Sky Pro II 3. Dimmer menu 01) If you are in the main settings menu (see page 17), press the UP/DOWN buttons until the display shows one of the following color presets: 02) Press the ENTER button to open the menu. The display shows 03) Press the ENTER button to open the submenu.
  • Page 22: Dimmer Mode

    Star Sky Pro II 3.4. Dimmer mode With this menu, you can set whether the device operates in RGB mode or in Group mode. 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to toggle between the 2 options: The setting adjustments will affect the whole system.
  • Page 23: Program Menu

    Star Sky Pro II 4. Program menu 01) If you are in the main settings menu (see page 17), press the UP/DOWN buttons until the display shows one of the 10 built-in programs: 02) Press the ENTER button to open the menu. The display shows 03) Press the ENTER button to open the submenu.
  • Page 24: Macro Menu

    Star Sky Pro II 5. Macro menu 01) If you are in the main settings menu (see page 17), press the UP/DOWN buttons until the display shows: 02) Press the ENTER button to open the menu. The display shows 03) Press the ENTER button to open the submenu.
  • Page 25: Dmx Channels

    Star Sky Pro II DMX Channels 7 channels Channel 1 – Dimmer intensity 1-255 Gradual adjustment dimmer, from dark to brightest 0-100% Channel 2 – Strobe Dimmer must be open Not functional 10-255 Strobe frequency, from low to high Channel 3 – Control modes...
  • Page 26: Channels

    Star Sky Pro II 28 channels Channel 1 – Dimmer intensity 1-255 Gradual adjustment dimmer, from dark to brightest 0-100% Channel 2 – Strobe Dimmer must be open Not functional 10-255 Strobe frequency, from low to high Channel 3 – Control modes...
  • Page 27 Star Sky Pro II Channel 11 – LED group 3, Red Dimmer must be open, CH3 must be set between 0-49 0-255 Gradual adjustment Red, from 0-100% Channel 12 – LED group 3, Green Dimmer must be open, CH3 must be set between 0-49...
  • Page 28: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Star Sky Pro II requires almost no maintenance. However, you should keep the controller clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.
  • Page 29 Star Sky Pro II Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
  • Page 30: Product Specifications

    Star Sky Pro II Product Specifications Model: Showtec Star Sky Pro II Input Voltage: 175-240 VAC, 60/50Hz Power consumption: DMX linking: 30pcs Main fuse: F2AL/250V Curtain fuses: F10AL/250V Dimensions: 315 x 178 x 65 mm (LxWxH) Weight: 1,9 kg Operating and Programming:...
  • Page 31 Star Sky Pro II Ordercode: 40372...
  • Page 32 ©2015 Showtec...
