Summary of Contents for SHOWTEC White Star Sky II DMX

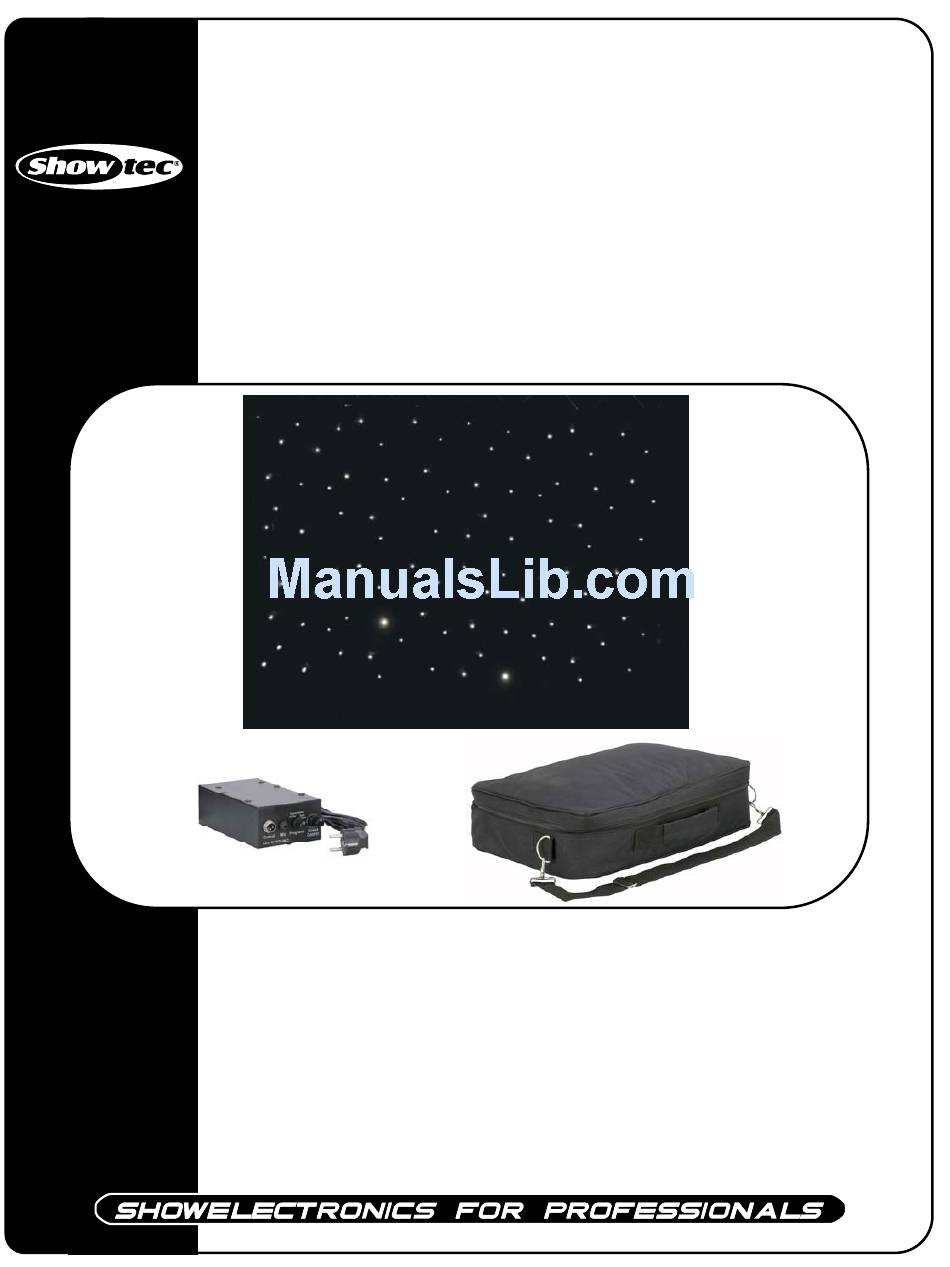

- Page 1 White Star Sky II DMX ORDERCODE 40342...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Star Sky 2 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features……………………….………………………………………………………….………………….…. Set Up and Operation..............……..……………………………….… Controller................…………………….……………………………. DMX Dip Switch Value Guide............…………………….…………..……… Maintenance...................………..………….…….……………… Replacing the Fuse................…………………….………………… Troubleshooting................………………….………………….….. No Light..........………………….…………………………………………………….. No Response to DMX ..............………………….…………………... Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: The Star Sky 2 must never be fixed swinging freely in the room. •... -
Page 7: Description
Description of the device Features The Showtec Star Sky 2 is a light effect with great effects. • Total width 6m, total length 3m. • DMX controller, carrying bag included • 4 DMX Channels (2x Speed and 2x Program for different lights) •... -
Page 8: Controller
Addresses on the controller are set by flipping the appropriate DMX dip switches. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec Star Sky, which has four channels (CH1=Speed, CH2=Speed, CH3=Program and CH4=Program) is as follow:... -
Page 9: Maintenance
Maintenance The Showtec Star Sky 2 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 10: Product Specifications
Product Specification Model: Showtec Star Sky 2 Power supply: 240V-50Hz (CE) Fuse; 2A Length: 6m. Width: 3m. Weight: 5 kg Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1m Design and product specifications are subject to change without prior notice. - Page 11 2005 Showtec.
