Challenge Titan 200 Operation Manual

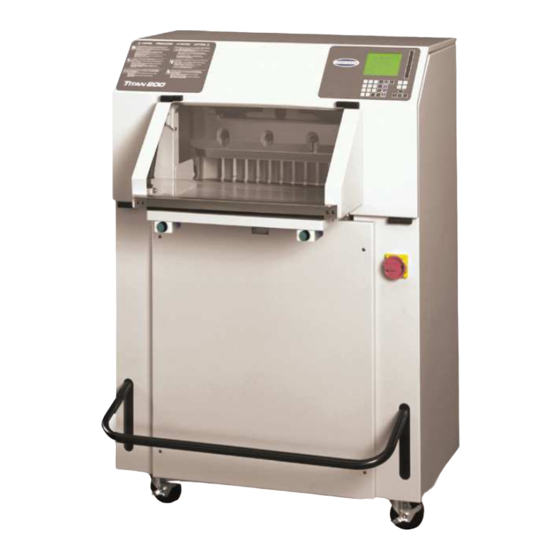

Challenge titan 200 paper cutting machine
Hide thumbs Also See for Titan 200:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual
The
Challenge
Machinery
Company
provides
owner's
manuals on its products solely as a courtesy to its customers.
See the information below before using this manual.
These manuals are for reference only. These manuals include products which are non-
current, unsupported or no longer produced by The Challenge Machinery Company, and are
provided solely as an accomodation to our customers. By providing these manuals, The
Challenge Machinery Company makes no representation or warranty as to the products,
their current condition, or their suitability or fitness for use in any particular application, which
are the sole and independent responsibility of the product owner and user.
Older products may not comply with current safety procedures, guidelines or regulations,
and it is the product owner's and user's responsibility to evaluate the suitability and fitness of
the products in their current use and application. The Challenge Machinery Company makes
no representation, warranty or recommendation regarding any modifications which may be
required on non-current or unsupported products. The Challenge Machinery Company
assumes no liability for any modification or alteration to any Challenge product, and any such
modification or alteration to any Challenge product is not authorized by The Challenge
Machinery Company. The availability of these manuals is solely for the purpose of providing
reference information for the products.
This
manual may not be
complete
in
all aspects of product
maintenance and repair. All
products should be used only by qualified and properly trained personnel, following proper
safety procedures. All products should be regularly inspected and maintained, and their condition,
application and use should be periodically evaluated by qualified personnel. Only qualified and
properly trained technicians should
perform maintenance, repair and replacement
procedures. Attempting these procedures without proper training may cause machine
damage or operator injury!
Products may be unsupported by The Challenge Machinery Company due to age or the
unavailability of parts from their original manufacturer. No parts or product support will be
available to repair or maintain unsupported products. Older products may not be UL listed (if
the product does not have a UL label it is not a listed product), and may not comply with
applicable installation or other regulations or requirements if relocated to a new facility.
Many municipalities require
a
product to be UL listed before
an electrician
will
connect power
to them. Often the cost of updating an older product to comply with current safety regulations is
greater than the value of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan 200 and is the answer not in the manual?

Questions and answers

Abakash
January 28, 2025

How do I remove Lubricate Machine message

0
1 comments:
Mr. Anderson
May 14, 2025

To remove the "Lubricate Machine" message on a Challenge Titan 200, you need to enter "Dealer Mode" and update the dealer name and phone number settings. Follow these steps:

1. Turn off the power.
2. While turning the power back on, press and hold both the left and right arrow keys.
3. Continue holding the arrow keys for a few seconds after the machine powers up.
4. Once in Dealer Mode, use the up and down arrow keys to select characters and the right arrow key to move to the next character or line.
5. Enter the desired dealer information.
6. When finished, turn off the power.

This process resets the lubrication alarm display.

This answer is automatically generated

0

Related Manuals for Challenge Titan 200

Summary of Contents for Challenge Titan 200

  • Page 1 The Challenge Machinery Company assumes no liability for any modification or alteration to any Challenge product, and any such modification or alteration to any Challenge product is not authorized by The Challenge Machinery Company.
  • Page 2 Serial Numbers 032425 & Up PERATION ANUAL TITAN 200 PAPER CUTTING MACHINE Sold and Serviced by The Challenge Machinery Company 6125 NortonCenter Drive Norton Shores, MI 49441-6081 USA ChallengeMachinery.com F.200-CO August 2003...

  • Page 3: Introduction

    DIRECTLY TO CHALLENGE. If you bought a used machine, it is important to have the following information on record at Challenge. Copy this page, fill in the information and send it care of The Challenge Service Department • 6125 Norton Center Drive •...

  • Page 4: Table Of Contents

    1.0 Introduction TABLE OF CONTENTS 1.0 Introduction ............................2 2.0 Safety ..............................5 2.1 Precautions ...........................5 2.2 Power Lockout Procedure ......................5 2.3 Warning Label Definitions......................6 3.0 Packing List............................7 4.0 Specifications ............................8 5.0 Installation & Setup ...........................9 5.1 Inspecting Shipment ........................9 5.2 Uncrating ............................9 5.3 Cleaning............................10 5.4 Fitting Through Narrow Door ......................10 5.4.1 Removing the Table ......................10...
  • Page 5 7.3.1 Knife Blade Life........................36 7.3.2 Cutting Stick ........................37 7.3.3 Bevel Angle ......................... 37 7.3.4 Helpful Suggestions ......................37 7.3.5 Knife Care ........................... 37 8.0 Oil and Grease..........................40 9.0 Titan 200 Floor Plan ........................43 10.0 Safety Systems Test........................44...

  • Page 6: Safety

    2.0 Safety 2.0 Safety 2.1 Precautions • This machine is designed for one-person operation. Never operate the machine with more than one person. • Safe use of this machine is the responsibility of the operator. Use good judgment and common sense when working with and around this machine.

  • Page 7: Warning Label Definitions

    2.0 Safety 2.3 Warning Label Definitions The following warning labels are found at various locations on your machine. Read and understand the meaning of each symbol. If a label is lost from the machine, it should be replaced. HAZARDOUS AREA Disconnect power before cleaning, servicing, or making adjustments not requiring power.

  • Page 8: Packing List

    3.0 Packing List 3.0 Packing List Part No. Description Qty. A-10034 Knife 4166 Cutting Stick (in addition to one installed in machine) F.200-CO Operator Manual A-12608-2 Jogging Aid 20-2150-2 Tool Kit H-6918-608 Knife Bolts, 3/8 – 16 x 1” 8815 Knife Washers, Special 5064 Cutting Stick Puller...

  • Page 9: Specifications

    ***With table, front guard or elec eyes, and foot treadle removed, can be fit through a 28” (71 cm) door opening. Challenge reserves the right to make changes to any product or specification without notice and without incurring responsibility to existing units.

  • Page 10: Installation & Setup

    If you don’t have the ceiling clearance to do this, carefully slit the carton down the side and then unwrap it from around the cutter. Remove all lag screws from the skid. Remove the lower front cover of the Titan 200 and remove the two lag screws in the base. Remove the accessories.

  • Page 11: Cleaning

    5.4 Fitting Through Narrow Door The Titan 200 cutter will not fit through an opening less than 36” (91 cm) without the table being removed. With the table removed, the Titan 200 will fit through a 35” (89 cm) opening. With the table, front guard, and foot treadle removed, it will fit through a 28”...
  • Page 12 5.0 Installation & Setup Encoder Plug Rear Support Figure 4 Remove the motor junction box cover and disconnect the wires to the motor (Figure 5). Remove the leadscrew cover and the nylon tyraps that are attached to the bottom of the table. The motor wires and encoder wires should now be free from the table.
  • Page 13 5.0 Installation & Setup Presetter Board Assembly Figure 6 Left Side Guide Figure 7 Cut Stick Stop Cut Stick Right Side Guide Figure 8...

  • Page 14: Removing The Foot Treadle

    (Figure 4 & Figure 5 on page 11), and all other items that were removed. Once the table is installed, the backgauge squareness and accuracy will have to be reset. See the Titan 200 Technical Service and Parts manual for information on how to do this.

  • Page 15: Installing Optional Extension Tables (Front Guard Machines Only)

    Figure 11 5.6 Hydraulic System Check The cutting/clamping mechanism of the Titan 200 is powered by a hydraulic system consisting of an electric motor coupled directly to a hydraulic pump. The hydraulic reservoir holds 4 quarts (1 gallon) of hydraulic fluid. It is filled with Rykon 100 hydraulic fluid at the factory but should be checked before operation.

  • Page 16: False Clamp Plate (Optional)

    5.0 Installation & Setup Dip Stick Figure 12 5.7 False Clamp Plate (Optional) To prevent marking on pressure sensitive jobs, a false clamp plate is available as an optional item for your machine. This plate attaches to the bottom of the clamp. It is secured with wing nuts on studs that pass through the top of the clamp.

  • Page 17: Power Hook-Up

    5.9 Line Light The Titan 200 is equipped with two lights, which provide a line of light on the paper in the approximate location of where the paper will be cut. The lights come on when power to the machine is turned on.

  • Page 18: Adjustment

    5.0 Installation & Setup Line Light Adjustment Screw Figure 15 5.9.1 Adjustment 1. Place a wide sheet of paper on the cut stick to view the line light. 2. Using a 3/16” hex allen wrench, turn one of the cap screws until you see a 1/16-1/8” beam. Note: it is best to start by turning the screw clockwise.

  • Page 19: Operation

    (if equipped). 6.2 Start Up Once power has been turned on, the Titan 200 will show the following display: 55.000 Backgauge must move to be preset.

  • Page 20: Making A Cut (Machines With Electric Eyes)

    Always remove the jogging aid from the table before making a cut. A jogging aid is included as standard equipment with the Titan 200. This tool allows the operator to load and align paper without the need to place hands or arms under the knife or clamp.

  • Page 21: Knife Change Alarm And Lubrication Alarm

    6.6 Knife Change Alarm and Lubrication Alarm The Titan 200 has two built in alarms that will be displayed after a certain number of cuts. The knife alarm displays a message that notifies the operator to change the knife. The lube alarm displays a message that notifies the operator to have the machine lubricated.

  • Page 22: Display Panel

    6.0 Operation 6.8 Display Panel Figure 19 6.9 Definition of Keys 6.9.1 Variable Speed Pinpoint Backgauge Control The backgauge control is used to manually position the backgauge. The speed of the backgauge will depend upon where the actuator is pressed. Press farther from center for a faster speed. Press toward the operator for forward direction and away from the operator for reverse direction.

  • Page 23: Push-Out Key/Hold-To-Run Backgauge Key

    6.0 Operation 6.9.4 Push-Out Key/Hold-To-Run Backgauge Key This key has 2 functions. It is used to move the backgauge forward 5 inches (or to the most forward position) and then return it to its previous position. This allows paper to be removed from the cutter without putting hands under the knife and clamp.

  • Page 24: Manual Backgauge Control

    6.11.1 Entering Math In the simple send mode, the Titan 200 is capable of calculating an entire math string such as, 10- 5+5x6+2_3/4. However, the result is limited to 29999.000 and the result cannot be a negative value. In the job mode, and during a send, the result of the calculation must be less than the backgauge limit...

  • Page 25: Entering Fractions

    6.0 Operation 6.11.2 Entering Fractions Fractions are entered with the priority add key X/Y. The symbol displayed when this key is pressed is the underline symbol “_”. This instructs the computer to add the fractional portion of the entry before performing the remaining math.
  • Page 26 Select Clear lube to reset the lube alarm after performing the lubrication requirements as shown in the Titan 200 Technical Service and Parts manual. Note: The number of cuts needed to set off the alarm is programmed at the factory and cannot be changed.

  • Page 27: Diagnostic

    6.0 Operation 6.12.3 Diagnostic The diagnostic area can be very helpful in locating a problem in the event of a machine malfunction. Use the up and down arrow keys to toggle to the desired selection, and press ENTER. See the following descriptions for an explanation of each.

  • Page 28: Language

    6.13 Job Mode The Titan 200 can be programmed for up to 99 different jobs or channels. A job is used for making a sequence of cuts using the send (or cut) values of the job as the backgauge positions for each cut.

  • Page 29: Creating A New Job

    6.0 Operation 6.13.4 Creating a New Job To create a new job, type in a number that is not already assigned to a job and press ENTER (entering a job number greater than 99 will create job #99). The cursor will move to the line corresponding to the number you typed in, prompting you for a job name.

  • Page 30: Editing An Existing Job

    6.0 Operation the new value will be inserted. If yes is selected, the last cut will be pushed into the first value of the next channel, although it will be displayed as value 100 of the current channel. If the next channel is locked, linking will not be allowed.

  • Page 31: Running A Programmed Job

    6.0 Operation 6.13.6 Running a Programmed Job To use an existing job for cutting, you must first open it by using one of two methods: move the cursor to the desired job with the arrow keys and press ENTER, or enter the job number with the keypad and press ENTER.
  • Page 32 6.0 Operation Now press ENTER to begin programming the job. The display should now look similar to the one shown next: 5.000 1> _ A) Insert C) Erase B) Job D) Exit 4. To enter the first send value of 8.5”, simply type in 8.5 and press ENTER. The cursor will move to the second line.

  • Page 33: Operating Tips

    6.0 Operation made, the backgauge will push out the stock and return to the first cut position, ready to repeat the current job. 6. Now lets lock the current job so it cannot be edited. First, exit back to job mode by pressing soft- key “B”...

  • Page 34: Knife Installation/Changing

    7.0 Knife Installation/Changing 7.0 Knife Installation/Changing Changing knives can be very dangerous unless safety precautions are observed and extreme care is taken when handling knives. • Make sure knife lifters are properly installed, see instructions following. • Keep handling of unprotected knives to an absolute minimum. •...
  • Page 35 7.0 Knife Installation/Changing Knife Adjusting Screws Figure 22 3. Remove the knife bolts from the two slotted knife bar holes and replace with the knife lifter assembly (Figure 23). Tighten the lifters to hold the knife in place, and then remove the remaining two knife bolts.

  • Page 36: Knife Installation

    7.0 Knife Installation/Changing 7.2 Knife Installation Knives are heavy and always very sharp! Be sure to keep the edge away from your body and keep other people out of the area while handling the blade. Severe lacerations or dismemberment could result from careless handling procedures. 1.

  • Page 37: Knife Care Tips

    7.0 Knife Installation/Changing Figure 25 14. Plug in the power cord and turn the power on. 15. Close the front guard (if equipped) and press CLEAR. This will raise the knife and clamp to the up position. 16. Turn the power off and disconnect the machine power cord. 17.

  • Page 38: Cutting Stick

    7.3.3 Bevel Angle Challenge recommends that bevel angles for the Titan 200 knives be in the range of 21° to 23° . In general, a 21° bevel angle will provide better cut quality when cutting soft paper (such as newsprint), recycled paper, or bound books.
  • Page 39 • Always keep knife bolts securely tightened. • Always use the heavy duty knife bolt washers provided by Challenge. Failure to do so could result in scratching or marring of the clamp face. • Store knives in a dry environment to prevent corrosion.
  • Page 40 7.0 Knife Installation/Changing NOTES:...

  • Page 41: Oil And Grease

    8.0 Oil and Grease 8.0 Oil and Grease Turn the power off and disconnect the power cord. Open the front guard (if equipped) and open the top hood for access. Parts requiring oiling are marked with red paint. See figures Figure 26 through Figure 33 starting on page 40 for oil and grease locations.
  • Page 42 8.0 Oil and Grease Figure 28 – Knife Bar Figure 29 – Knife Bar Link – L.H. Side, Lower Figure 30 – Knife Bar Link – R.S., Lower Knife Bar Knife Cylinder Bracket, Upper...
  • Page 43 8.0 Oil and Grease Figure 31 & Figure 32 –Clamp Guides Figure 33 – Leadscrew and Backgauge Guide...

  • Page 44: Titan 200 Floor Plan

    9.0 Titan 200 Floor Plan 9.0 Titan 200 Floor Plan 43000-FP...

  • Page 45: Safety Systems Test

    10.0 Safety Systems Test Machine manufacturer CHALLENGE Model TITAN 200 Serial Number __________________ Frequency of test: THESE TESTS SHOULD BE PERFORMED AT THE BEGINNING OF EACH WORK DAY. Turn the power on and press CLEAR to preset the backgauge. Make sure the knife and clamp are in the up position (if they are not, follow the instructions in this manual to send them up).
  • Page 46 10.0 Safety Systems Test Please enter date and initials for both tests. Date ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Test 1 ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Test 2 ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Date ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ Test 1 ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______...
  • Page 47 10.0 Safety Systems Test...
