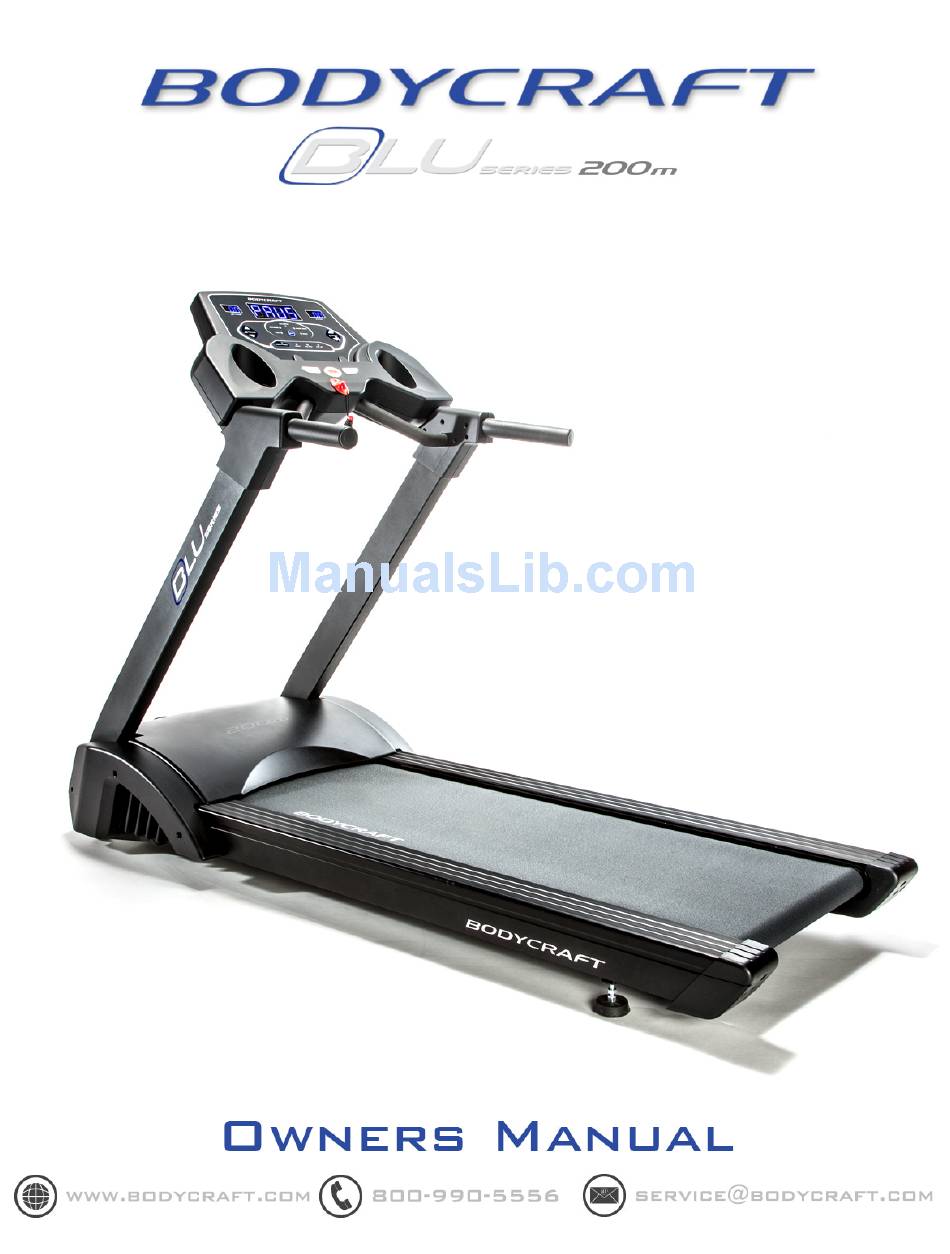

BodyCraft Blu series 200m Owner's Manual

Hide thumbs Also See for Blu series 200m:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blu series 200m and is the answer not in the manual?

Questions and answers

Related Manuals for BodyCraft Blu series 200m

Summary of Contents for BodyCraft Blu series 200m

  • Page 2: Before You Begin

    BODYCRAFT.com to view more ways to enhance your lifestyle Your BODYCRAFT BLU SERIES 200m has all the quality and design elements to make your workout extremely efficient and comfortable. Your console offers 3 display windows with easy to select programming buttons, plus a Polar®...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU BEGIN ....................1 TABLE OF CONTENTS ....................IMPORTANT INFORMATION ..................ASSEMBLY INSTRUCTIONS ..................Step 1: Upright Posts Assembly ..................Step 2: Console Assembly .................... Step 3: Handrail Assembly .................... Step 4: Tighten all bolt and screws ................. 6 Step 5: Handrail Cover Assembly .................

  • Page 4: Important Information

    • Never operate your treadmill if it has a damaged cord or plug, or if it is not working prop- erly. Contact your authorized BODYCRAFT Fitness dealer for service and repair. • Keep the power cord away from heated surfaces.
  • Page 5 Keep all air openings free of dirt and dust. • To ensure proper functioning of your treadmill, do not install attachments or accessories not provided or recommended by BODYCRAFT. • Place the treadmill in an area that will meet minimum clearance requirements: Front &...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Please take the assembly hardware out of the hardware package box. Lay all the hardware out and take note for its locations. Follow the assembly instruction step by step to complete the assembly. Do not tighten any screws until instructed. Step 1: Upright Posts Assembly 1.

  • Page 7: Step 4: Tighten All Bolt And Screws

    Step 4: Tighten all bolts and screws Step 5: Handrail Cover Assembly 1. Place the Left inner handrail cover onto the Left handrail and tighten this cover with two M5 x12mm screws using Phillips screw- driver. 2. Now place the outer handrail cover through the handrail and onto inner cover.

  • Page 8: Heart Rate Monitoring Devices

    HEART RATE MONITORING DEVICES Built in Wireless Heart Rate Receiver Note: Chest strap transmitter does not come with this unit; contact BODYCRAFT or your deal- er for purchase. This treadmill is equipped with a built-in receiver for your heart rate monitoring. Any telemetry strap that transmits at 5Khz is compatible.

  • Page 9: Console

    CONSOLE Glossary of Terms • Idle mode = Console is reset and waiting for an entry. The display will turn into a clock and display current time if you have set up in the beginning. Please see clock set up section for details. If no key input for 30 minutes, the console will enter sleep mode and the display will be shut off.
  • Page 10 • Reset: To reset a program during its operation, press and hold the “STOP” key for 2 sec- onds. When the program resets, the console returns to idle mode. • Pause a program: You may interrupt or pause a program for up to 30 minutes during a work- out before the console resets.

  • Page 11: Console Layout

    CONSOLE LAYOUT Displays: • Clock Set Up: The Data display acts as a clock during idle mode. Please run below procedures for initial or after power off to set up the clock function. Without going thru clock setting procedure, the display will stay showing “12:00” and clock function will not be activated. •...

  • Page 12: Function Keys

    • Workout Display: As soon as a program is started, it will start displaying the default workout data: time. You may select your favorite data displays by pressing the “SELECT” button, the LED indica- tor will light up to show which data is displaying. •...

  • Page 13: Workout Programs

    • Emergency key • Place the emergency clip onto your clothes properly before using treadmill. • Treadmill will not start unless the emergency key is properly engaged. • Pulling the emergency off the treadmill will result in power shut off and stop the treadmill immediately.

  • Page 14: Cool Down

    Adjustment • Speed = 2.0mph. Press Speed “UP/DOWN” key to adjust the speed from 0.5 — 3.5mph only. • Incline = 0%. Press Incline “UP/DOWN” key to adjust the incline from 0 — 10%. • “START” key can be pressed to skip the warm up and start the program immediately. Ending the Program •...

  • Page 15: Workout Summary

    Ending the Program • After 3 minutes, or when the Stop key is pressed, Cool Down will end and enter Workout Summary. See Workout summary for details. Pause, Reset or Re-start a program See Console Operating Tips section for details WORKOUT SUMMARY Getting Started For your convenience, this treadmill incorporates a Workout Summary right after the comple-...

  • Page 16: Quick Start

    QUICK START Getting Started A Quick Start program is for someone who wants to bypass the setup mode and start their workouts right away. By picking Quick Start program, you are accepting the default values for calculations. Be sure to include a Warm Up period during your workout since the Warm Up mode is skipped in the Quick Start program.

  • Page 17: Classic Programs

    CLASSIC PROGRAMS MANUAL PROGRAM Getting Started You can build your own program with Manual program. Be sure to include a Warm Up period during your workout since the Warm Up mode is skipped in the Manual program. Beginning the Program To begin this program, press “Classic Programs”...

  • Page 18: Hill Walk

    Data Display • When the program is started, the data display window will display Time as the default. • Press “Select” button to switch the data displays. • Time display will show the selected program time and count down. • Speed display will show default speed of 0.5 mph.

  • Page 19: Easy Jog

    • Or press “ENTER” to enter program setup mode. All three data windows will light up with default values. Please follow below steps to set up your personal data. (Same as Manual program setup) • Enter Age • Enter Weight •...
  • Page 20 Accepting Default values or Entering the program setting mode When the Easy Jog LED lights up, it indicates you are about to select the Easy Jog program: • Press “START” key to accept current default values and begin Easy Jog program workout. •...

  • Page 21: Warranty

    • If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it with- out cost for parts. Shipping and handling charges may apply. (BODYCRAFT may request a return of the part(s) or photographic evidence of the damaged part(s) prior to replace- ment at the owner’s expense).

  • Page 22: Maintenance

    Here are some of the tips for deck lubrication: • Wipe entire deck surface with a clean, lint free cloth. • Lubricate deck with the BODYCRAFT Lubrication Kit (which can be purchased through your BODYCRAFT website.) • Follow the instructions as specified in the Lubrication Kit.
  • Page 23 1/4 turn. Restart the treadmill and run it at 5 mph / 8 kph for 1 to 2 minutes to insure the belt will stay in the center. Repeat the procedure if necessary. If noises develop or malfunctions occur, contact your authorized BODYCRAFT fitness dealer.

  • Page 24: Service Parts List

    SERVICE PARTS LIST ID CODE DESCRIPTION 2MEN LEAD WIRE ASS'Y, 200m 2HXG WHEEL SET/pair, 200/400/800m 2SR3 END CAP SET (L & R), 200/400/800m 2SR5 FRONT COVER, 200/400/800m 2SR6 SIDE COVER, LEFT, 200/400/800m 2SR7 SIDE COVER, RIGHT, 200/400/800m 2SQX CONSOLE MAST COVER ASS'Y, LEFT, 200m 2SQY CONSOLE MAST COVER ASS'Y, RIGHT, 200m 2HX8...

  • Page 25: Service Parts Drawing

    SERVICE PARTS DRAWING...
  • Page 26 SERVICE PARTS DRAWING...
