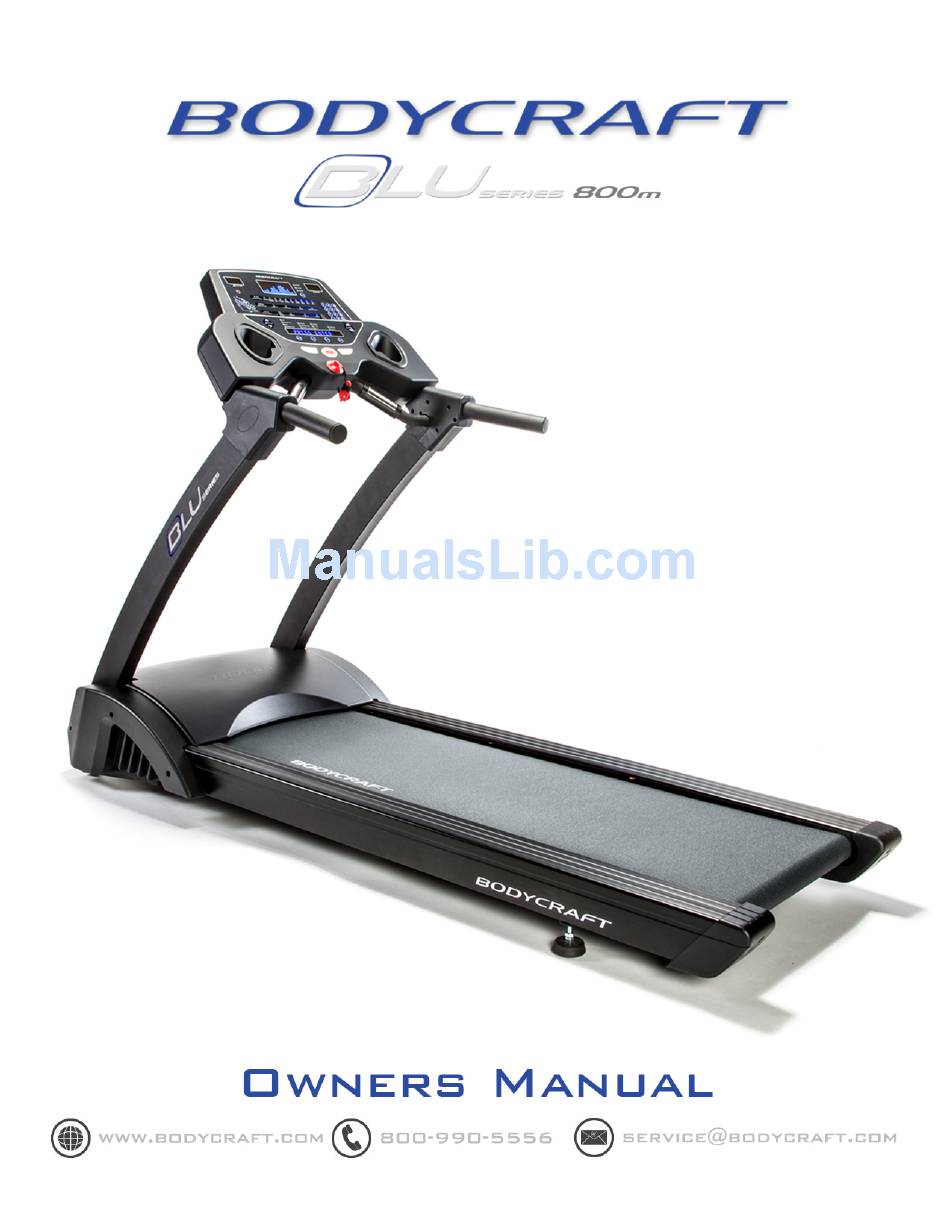

BodyCraft Blu series 800m Owner's Manual
  1. Manuals
  2. Brands
  3. BodyCraft Manuals
  4. Treadmill
  5. Blu series 800m
  6. Owner's manual

BodyCraft Blu series 800m Owner's Manual

Hide thumbs Also See for Blu series 800m:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blu series 800m and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BodyCraft Blu series 800m

Summary of Contents for BodyCraft Blu series 800m

  • Page 2: Before You Begin

    BODYCRAFT offers a complete array of high quality fitness equipment. Please refer to our web site at BODYCRAFT.com to view more ways to enhance your lifestyle Your BODYCRAFT BLU SERIES 800m has all the quality and design elements to make your workout extremely efficient and comfortable. Your console offers ten display windows with easy to select programming buttons, plus a Polar®...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU BEGIN ....................1 TABLE OF CONTENTS ....................IMPORTANT INFORMATION ..................ASSEMBLY INSTRUCTIONS ..................Step 1: Upright Posts Assembly ..................Step 2: Console Assembly .................... Step 3: Handrail Assembly .................... Step 4: Tighten all bolts and screws ................6 Step 5: Handrail Cover Assembly .................

  • Page 4: Important Information

    • Never operate your treadmill if it has a damaged cord or plug, or if it is not working prop- erly. Contact your authorized BODYCRAFT Fitness dealer for service and repair. • Keep the power cord away from heated surfaces.
  • Page 5 Keep all air openings free of dirt and dust. • To ensure proper functioning of your treadmill, do not install attachments or accessories not provided or recommended by BODYCRAFT. • Place the treadmill in an area that will meet minimum clearance requirements: Front &...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Please take the assembly hardware out of the hardware package box. Lay all the hardware out and take note for its locations. Follow the assembly instruction step by step to complete the assembly. Do not tighten any screws until instructed. Step 1: Upright Posts Assembly 1.

  • Page 7: Step 4: Tighten All Bolts And Screws

    Step 4: Tighten all bolts and screws Step 5: Handrail Cover Assembly 1. Place the Left inner handrail cover onto the Left handrail and tighten this cover with two M5 x12mm screws using Phillips screwdriver. 2. Now place the outer handrail cover through the handrail and onto inner cover.

  • Page 8: Heart Rate Monitoring Devices

    HEART RATE MONITORING DEVICES Built in Wireless Heart Rate Receiver Note: Chest strap transmitter does not come with this unit; contact BODYCRAFT, or your dealer for purchase. This treadmill is equipped with a built-in receiver for your heart rate monitoring. Any heart rate telemetry strap that transmits at 5Khz is compatible.

  • Page 9: Console

    CONSOLE Glossary of Terms • Idle mode = Console is reset and waiting for an entry. The dot matrix display window will show “BC” and message display will scroll following a message of ”SELECT A PRO- GRAM OR PRESS START”. If no key input for 30 minutes, the console will enter sleep mode and the dis play will be shut off.
  • Page 10 • Reset: To reset a program during its operation, press and hold the “STOP” key for 2 sec- onds. When the program resets, the console returns to idle mode. • Pause a program: You may interrupt or pause a program for up to 30 minutes during a work- out before the console resets.
  • Page 11 • HR adjustment: During HR interactive program, you may press UP/DOWN key or numer- ic quick keys to adjust the HR setting during program set up mode. Numeric quick keys can not be accessed to adjust HR setting during program run mode. •...

  • Page 12: Console Layout

    CONSOLE LAYOUT Displays: • Dot Matrix/Profile display: It displays instruction letters during setup. • For Classic programs, there are three profiles you can select: Speed pro file, Incline profile & Track profile. Press the “SELECT” key next to dot matrix window to switch the profile display from default profile to the selected profile and light up its LED indicator.

  • Page 13: Function Keys

    accumulated. Each dot represents 1mi/32. See the representation below. Your progress will be shown with a flashing dot. Progress will start at the lower center and proceed counter clockwise. When it reaches 1mile, the dot track will be com- pleted. •...
  • Page 14 • After age, weight, time.. adjustment, press “ENTER” key to accept your entry. • Start key: • Press “START” to start a program during program setup. • Press “START” key to skip Warm up and enter program executing. • Press “START” to re-start a program during Cool Down, workout summary mode. •...

  • Page 15: Workout Programs

    WORKOUT PROGRAMS BELT START SEQUENCE Belt start sequence is designed with your safety in mind. It is an indication to let you know that the treadmill motor is about to start and be prepared. Anytime the treadmill is ready to start, the belt start sequence will appear as below: •...

  • Page 16: Cool Down

    Ending the Warm Up • After 3 minutes, or the Start key is pressed, Warm Up will end and the program will exe- cute. • There will be a beep sound to indicate the Warm up is over and the selected program begins.

  • Page 17: Workout Summary

    WORKOUT SUMMARY Getting Started For your convenience, this treadmill incorporates a Workout Summary right after the comple- tion of the Cool Down. It will display the total workout data for 3 minutes before the Console resets. Beginning the Program Workout Summary appears as soon as the Cool Down mode ends or a “STOP” key is pressed during Cool Down mode.

  • Page 18: Quick Start

    QUICK START Getting Started A Quick Start program is for someone who wants to bypass the setup mode and start their workouts right away. By picking Quick Start program, you are accepting the default values for calculations. Be sure to include a Warm Up period during your workout since the Warm Up mode is skipped in the Quick Start program.

  • Page 19: Classic Programs

    CLASSIC PROGRAMS There are 10 Classic programs for selection. Each program has similar setup process. There are preset speed, incline as well as track programs. Follow the instruction listed below to se- lect and setup the desired program to begin exercise. Program Names MANUAL PROGRAM You can build your own program with Manual program.
  • Page 20 EASY JOG The Easy Jog program is designed for a beginner who just started running. It varies speed throughout the program to help you accustomed to running. You can gradually increase the speed or incline over time when you improve. GLUTE TONER The program is designed to tone your Glutes it includes a preset speed profile and a preset incline profile, plus message display prompts indicate when to...
  • Page 21 Beginning the Program During idle mode, the message display scrolls” SELECT A PROGRAM OR PRESS START” messages, to begin this program, press “Classic Programs” key until “Fast Track” program LED indicator lights up. Accepting Default values or Entering the program setting mode When the message display flashes the program name, “PRESS ENTER”, it indicates you are about to select the particular program.

  • Page 22: Hr Interactive Programs

    Adjustment • Press Speed ”UP/DOWN key or numeric quick key to adjust the speed from 0 – 12mph. The speed display will update the current & future speed and the dot matrix window will update the profile accordingly. • Press Incline “UP/DOWN” key or numeric quick key to adjust the incline from 0 -15%. The incline display will update the current &...
  • Page 23 Program Names TARGET HR The Target Heart Rate program is designed to keep you train- ing at your chosen heart rate level. Computer will adjust the speed automatically to ensure the target heart rate is achieved and maintained during the entire program. HR INTERVALS The Heart Rate Intervals program is designed to alternate peri- ods of hard work (Work phase) with periods of easy work (Rest...
  • Page 24 Beginning the Program During idle mode, the message display scrolls” SELECT A PROGRAM OR PRESS START” messages, to begin this program, press “HR Interactive” key until “Target HR” program LED indicator lights up. Accepting Default values or Entering the program setting mode When the message display flashes the program name, “PRESS ENTER”, it indicates you are about to select the Target HR program.
  • Page 25 • If there is a valid pulse, the Heart rate display will show the actual pulse reading. Target HR program adjustment: • Computer will adjust the speed to achieve your Heart rate goal; therefore speed can not be adjusted during program run mode. Press Speed ”UP/DOWN” key will adjust the tar- get HR goal.

  • Page 26: Custom Programs 1, 2, 3, 4

    CUSTOM PROGRAMS 1, 2, 3 & 4 These programs are designed to be user-friendly tools. You can build your own programs and save them for later workout. With this function, you will be able to call up your favorite pro- gram, which stores all of your accurate user information, and begin your exercise right away.

  • Page 27: Cardio Coach

    CARDIO COACH BODYCRAFT is working hard to make your training easy. With Cardio coach, the computer will calculating the calories you will burn or distance you will run before you even start your program! You will be able to see the figures before your workout. It depends on what you are training on, you can adjust your speed or distance or time to get to your training goal in no time.
  • Page 28 • The data display will light up Speed, Time & Distance LED indicators and dis play their data. • Time display will blink and wait for your entry. Distance display will blink next. Speed dis- play will blink the last. •...

  • Page 29: Warranty

    • If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it with- out cost for parts. Shipping and handling charges may apply. (BODYCRAFT may request a return of the part(s) or photographic evidence of the damaged part(s) prior to replace- ment at the owner’s expense).

  • Page 30: Maintenance

    Here are some of the tips for deck lubrication: • Wipe entire deck surface with a clean, lint free cloth. • Lubricate deck with the BODYCRAFT Lubrication Kit (which can be purchased through your BODYCRAFT website.) • Follow the instructions as specified in the Lubrication Kit.
  • Page 31 1/4 turn. Restart the treadmill and run it at 5 mph / 8 kph for 1 to 2 minutes to insure the belt will stay in the center. Repeat the procedure if necessary. If noises develop or malfunctions occur, contact your authorized BODYCRAFT fitness dealer.

  • Page 32: Service Parts List

    SERVICE PARTS LIST ID CODE DESCRIPTION 2HXG WHEEL SET/pair, 200/400/800m 2SR3 END CAP SET (L & R), 200/400/800m 2SR5 FRONT COVER, 200/400/800m 2SR6 SIDE COVER, LEFT, 200/400/800m 2SR7 SIDE COVER, RIGHT, 200/400/800m 2HY3 ELASTOMERS (6pcs), 200/400/800m 2HY4 SIDERAIL GUIDE SCREWS (8PCS), 200/400/800m 2HY5 BELT TENSION SCREW, 200/400/800m 2HX6...

  • Page 33: Service Parts Drawing

    SERVICE PARTS DRAWING...
  • Page 34 SERVICE PARTS DRAWING...
