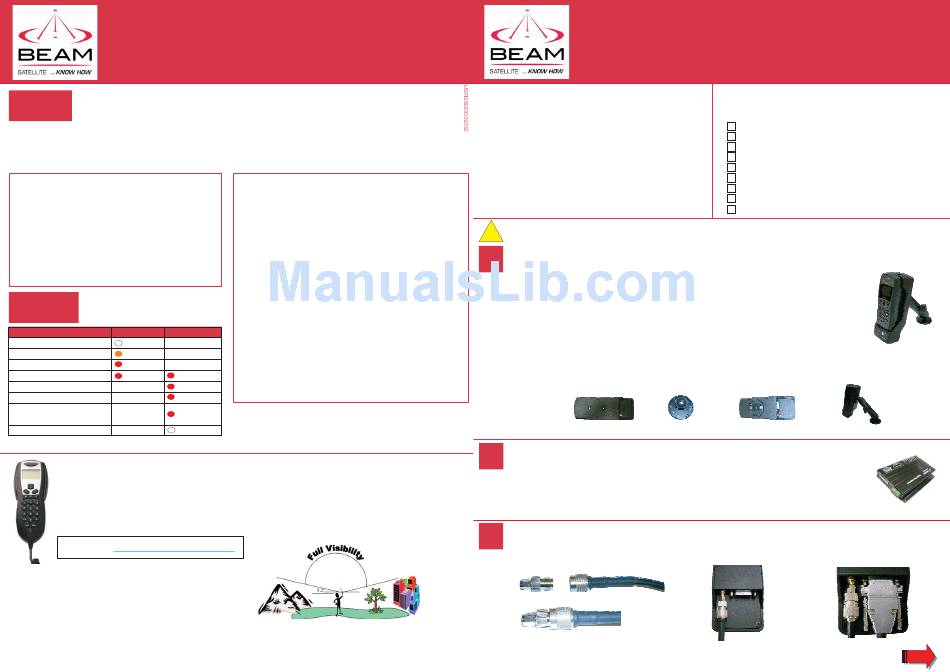

Beam SatDOCK RST980 Quick Start Manual

Checking performance after installation:
TiPS
To confirm your SatDOCK is working properly:
1. Make a call from the handset in the cradle and confirm operation.
2. Make a call to the handset and confirm operation.
3. NOTE: The HFI controls operation (turning On and Off) of the 9505A handset. Please ensure the
9505A is off before applying key accessories. The HFI will then automatically power on the 9505A and
SatDOCK after 6 seconds.
Installation guidelines:
> Always protect equipment from dirt and moisture
> Ensure mounting surfaces are strong
> Allow for cooling space & driver/passenger leg room
> Ensure all wires are secure
> Always use the supplied mounting hardware.
> Ensure removal is easy (as above)
Note: Only qualified people should install
communication equipment. F or vehicle air bag
information c ontact the vehicle manufacturer.
LEDs
State
Charge LED Mute LED
Handset is fully charged (Off)
Handset is charging
(Solid)
Charging Error
* (Solid)
Handset absent
(Solid) (Flashing - Slow)
Mute Mode
(Solid)
Privacy Mode (Flashing - Slow)
Incompatible handset /
(Flashing - Fast)
Connection Error
Normal Handsfree Mode
(Off)
*Eg. Unsafe ambient temperature for charging
Intelligent Handset (Optional)
This Intelligent Handset enables you to make private phone calls without using the hands-free functionality.
The Intelligent handset is easily connected to the RJ45 socket located on the HFI. The unit must be powered
off before connecting. An extension cable to the Intelligent handset can be sourced and used if required.
More info @ www.beamcommunications.com
Optimising Iridium performance
Iridium is a line-of-sight Satellite network, conditions that can
compromise the quality of the service you may receive include:
1. Obstructions:
Provide the best satellite view for your antenna by removing all obstructions where possible
2. Cabling : Use the shortest cable length and the fewest number of connectors on all Iridium certified antenna cable runs
3. RF Interference
: Install antenna as far away from other transmitters as possible.
Beam Communications Pty Ltd
8 Anzed Court, Mulgrave
Victoria, Australia, 3170
T: +61 3 8851 0400
F: +61 3 9560 9055
E: info@beamcommunications.com
W: www.beamcommunications.com
Routing Cables:
Use wiring troughs when available, to simplify cable
installation and to provide maximum protection for cables.
If wiring troughs are not available, route cables
carpet alongside the drive shaft hump and follow
guidelines:
> Route cables so they are protected from pinching, sharp
edges, and crushing
> Where possible, avoid routing cables above the catalytic
converter
> Use grommets wherever a cable must pass through a hole
in a metal panel
> In a vehicle equipped with electronically controlled anti-skid
brakes (ABS), route all cables on the opposite side of the
vehicle from the braking modulator box to minimize any
possible interference.
> Keep all in-line connectors accessible.
:
SatDOCK
RST980
Thank you for purchasing the BEAM SatDOCK
T his QuickStart Guide lists the installation steps:
1. Installing your SatDOCK
2. Installing your Interface box (HFI)
3. Installing the antenna cable & interface cable
4. Install your directional microphone
5. Install your speaker
6 .Installing your external Iridium Antenna
7. Connecting power
8. Docking & Undocking your 9505A handset
9. Mute Function & Privacy Mode
under the
these
!
Note: The SatDOCK will only work with a 9505A handset. Do not use the older 9505 handset.
1 Installing your SatDOCK
When selecting an installation location, please consider:
> Each mounting surface is strong enough to support the
> Mount the handset within easy reach of the driver during normal vehicle operation.
> Ensure that the SatDOCK
> Position the SatDOCK
Passenger seating/leg space.
> Allow room to easily dock and undock the
> Allow room for interface
The SatDOCK can be mounted directly to a flat surface by means of the bolting holes at the rear, or to a RAM
bracket. To connect the RAM bracket, bolt one of the pivot bases to a convenient place in your vehicle as per
the above considerations, then bolt the other pivot base to the back of the SatDOCK using the 2 supplied M4
screws :
Back of SatDOCK
Installing your Interface box (HFI)
2
The best location for mounting the HFI Adapter Box is under the dashboard or front seat within
reaching distance of the 9505A handset when in the SatDOCK.
To install the box, follow these steps:
1. Using the Hands Free Interface as a template, mark the screw hole locations.
2. Remove the bracket, and drill holes at the marked locations.
3. Mount using the six screws provided with the fuse kit.
Connecting the Antenna Cable & Interface Cable
3
In your package you should have received a TNC to SMA adapter for the antenna cable. Firmly fasten this onto the
antenna cable, and screw onto the SMA connector on the rear of the SatDOCK.
Plug the interface cable onto the back of the SatDOCK and fasten both thumb screws to keep it secure.
1. Connect TNC/SMA adapter to cable
Package Contents
Before commencing installation ensure your package
has the following components:
1 x SatDOCK Docking Station
1 x Hands Free Interface (HFI) module
1 x Speaker
1 x Microphone
1 x Interface Cable (from
1 x 3-wire power cable harness & 2 Fuses
1 x "Iridium Antenna Guide" (printed)
1 x RAM bracket / 2 x M4 Screws
1 x SMA / TNC Adapter
SatDOCK or RAM bracket
is within reach of the interface unit (HFI).
and cables as to not interfere with vehicle operation
into from the SatDOCK.
handset /
and antenna cables to connect to the base of the SatDOCK
Pivot base Pivot base bolted on
2. Fix antenna cable to SatDOCK
Quick
Start
Guide
HFI to SatDOCK)
,
the driver or
Finished result
HFI
3. Connect interface cable
