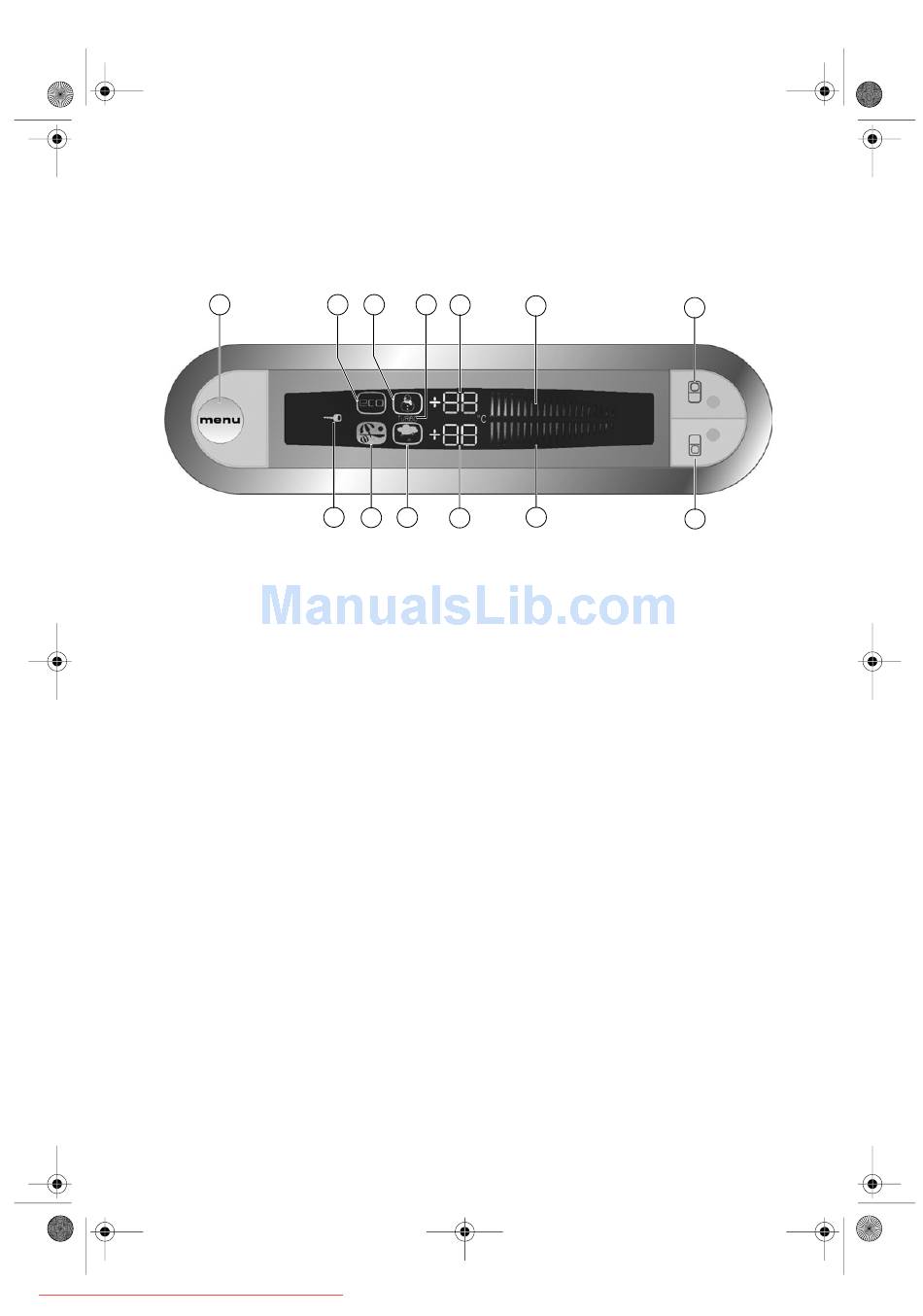

DISPLAY PANEL

1. MENU BUTTON
Press this button to choose the Economy,
Holiday, Turbo, Super Freezing and Super
Cooling modes
2. ECONOMY MODE
When the economy mode is selected this
symbol will light
3. SUPER FREEZING MODE
When the super freezing mode is selected this
symbol will light
4. TURBO MODE
When the super freezing and super cooling
modes are selected at the same time, this
symbol will light
5. FREEZER COMP. TEMPERATURE
DISPLAY
6. FREEZER COMP. TEMPERATURE
SETTING
Shows the temperature of the freezer
compartment
7. FREEZER COMP. TEMPERATURE
BUTTON
Press this button to set the freezer
compartment temperature
Downloaded from Fridge-Manual.com Manuals
1
2
3
8
9
4
5
6
10
12
11
8. CHILD LOCK FUNCTION
When the freezer and refrigerator buttons are
pressed at the same time, the child lock
function will be activated and the lock symbol
will light
9. HOLIDAY MODE
When the holiday mode is selected this symbol
will light
10. SUPER COOLING MODE
When the super cooling mode is selected this
symbol will light
11. REFRIGERATOR COMP. TEMPERATURE
DISPLAY
12. REFRIGERATOR COMP. TEMPERATURE
SETTING
Shows the temperature of the refrigerator
compartment
13. REFRIGERATOR COMP. TEMPERATURE
BUTTON
Press this button to set the refrigerator
compartment temperature
