63602026GB.fm Page 46 Wednesday, August 29, 2007 5:37 PM

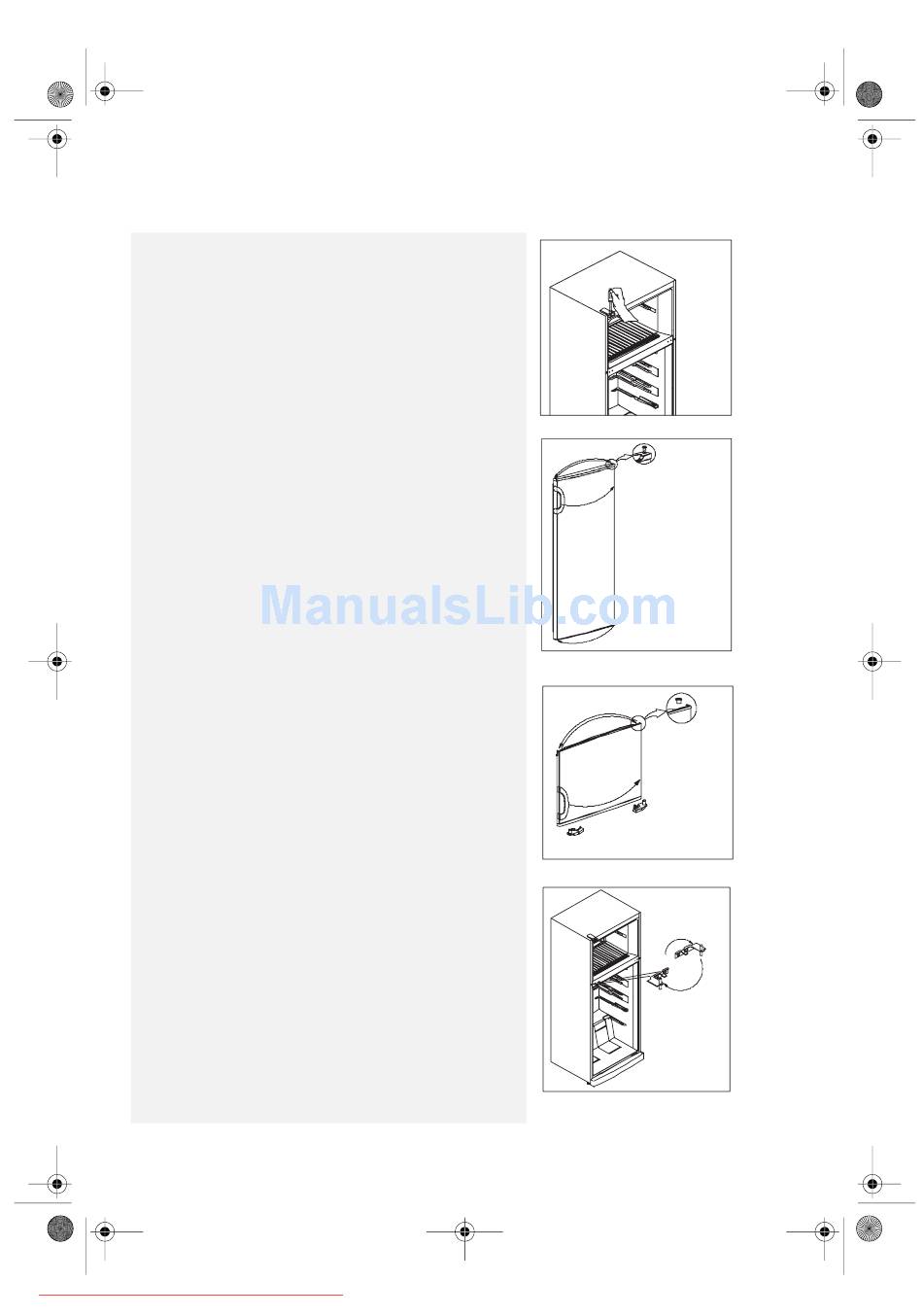

6. Assemble the top hinge and hinge cover on the left side. (FIG-6)
7. Replace the top bushing and top bushing cap.
(FIG-7) (You can use the bushing cap that is put in the user
manual bag)
Remove the bottom bushing and bottom stopper and assemble
it to the left side. (FIG-7)
7.1Remove the door handle caps. Unscrew the screws that are
fixing the door handle. Assemble door handle to the right side
by doing the reverse operation. (FIG-7/Detail-A)
(only for New Emotion design)
8. Remove the top bushing and insert it into left hole. Remove the
right door catcher and assemble the left door catcher (which is
put in the user manual bag) to the left. (FIG-8)
8.1Remove the door handle caps. Unscrew the screws that are
fixing the door handle. Assemble door handle to the right side
by doing the reverse operation. (FIG-8/Detail-A)
(only for New Emotion design)
9. Turn the middle hinge 180º. Assemble the freezer door and
refrigerator door together with middle hinge (Reverse
operation of item 2)
Fix the middle hinge by tighting the screws.
Finally, by using a knife cut left side of the kick plate and
assemble it. (FIG-9)
46
Downloaded from Fridge-Manual.com Manuals
Figure-6
DETAIL-A
REFRIGERATOR
DOOR
Figure-7
FREEZER
DOOR
DETAIL-A
Right catcher
Left catcher
Figure-8
Turn the
middle hinge
180°
Figure-9
